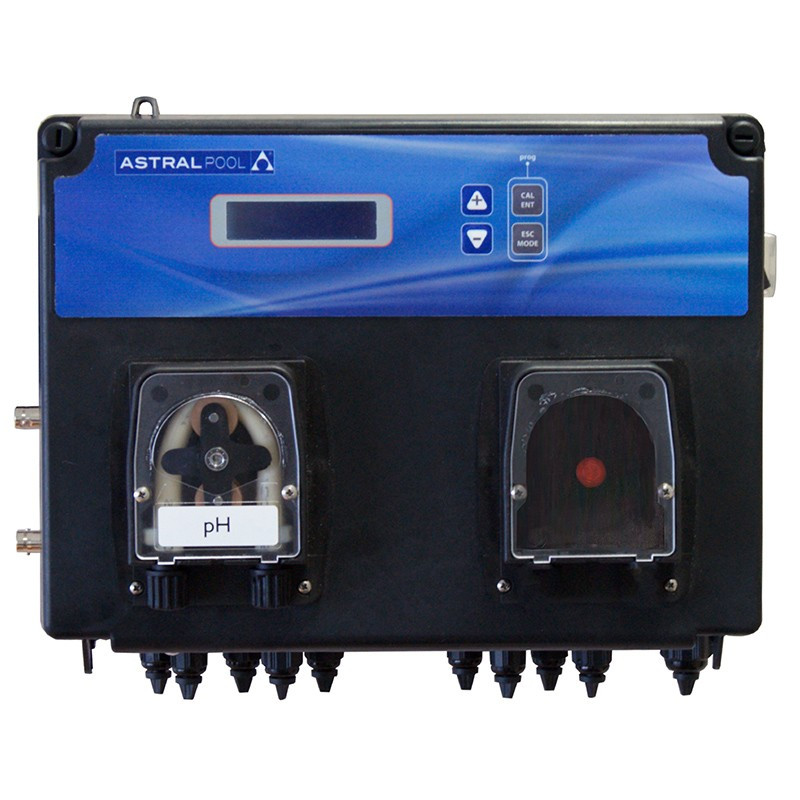

Control Basic Dual PH-ev Plus AstralPool

The equipment of control and dosing Control Basic Dual pH-EV Plus AstralPool is designed for the regulation automatic of the levels of pH and Redox (ORP) in pools and spas. This equipment is essential for its installation conjunta with systems of salt chlorination or of pastillas. features of a control preciso and constant of the pH and Redox, ensuring a water optimum quality in domestic pools and spas.

The equipment is available in two versions: a for pools with a capacity of up to 1,5 l/h and other for spas with a capacity of 0,4 l/h.

Features and benefits of the Control Basic Dual pH-EV Plus of AstralPool

•

• Control automatic: Controls automaticaly the levels of pH and Redox (ORP), it that facilitates the water maintenance quality without the need for intervention Manual constant.

• Compatibility with Fluidra Connect: The equipment ahora is compatible with the plataforma Fluidra Connect, it that allows its control remote and monitoreo via applications mobile.

• Rango of measurement: The system measures the pH in a range of 0 a 14 and the Redox (ORP) of 0 a 1000 mV, providing a control preciso of ambos parameters.

• Kit of complete installation: includes all the elementos necesary for a quick and simple installation, including sensores of pH and Redox, portasondas, solutions of calibration, pipes of suction and discharge, and racores connection.

• Housing resistant: The equipment is mounted in a box in ABS of high resistance with protection IP65, it that ensures a durability optimum and resistance a conditions environmental adversas.

• Display screen Digital: The display screen Digital muestra claraly the valuees of pH, Redox (ORP) and temperature (with sensor opcional PT100), allowing a Reading easy and precisa.

• Inlet of paro/operation remote: Allows the control remote of the operation of the equipment (230 VCA), keeping the display screen encendida during the calibration and programation.

• Relay of alarma: The equipment includes a relay of alarma for alertar on any desviation in the valuees of pH or Redox, ensuring a respuesta inmediata ante any anomalía.

• Regulation proportional: The equipment allows programme the function of control in ON/OFF or proportional (ideal for electrovalves), dependiendo of the dispositive connected, providing flexibility in the control.


Technical Specifications Generales of the Control Basic Dual pH-EV Plus of AstralPool

•

• System of control and dosing automatic: Control automatic of pH and Redox (ORP), ideal for its use in pools and spas with systems of salt chlorination or of pastillas.

• Rango of measurement:

  •

  • pH: 0 a 14

  • Redox (ORP): 0 a 1000 mV




• Kit installation: includes electrode of pH, electrode of Redox, portasondas, solutions pattern of calibration, pipes of suction and discharge, and racores of suction and discharge.

• Housing: Box in ABS with protection IP65 for resistir conditions adversas.

• Display screen Digital: Visualization of valuees of pH, Redox (ORP) and temperature (sensor PT100 opcional).

• Inlet of paro/operation remote (230Vca): Allows keep the display screen encendida during the calibration and programation of the equipment.

• Inlet of level of product chemical: to control and monitoreo of the levels of the product chemical utilized.

• Relay of alarma: For alertar on any fault in the parameters of pH or Redox.


Instructions of Use of the Control Basic Dual pH-EV Plus of AstralPool

1.

2. Installation of the equipment:

   •

   • Instale the equipment in a ubication Accessible and cercana to the system of cloration (whether salt water or of pastillas).

   • Conecte the sensores of pH and Redox in its respective ubications in the filtration system.

   • Conecte the pipes of suction and discharge and the racores connection depending on the esquema installation proporcioned.

   • Realice the connections electrical, Ensuring of which equipment this connected a fountain of energy of 230 VCA.




3. Calibration:

   •

   • Before of use the equipment, realice a calibration inicial utilizando the solutions pattern of pH 7 and pH 10 that includes in the kit.

   • The calibration must hacer siguiendo the instructions in display screen, ajustando the valuees up to which sensores of pH and Redox are Correctly calibred.




4. Configuration of the parameters:

   •

   • Seleccione the modo of control (ON/OFF or proportional) depending on the type of dispositive of cloration connected.

   • Defina the point of consigna for the pH and Redox depending on the valuees deseed for your pool or spa.

   • If is utilizando a salt chlorinator, conecte the equipment to the relay of salt chlorination for activar automaticaly the production of chlorine.




5. Monitoreo:

   •

   • Revise regularly the display screen Digital for monitorear the valuees of pH, Redox (ORP) and temperature.

   • If the valuees desvían of the parameters establecidos, the equipment activará a alarma for advertirle on the problema.





Available models of the Control Basic Dual pH-EV Plus of AstralPool

•

• Control Basic Dual pH-EV Plus 1,5 l/h: Ideal for pools of greater size and systems of salt chlorination or of pastillas.

• Control Basic Dual pH-EV Plus 0,4 l/h Spa: Suitable for spas or small pools, with the them features and benefits.


Accessories Opcionales for the Control Basic Dual pH-EV Plus of AstralPool

•

• Sensor of temperature PT100: For the measurement precisa of the temperature of water.

• Support installation: Facilitates the installation of the equipment in pools and spas.
