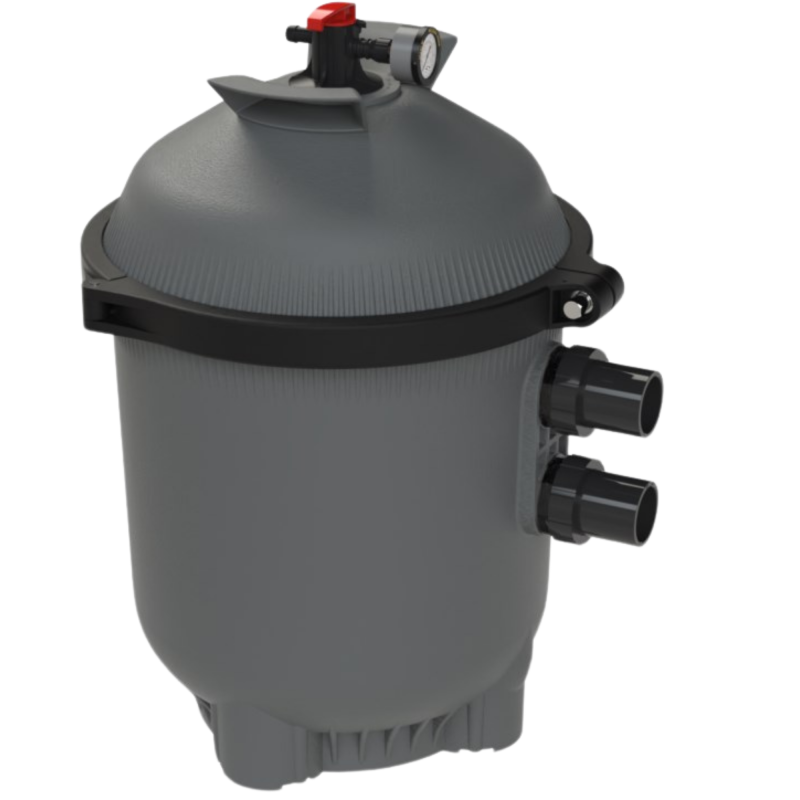

Filter Multicartucho Emaux Galaxy icf430 Ø648 mm
Referencia: 000FP0041
The Filters Multicartucho Galaxy ICF have been designed to provide a filtration excepcional with high-quality materials and high resistance to the corrosion. Thanks to its wide filtration capacity, capturan effectively the Impurities, ensuring clean water and crystal-clear. Its practical design and sostenible the makes in an ideal option for pools of use domestic and comercial.
- System eco-friendly: Reduces the consumption of water to the remove the need of retrolaved.
- Easy maintenance: The cartridges limpian easily with a hose.
- Pressure Gauge integrated: Indicates when is point of carry out the cleaning.
- seal of access quick: Clamp of opening quick that facilitates the revision of the filter.
- Valve of drain: Allows drenar the system of way quick and efficient.
- Compatibility universal: Connections standard of Ø 50/63 mm for an easy installation.
- robust structure: Base and body in a single part for greater stability and durability.
The range of Filters Multicartucho Galaxy ICF is designed to offer the mejor performance of filtration of the market. Manufactured with durable materials and resistant to corrosion, these filters feature with a area of filtration upper that allows a retention optimum of dirt. Its design eco-friendly and of easy maintenance the hace ideal both for residential pools as commercial.
Key Features of the Filters Multicartucho Galaxy ICF of SCP
- Design eco-friendly: Savings significative of water to the not requerir backwash a counter-current.
- Easy maintenance: simple cleaning of the cartridges with a hose.
- Pressure Gauge inteligent: Indicates the need of cleaning.
- Clamp of seal of opening quick: Facilitates the access to the tanque.
- Valve of drainage: Allows a drain quick.
- Connections standard and universal: Coupling of Ø 50/63 mm.
- Base and body as a single piece: Greater resistance and stability.
Comparison Table of Models of the Filters Multicartucho Galaxy ICF of SCP
| Model | Reference | Maximum Flow Rate (m³/h) | Area of filtration (m²) | Speed of Flow (m³/h/m²) | Diameter (mm) |
|---|---|---|---|---|---|
| ICF230 | EMX-050-0072 | 19,6 | 21,37 | 0,916 | 648 |
| ICF330 | EMX-050-0074 | 28,1 | 30,66 | 0,916 | 648 |
| ICF430 | EMX-050-0073 | 34,1 | 39,95 | 0,852 | 648 |
Dimensions Technical (mm) of the Filters Multicartucho Galaxy ICF of SCP
| Model | Reference | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| ICF230 | EMX-050-0072 | 829 | 648 | 556 | 504 | 462 | 317,5 | 444,5 |
| ICF330 | EMX-050-0074 | 886 | 648 | 556 | 504 | 462 | 317,5 | 444,5 |
| ICF430 | EMX-050-0073 | 1035 | 648 | 556 | 504 | 462 | 317,5 | 444,5 |
Benefits of the Filters Multicartucho Galaxy ICF of SCP
- Greater efficiency: Filtration precisa and of high capacity.
- Reduction of the consumption of water: Not requires retrolaved, ahorrando recursos.
- Easy installation: Connections standard Ø 50/63 mm.
- High durability: Robust construction in a single part.
- Indicador of pressure: Control in time real of the condition of the filter.
Recomendations of Use of the Filters Multicartucho Galaxy ICF of SCP
- Vigilar the pressure gauge for saber when clean the cartridges.
- Lavar the cartridges with a hose when the pressure gauge it indique.
- use cartridges of spare part original for greater efficiency.
- carry out the drened before of the winter to prevent damage.
Frequently Asked Questions on the Filters Multicartucho Galaxy ICF of SCP
- Which are the benefits of the filters of cartridge on the of sand?
- Greater Precision of filtration, lower consumption of water and maintenance more simple.
- Each how much must clean the cartridges?
- When the pressure gauge indique a aumento of pressure upper a it normal.
- Is compatible with any type for pools?
- Yes, is suitable both for residential pools as commercial.
- As install the filters Galaxy ICF?
- connect to the pipes standard of Ø 50/63 mm and require a space suitable for maintenance.
Referencia:
EMX-050-0072
Filter Multicartucho Emaux Galaxy icf430 Ø648 mm
€599.00
Referencia:
EMX-050-0074
Filter Multicartucho Emaux Galaxy icf430 Ø648 mm
€639.00
Referencia:
EMX-050-0073
Filter Multicartucho Emaux Galaxy icf430 Ø648 mm
€695.00
