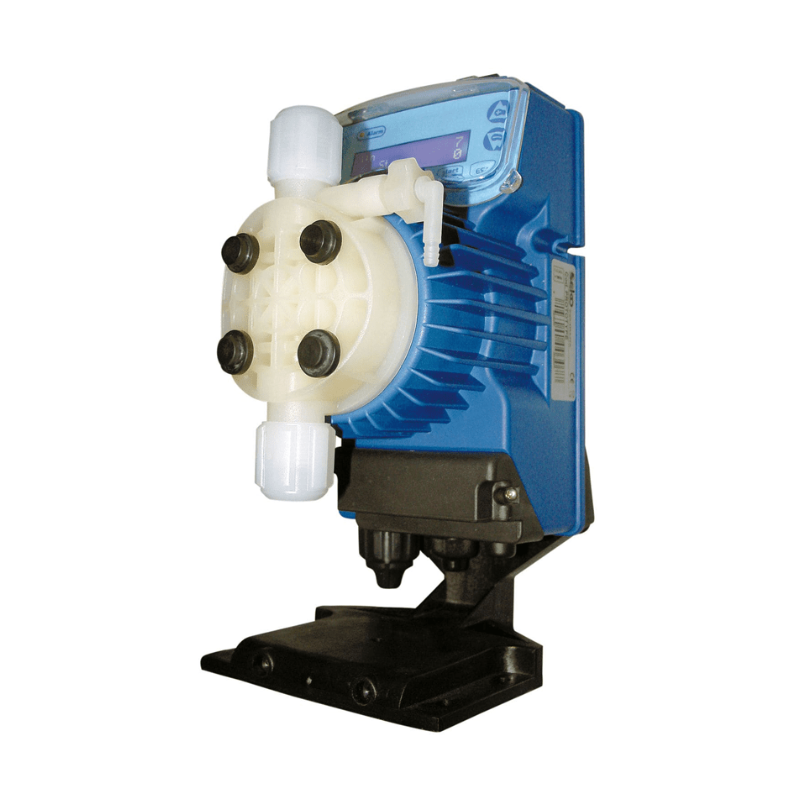

SEKO Tekna TCK Electromagnetic Dosing Pump
SEKO
Referencia: 000BD0006
Tekna is a of the ranges of pumps electromagnetic (driven for solenoide) of montaje in wall more extendidas, conocidas and aprecied of the mundo, a range that has Evolved a it length of the years thanks to the opiniones of miles of users of all the mundo. The series offers multiple models, with interfaces analogue and digitales, with dosing constant or proportional, capaces of satisfacer any need installation and of offer a solution reliable and effective in any situation.
- Pump Digital with flow rate adjustable manually or timed
- Maximum of 10 temporizations semanales
- Relay programable timed with activation of contact dry
- includes a kit installation standard in PVDF: valve of injection-moulded and valve of suction in PVDF, tube of suction in PVC, tube of discharge of PE and support of wall
Tekna TCK is a dosing pump Digital with flow rate constant that can be adjusted manually or controlarse for temporizador with a relay timed programable. The Shower Head of the pump standard is in PVDF, it that offers a high compatibility chemical with various Shower Heads liquid and is available in PVC low pedido. The pump supplied with a kit installation standard complete, that includes filter of pie and valve of injection-moulded in PVDF, tube of suction in PVC and tube of entrega of PE.
why buy the pump Tekna TCK for dosing of product in pools?
The series Tekna is a range of dosing pumps driven for solenoids with analogue or digital range with dosing constant or proportional. These dosing pumps multifunctional ensure high performance for the chosen applications chosen and provide high reliability ensuring the compatibility chemical in the parts wet.
Features of the pump Tekna TCK of SEKO
- Pump electromagnetic Digital with flow rate constant or timed semanally
- The alimentation standard of the pump is of 100-240Vca 50-60Hz.
- Shower Heads standard in PVDF
- Membrane in material PTFE
- Incorporates valve to carry out bleed valve Manual
- The housing is formed for plastic PP, Reinforcement in fibreglass and protection IP65.
- Dosing timed with a temporizador semanal programable
- Relay timed programable using the activation of a contact dry
Table of Details technical of the dosing pump Tekna TCK from the brand SEKO
| Model | Pressure | Flow Rate | cc/golpe | Inyections/minuto | Connections (mm) | |
| bar | l/h | Suction | Discharge | |||
| 603 | 12 | 4,0 | 160 | 0,42 | 4/6 | 4/6 |
| 10 | 5,0 | 0,52 | ||||
| 8 | 6,0 | 0,63 | ||||
| 2 | 8,0 | 0,83 | ||||
| 800 | 16 | 7,0 | 300 | 0,38 | 4/6 | 4/6 |
| 10 | 10,0 | 0,56 | ||||
| 5 | 15,0 | 0,83 | ||||
| 1 | 18,0 | 1,00 | ||||
| 803 | 5 | 20,0 | 300 | 1,11 | 8/12 | 8/12 |
| 4 | 32,0 | 1,78 | ||||
| 2 | 62,0 | 3,44 | ||||
| 0,1 | 110,0 | 6,11 | ||||
Content of the box of the pump Tekna TCK of SEKO for dosing of chemical products in pools
- Pump complete
- Filter of bottom
- Adaptor of injection-moulded
- 4 metres of tube in PVC (transparent and flexible), for the suction and for the connection of the valve of bleed valve for the cebadura Manual
- 2 metres of tube of PE (opaco and rigid), for the connection of the outlet of the pump with the point of injection-moulded
- Wall Plugs for a fixing of the pump
- Support for the montaje of the wall
- Manual of instructions
- Cable of alimentation (2m)
Referencia:
000BD00066 l/h
SEKO Tekna TCK Electromagnetic Dosing Pump
€365.00
Referencia:
000BD000610 l/h
SEKO Tekna TCK Electromagnetic Dosing Pump
€419.00
Referencia:
000BD000625 l/h
SEKO Tekna TCK Electromagnetic Dosing Pump
€509.00
