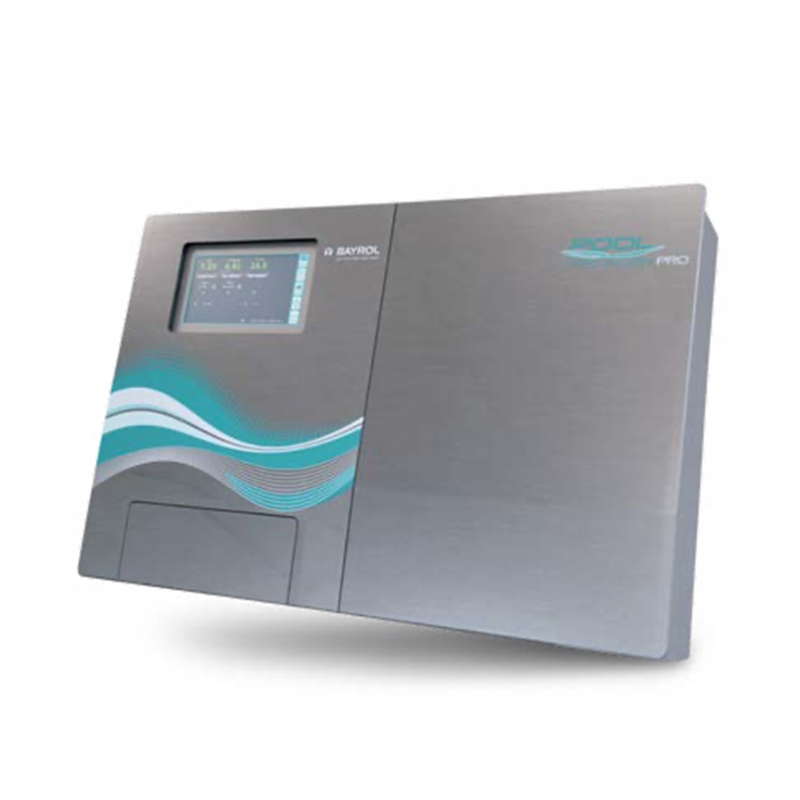

Dosing Pump Automatic Poolmanager Bayrol up to 250 m³

The PoolManager of Bayrol is a system automatic that controls and regula the pH, the disinfection and the management of equipment in pools of up to 250 m³. Offers measurement precisa, fit automatized and conectivity for a handling a distance from any dispositive (ordenador, smartphone, Tablets).

Available in three versions depending on the desinfectant utilized:

• Chlorine liquid - Reference: 177100
• Bromo - Reference: 177200
• Oxygen activo - Reference: 177300

Key Features of the Feeders Automatic PoolManager of Bayrol

• measurement and regulation precisa: Control of the pH, redox and temperature.
• Interfaz intuitive: Display screen touch VGA TFT of 17,8 cm with retroilumination LED and 5 teclas of atajo.
• Domotic advanced:
  • Servidor web integrated to access remote and control total from any dispositive.
  • 6 relés of outlet parametrizables for gestionar equipment as Heating, lighting and pumps.
  • 4 entred digitales universal without potencial.
• Safety:
  • Detector of flow in the chamber of measurement.
  • Alarmas for meditions altas/bajas and time of dosing.
  • Detection of level low in garrafas of chemical products.
• Seguimiento of the activity: Grabation of gráficos and eventos during 1 year for a control detalled.
• Medidas: 715 mm (Height) x 495 mm (length) x 125 mm (depth).

Options Available of the Feeders Automatic PoolManager of Bayrol

PoolManager Chlorine Liquid

Reference: 177100 - Control classic of water using chlorine liquid. measurement and regulation precisa of the pH and measurement of the chlorine via the potencial redox.

PoolManager Bromo

Reference: 177200 - Disinfection alternative using Tablets of bromo. includes measurement and regulation of pH and measurement of the bromo using potencial redox.

PoolManager Oxygen Activo

Reference: 177300 - Disinfection smooth using oxygen activo. Offers a regulation precisa of the pH and control automatized of the treatment.

Interfaz and Control Remote of the Feeders Automatic PoolManager of Bayrol

The PoolManager features with a display screen touch VGA TFT of 17,8 cm with retroilumination LED, operation intuitive and 5 teclas of atajo. In addition, incorporates:

• Servidor web integrated: Access remote and control total from any dispositive connected (smartphone, tablet, ordenador).
• Management advanced of equipment: Up To 6 relés of outlet programables for Heating, lighting and other equipment.

Safety and reliability of the Feeders Automatic PoolManager of Bayrol

• Detector of flow: Ensures the correct operation of the chamber of measurement.
• Alarmas automatic: measurement high/low and time of dosing.
• Detection of level low: To prevent the falta of chemical products in the garrafas.

Dimensions and Design of the Feeders Automatic PoolManager of Bayrol

• Height: 715 mm
• length: 495 mm
• depth: 125 mm
• compact design: Facilitates its installation even in espacios low.
