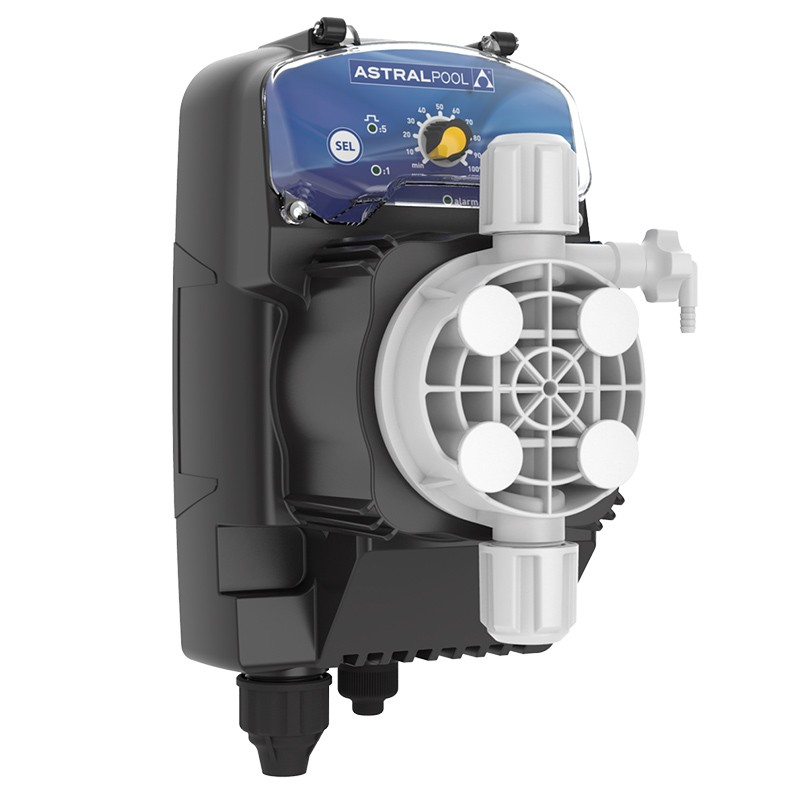

Dosing Pump Acqua two Manual Analogue AstralPool

The dosing pump Manual analogue Acqua two of AstralPool is a equipment high-quality designed for the dosificed constant of chemical products in pools. This pump is ideal for applications in the that needs a control preciso of the flow rate, allowing ajustes Manual to adapt a different requirements and conditions of water.

The models of the series Acqua two are available in three versions with flow rates that vary between 4 and 110 l/h, allowing adjustment of the dosing depending on the Features of the pool. In addition, the system of fit of flow rate realiza using a potentiometer situed in the panel frontal, with two ranges of frequently for greater flexibility.

Features and benefits of the dosing pumps Manual analogue Acqua two of AstralPool

• Flow Rate constant: adjustable manually using a potentiometer, with two ranges of frequently: 0-20% and 0-100% of the maximum flow rate.
• High compatibility chemical: Shower Head of pump in PVDF (Polifluoruro of vinilideno), a material altaly resistant to the chemical products.
• Durability: The diafragma of the pump is manufactured in PTFE (PTFE), it that ensures a long service life and resistance to the wear.
• Protection IP65: grade of protection IP65 for the pump, it that ensures a high resistance to the dust and to the penetration of water, suitable for environments exigentes.
• Contrapresion maximum: The pump is capaz of withstand up to 16 bar of contrapresion, it that allows its use in systems with altas presiones.
• Kit of complete installation: includes a filter of Base in PVDF, valve of injection-moulded in PVDF, tube of suction in PVC (4 metres), tube of discharge of PE (2 metres) and support fixing mural, facilitating the installation.
• fountain of alimentation: operates with 100-240 Vca a 50/60 Hz, it that allows its use in a Variety of installations electrical a level mundial.

Technical Specifications of the dosing pumps Manual analogue Acqua two of AstralPool

Compatibility and Applications of the dosing pumps Manual analogue Acqua two of AstralPool

The dosing pump Acqua two is compatible with pumps Exactus Manual analogue of AstralPool, allowing its integration and replacement in systems already existentes without problemas. The models specific that are compatible are:

• Model 75088 (Type B - 5 l/h) compatible with models antiguos Exactus 57153-57154-57155.
• Model 75089 (Type C - 10 l/h) compatible with models antiguos Exactus 57156-57157.
• Model 75090 (Type D - 20 l/h) compatible with models antiguos Exactus 57158.

features Additional of the dosing pumps Manual analogue Acqua two of AstralPool

• Valve of cebado Manual to facilitate the arranque inicial of the pump.
• Connection simple: Connections of suction and discharge of 4/6 mm, adaptables to the systems comunes of dosing.
• Easy maintenance: Thanks to its modular design, facilitates the revision and maintenance, it that ensures the durability of the equipment.
• High energy efficiency: The Motors of the pumps are designed to offer a low energy consumption, ensuring a operation economical long-term.

Frequently Asked Questions of the dosing pumps Manual analogue Acqua two of AstralPool

Puedo adjust the flow rate of the pump of way precisa?

Yes, the flow rate adjusts manually using a potentiometer in the panel frontal, and has two ranges of frequently to adjust the flow rate of 0 a 20% and of 0 a 100% of the maximum flow rate.

That materials componen the pump?

The Shower Head of the pump is manufactured in PVDF, the diafragma is of PTFE and the cover externa is of PP reforzed with fibreglass, materials that offer high resistance to the chemical products and a long service life.

How much can withstand of contrapresion?

The pump is capaz of withstand up to 16 bar of contrapresion, which makes it hace suitable for applications that require high pressure.

Is the pump easy to install?

Yes, supplied with a kit of complete installation, that includes all it necessary for an easy installation: filter of pie, valve of injection-moulded, pipes of suction and discharge, and support fixing mural.
