Heat Exchanger g2 Titanium + Control Digital Poolsmart

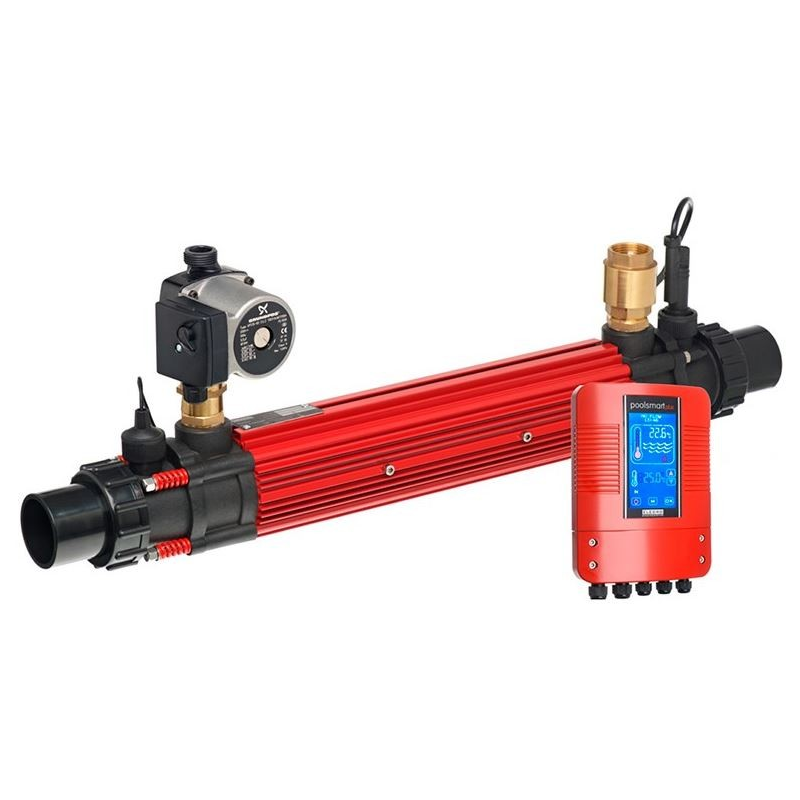

The Elecro G2 is a heat exchanger multitubular designed to offer maximum efficiency and durability. Manufactured in the talleres of Elecro in Hertfordshire (Reino Unido) with components of first quality, its robust design combines pipes internos of titanium with housing outdoor of poliamida and stainless steel BS316L, ensuring a reliable performance even with saltwater.

Installation and operation

installs in the circuit secundary of filtration of the pool, absorbiendo heat from a circuit primary of water hot procedent of boilers of gas or petróleo, pumps of heat or paneles solares. The equipment is totally Above-Ground to facilitate the maintenance and supplied with soportes multypesicionales for ground or wall, thus as racores connection of 50 mm.

Function exclusive “priority of heating”

The Elecro G2 can tomar the control on the temporizador of the pump of circulation for re-encenderla and keep or increase the temperature of the pool, ensuring a comfort constant. Its maximum pressure of working is of 3 bar.

Control Digital POOLSMART and pump GRUNDFOS

The system suministra completaly Equipped with:

• Panel of control Digital with display screen touch POOLSMART
• Pump of recirculation GRUNDFOS
• Connections primary in brass 2 x 1”
• Connections female/female brass 1 x 1”
• Non-return valve 1 x 1”
• Termostato of control Digital
• Sensor of temperature NTC
• Detector of flow that ensures which aparato of heating only active when the pump of filtration is working

Models and Power outputs available
