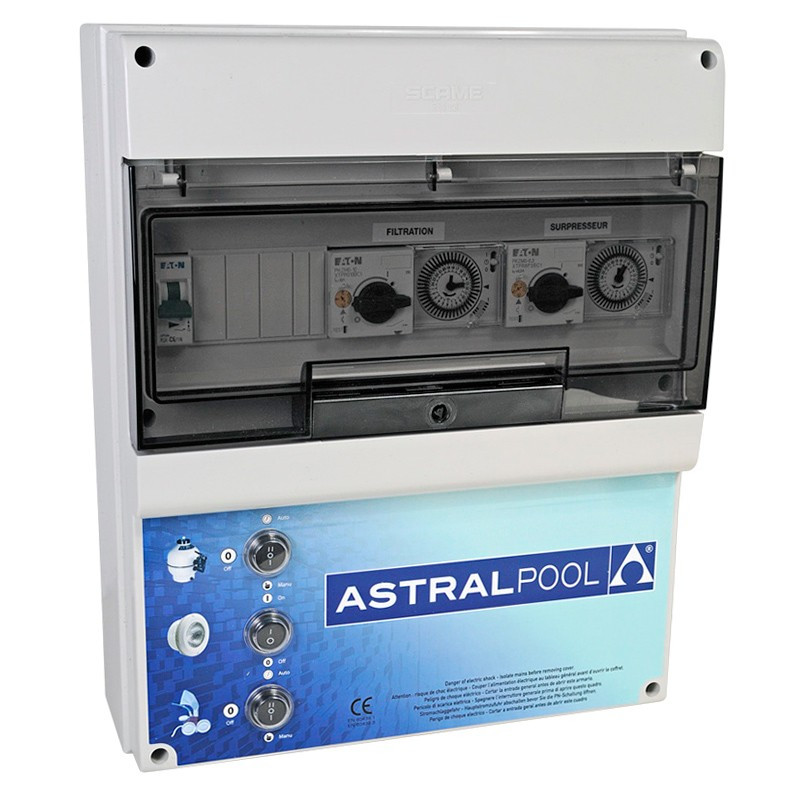

AstralPool Control Cabinet for 2 Pumps and 2 Lights with Transformer
ASTRALPOOL
Referencia: 000AA0504
- Control cabinet AstralPool for the protection of 2 pumps + control of lighting, with transformador of 600W included.
- Protection for thermal circuit breaker, contactor, timer programmer 24h, 3-position switch (auto/0/Manual).Interruptor encendido of Lights for pools.
- Interruptor encendido of Lights for pools.
TECHNICAL SPECIFICATIONS
- IP65.
- Cristal transparent with seal and Key.
- All the products are compatible with:
- 220/240V 1-fase (P+N+T) 50Hz/60Hz380/415V 3-fase (3P+N+T) 50Hz/60Hz220/230V 3-fase (3P+T) 50Hz/60Hz
- timer of control 24H with pasos of programation each ¼ h.
- Connection to control remote of the pump (run/stop,...) for equipment auxiliar (detector cold, level control...).
- All the products entregan with:
- Esquema electrical.
- Diagrama connection.
- Instructions installation.
- Certificed of conformity CE.
- Prensa estopa for each inlet and outlet of cable.
- screws and Wall Plugs (4) for instalarlo in wall.
- Dependiendo of the flow nominal of the pump of filtration must select the type of armario:
| Type | flow Rango | Power 1-fase 230V | Power 3-fases 400V | Power 3-fases 230V |
| C | 4A - 6,3A | 3/4 CV - 1 CV | 3 CV* | 1,5 CV |
| D | 6A - 10A | 1,5 CV | 4 CV** | 2 CV - 3 CV |
