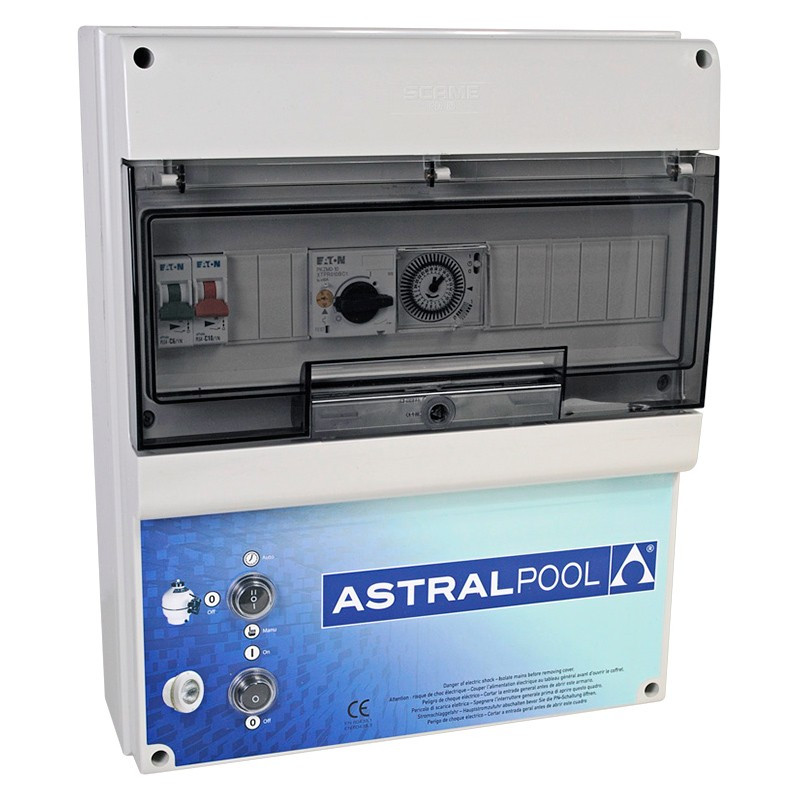

AstralPool Control Cabinet for 1 Pump and 2 Lights with Transformer

ASTRALPOOL

Referencia: 000AA0506

Control cabinet AstralPool for the protection of 1 pump + control of lighting, with transformador of 600W included.
Protection for thermal circuit breaker, contactor, timer programmer 24h, 3-position switch (auto/0/Manual).
Interruptor encendido of Lights for pools.

€579.00 IVA incluido

Quantity

TECHNICAL SPECIFICATIONS

IP65.
Cristal transparent with seal and Key.
All the products are compatible with:
- 220/240V 1-fase (P+N+T) 50Hz/60Hz
- 380/415V 3-fase (3P+N+T) 50Hz/60Hz
- 220/230V 3-fase (3P+T) 50Hz/60Hz
timer of control 24H with pasos of programation each ¼ h.
Connection to control remote of the pump (run/stop,...) for equipment auxiliar (detector cold, level control...).
All the products entregan with:
- Esquema electrical.
- Diagrama connection.
- Instructions installation.
- Certificed of conformity CE.
- Prensa estopa for each inlet and outlet of cable.
- screws and Wall Plugs (4) for instalarlo in wall.
Dependiendo of the flow nominal of the pump of filtration must select the type of armario:

Type	flow Rango	Power 1-fase 230V	Power 3-fases 400V	Power 3-fases 230V
A	1,6A - 2,5A	1/4 CV	3/4 CV - 1 CV	1/2 CV
B	2,5A - 4A	1/2 CV	1,5 CV - 2 CV	3/4 CV - 1 CV
C	4A - 6,3A	3/4 CV - 1 CV	3 CV*	1,5 CV
D	6A - 10A	1,5 CV	4 CV**	2 CV - 3 CV

Referencia

Modelo

Precio

Referencia: 69920

AstralPool Control Cabinet for 1 Pump and 2 Lights with Transformer

€579.00

Referencia: 69921

AstralPool Control Cabinet for 1 Pump and 2 Lights with Transformer

€579.00

Referencia: 69922

AstralPool Control Cabinet for 1 Pump and 2 Lights with Transformer

€579.00

Referencia: 69923

AstralPool Control Cabinet for 1 Pump and 2 Lights with Transformer

€579.00
