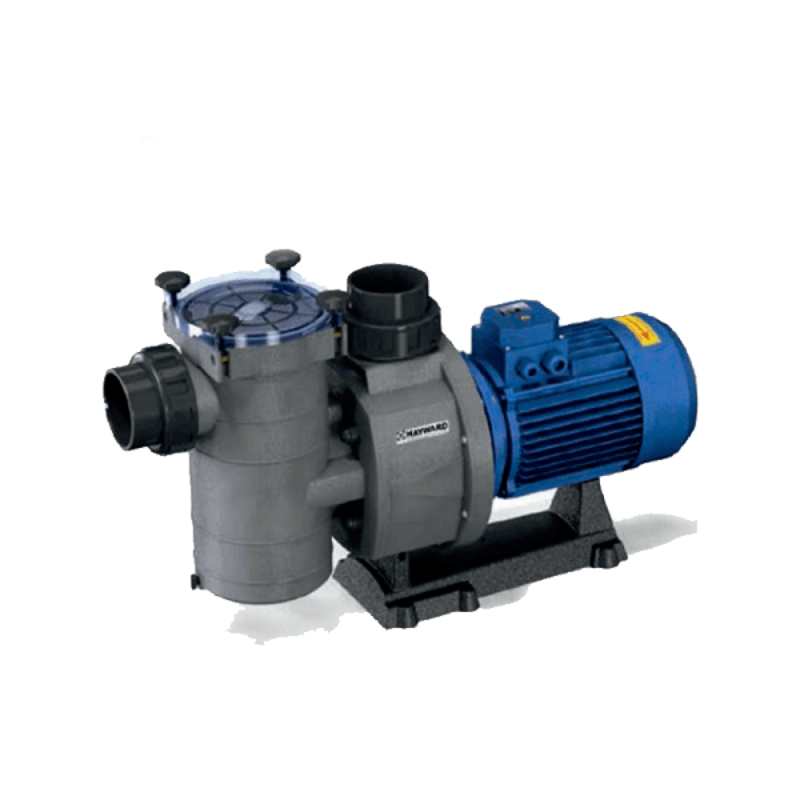

Pool pump Public Hayward Neopump Three-phase

The pumps Neopump of Hayward are designed to offer a high-performance in public pools and communal, thus as in filtration systems of high volume. With Power outputs that ranging from the 5,5 HP up to the 10 HP, these pumps are manufactured with high-quality materials and components of latest generation. The robust design, combined with a motor three-phase of high efficiency, ensures a reliable operation and durable. In addition, are totally compatible with systems of electrolysis salina and water of mar.

features Generales of the Pump Neopump of Hayward

• Motor three-phase IE3: Complies with the standard europeo of efficiency in Motors, ensuring a greater energy efficiency.
• robust design: The pump is constructedd with a turbina of Noryl reforzed and a seal mechanical in AISI-316 stainless steel, which makes it hace ideal for environments of high demanda.
• Compatibility with Saltwater: Perfect for pools with electrolysis salina or water of mar.
• Motor of 4 Poles: The motor operates a 1450 rpm / 50Hz, it that ensures an efficient performance and prolonged.
• Pre-filter of High Capacity: Features with a pre-filter (14 litres) with upper lid transparent for a maintenance more simple.
• high-quality materials: The pump and the pre-filter are manufactured in Thermoplastic reforzed with fibreglass, ensuring a high resistance to the conditions of working exigentes.
• Design Antivibrations: Incorporates a base special that helps to reduce the vibrations and the ruidos during the operation.
• Capacity for large Volúmenes of Water: Suitable for pools with a water volume of up to 350m³.

Table of Especifications of Models of the Pump Neopump of Hayward

Instructions of Use of the Pump Neopump of Hayward

1. Installation: Instale the pump in a place stable, free of obstacles and protected of the moisture excesive. Ensure of which connections hydraulic are Correctly selled and ajusted.
2. Connection electrical: The pump must ser connected a fountain of alimentation three-phase of 400V. Verifique the polarity and the connection correct of the cableed electrical before of encenderla.
3. Arranque: Before of encender the pump, ensure of which pre-filter this clean and free of blockages. To The encender the pump, revise that not haya leaks of water or ruidos inusuales.
4. Maintenance: Realice a maintenance regular Cleaning the pre-filter and verificando the condition of the turbina and the components of the motor. Each six meses, inspeccione the connections electrical and the bearings.
5. Almacenaje: If not va a use the pump during a length period, apáguela and desconéctela of the fountain of alimentation. Guárdela in a Dry place and protected of the moisture to prevent damage.

Applications of the Pump Neopump of Hayward

The pumps Neopump of Hayward are an excellent option for public pools and communal that require a high-performance in filtration systems. With a capacity of up to 350m³ of water, these pumps of high efficiency are designed to offer a operation durable and efficient, even in conditions exigentes as the water of mar or the saltwater. Thanks to its pre-filter of high capacity and its motor three-phase IE3, these pumps ensure an optimum filtration and a low energy consumption, which makes it makes in an ideal option for installations commercial and of high volume.
