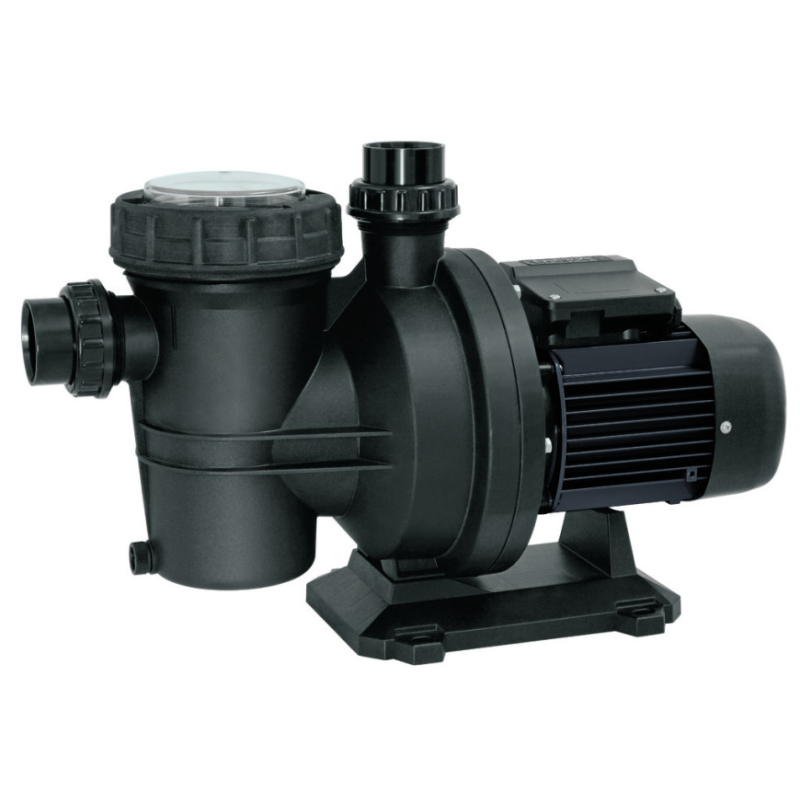

ESPA Nox Pump
ESPA
Referencia: 000AE0202
- centrifugal pump monocelular autoaspirant (4 metres) with pre-filter included.
- quiet operation.
- Its aplication is the recirculation and water filtration in pools medium-sized and of large dimensions.
- Compatible with water chlorinated and with saltwater (up to 7 g/litre).
- Connections Ø suction and discharge: racores for solvent-weld Ø 50 mm.
- Pump body, pie pump, impeller, support seal and diffuser in technopolymer.
- Available in 3 models with various Power outputs.
- This model replace the pump ESPA Silen (model antiguo), with the that comparte the them medidas and performance.
DIMENSIONS
| Model | A | B | C | D | E | F | G | H | I | J | K | L | kg |
| NOX 75 15M | 495 | 211 | 170 | 225 | 2¼ | 225 | 2¼ | 308 | 159 | Ø9 | 319 | 238 | 10,2 |
| NOX 100 18M | 495 | 211 | 170 | 225 | 2¼ | 225 | 2¼ | 308 | 159 | Ø9 | 319 | 238 | 10,9 |
| NOX 150 22M | 495 | 211 | 170 | 225 | 2¼ | 225 | 2¼ | 308 | 159 | Ø9 | 319 | 238 | 13,5 |
OPERATION HYDRAULIC
| Model | I [A] |
P1 [kW] |
P2 |
c [µF] |
* Vol. pool [m3] |
l/min | 40 | 80 | 120 | 160 | 215 | 265 | 325 | 400 | Code | |
| 1~ 230 V |
1~ 230 V |
[kW] | [CV] | m3/h | 2,4 | 4,8 | 7,2 | 9,6 | 12,9 | 15,9 | 19,5 | 24 | ||||
| NOX 75 15M | 5,5 | 1,2 | 0,55 | 0,75 | 16 | 110 | mca | 15,2 | 15 | 14,3 | 13,1 | 9,9 | 6 | 203184 | ||
| NOX 100 18M | 6,0 | 1,4 | 0,75 | 1,0 | 16 | 125 | 16,9 | 16,5 | 16 | 15 | 12,9 | 10 | 5,9 | 203185 | ||
| NOX 150 22M | 7,1 | 1,6 | 1,1 | 1,5 | 25 | 150 | 18,6 | 18,2 | 17,7 | 16,9 | 15,1 | 13 | 10 | 5,1 | 203186 | |
Referencia:
203184
ESPA Nox Pump
€227.05
Referencia:
203185
ESPA Nox Pump
€232.75
Referencia:
203186
ESPA Nox Pump
€284.05
