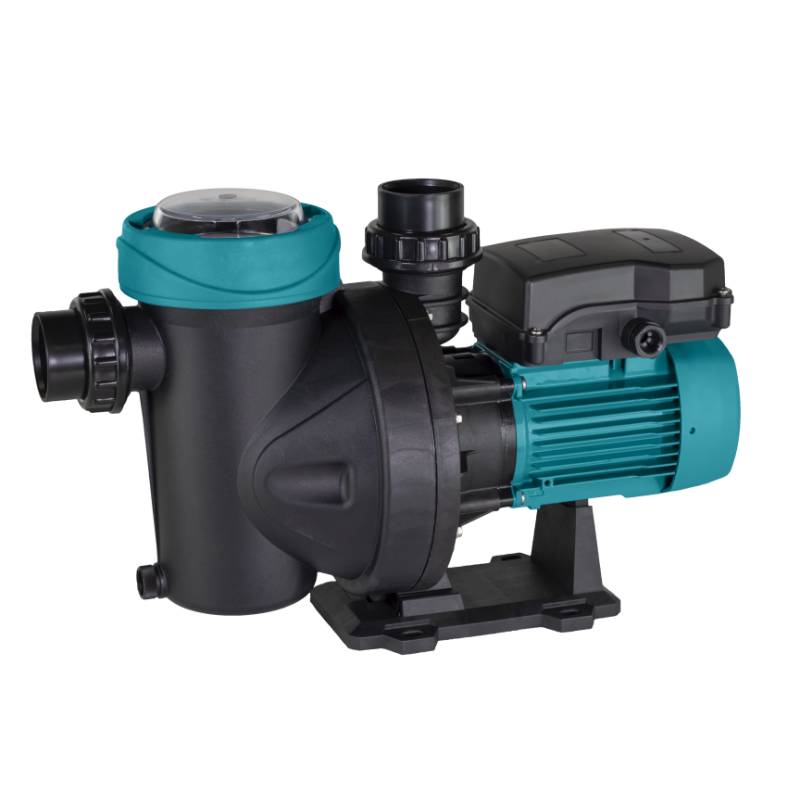

ESPA Silen I Pump
ESPA
Referencia: 000AE0203
The pump for pools ESPA Silen I is a model of centrifugal pump monocelular very compact, with a high poder of suction and designed for favorecer the recirculation of water of way optimum in systems of above-ground pools or buried. Its main features:
- Pump body, pie pump, impeller, support seal and diffuser in technopolymer.
- supplied with racores of suction and discharge for connection a filtration systems with pipes in diameter 50 mm Completaly whisper-quiet and of servicio continuous, with protector thermal included, drain plug, pre-filter with clear lid and seal antibloqueo.
- The pump Silen I comparte the them dimensions with the pump Iris of ESPA, for it that are totally interchangeables.
Cuales are the key Features of the Pump of water ESPA Silen I for pools?
Materials of the that compone the pump ESPA Silen I of water for above-ground pools and buried:
- Pump body, pie pump, impeller, support seal and diffuser in technopolymer.
- Shaft motor in stainless steel AISI 431.
- mechanical seal special in AISI 316.
- Housing motor in aluminium.
- gaskets in NBR.
- bearings up to 160°C.
Details technical of theMotor of the pump ESPA Silen I:
- IP rating 55, with ventilation outdoor.
- single-phase 1 x 230 V, with protector termoamperimétrico included and its corresponding condensador.
Connections of the pump ESPA Silen I for pools:
- Suction and discharge: racores for solvent-weld Ø 50 mm.
Operation Hydraulic of the pump for pools ESPA Silen I
| 1~230 V (model M) | Model | I [A] | P1 [kW] | P2 | c [µF] | * Vol. pool [m3] | l/min | 25 | 50 | 75 | 100 | 150 | 200 | 250 | 290 | |
| Code | 1~ 230 V | 1~ 230 V | [kW] | [CV] | m3/h | 1,5 | 3,0 | 4,5 | 6,0 | 9,0 | 12 | 15 | 17,4 | |||
| 203144 | SILEN I 33 8M | 2 | 0,45 | 0,25 | 0,33 | 12 | 65 | mca | 10,2 | 9,7 | 8,6 | 7,2 | 3,2 | |||
| 203145 | SILEN I 50 12M | 2,8 | 0,65 | 0,37 | 0,5 | 12 | 75 | 12,3 | 11,9 | 11,3 | 10,5 | 8,1 | 4,6 | |||
| 203146 | SILEN I 100 15M | 3,8 | 0,85 | 0,75 | 1 | 12 | 85 | 13,8 | 13,3 | 13 | 12,5 | 10,8 | 8,1 | 4,8 | 1,8 | |
(*) volume pool (m3): calculed From the flow rate ideal for 8 hours of recirculation
Curva of operation a 2900 rpm. of the pump for pools ESPA Silen I
Referencia:
203144
ESPA Silen I Pump
€179.00
Referencia:
203145
ESPA Silen I Pump
€199.00
Referencia:
203146
ESPA Silen I Pump
€215.00
