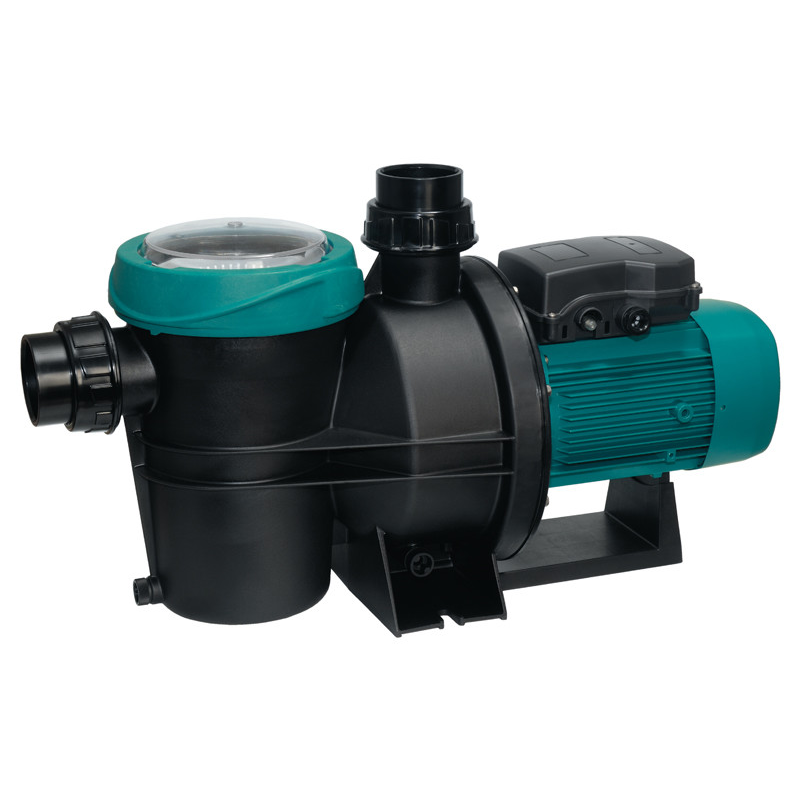

ESPA Pump Silen s2
ESPA
Referencia: 000AE0205
Pumps centrifugal monocelulares self-priming, compact and robustas, and designed for the recirculation of water in systems for domestic pools or colective.
supplied with racores of suction and discharge for connection a filtration systems with pipes in diameter 63 mm Completaly whisper-quiet and of servicio continuous, with two plugs bleed valve, pre-filter of high capacity with clear lid and seal antibloqueo. versions single-phase with protector thermal included.
- centrifugal pump monocelular autoaspirant, compact and robust, designed for the recirculation of water in residential pools or public.
- The Silen S2 is the new version of the ESPA Silen 2, with materials more resistant. Ambos models comparten the them dimensions, for it that are totally interchangeables.
- Ultrasilencious and of servicio continuous, with pre-filter of high capacity with clear lid and seal antibloqueo.
- supplied with racores of suction and discharge for connection a filtration systems with pipes in diameter 63 mm.
- Autoaspirant up to 4 m.
- Available in 10 models with various Power outputs, from 3/4 CV up to 3 CV, in versions single-phase and three-phase.
- 5 years of warranty (2+2+1 registrando the product in the web of ESPA).
TABLE OF OPERATION HYDRAULIC
| 1~230 V (M) | 3~400 V (T) | Model | I [A] | P1 [kW] | P2 | c [µF] | * Vol. pool [m3] | l/min | 100 | 150 | 250 | 350 | 450 | 500 | 550 | 650 | ||||
| Code | Code | 1~ 230 V | 3~ 230 V | 3~ 400 V | 1~ 230 V | 3~ 400 V | [kW] | [CV] | m3/h | 6,0 | 9,0 | 15 | 21 | 27 | 30 | 33 | 39 | |||
| 203155 | 203160 | SILEN S2 75 18 | 4,5 | 3,8 | 2,2 | 1 | 1 | 0,55 | 0,75 | 25 | 110 | mca | 13,2 | 12,8 | 10 | 5,5 | ||||
| 203156 | 203161 | SILEN S2 100 24 | 7 | 4,8 | 2,8 | 1,5 | 1,6 | 0,92 | 1,25 | 25 | 150 | 16,5 | 16 | 14,2 | 10 | 4 | ||||
| 203157 | 203162 | SILEN S2 150 29 | 8,5 | 5,3 | 3,1 | 1,9 | 1,9 | 1,1 | 1,5 | 25 | 180 | 18,5 | 18,2 | 16,5 | 13 | 8,2 | 5,5 | |||
| 203158 | 203163 | SILEN S2 200 31 | 9,7 | 6,5 | 3,8 | 2,2 | 2,2 | 1,5 | 2,0 | 30 | 200 | 19,5 | 19,1 | 18 | 15 | 11,1 | 9 | 6,3 | ||
| 203159 | 203164 | SILEN S2 300 36 | 12,5 | 8,6 | 5 | 2,8 | 2,6 | 2,2 | 3,0 | 60 | 240 | 21,5 | 21 | 19,9 | 18 | 14,9 | 12,9 | 10,3 | 5 | |
Referencia:
203155
ESPA Pump Silen s2
€429.90
Referencia:
203156
ESPA Pump Silen s2
€465.00
Referencia:
203157
ESPA Pump Silen s2
€485.00
Referencia:
203158
ESPA Pump Silen s2
€509.00
Referencia:
203159
ESPA Pump Silen s2
€625.00
Referencia:
203160
ESPA Pump Silen s2
€429.90
Referencia:
203161
ESPA Pump Silen s2
€439.00
Referencia:
203162
ESPA Pump Silen s2
€439.00
Referencia:
203163
ESPA Pump Silen s2
€465.00
Referencia:
203164
ESPA Pump Silen s2
€485.00
chat
Comments (0)
Pumps centrifugal monocelulares self-priming, compact and robustas, and designed for the recirculation of water in systems for domestic pools or colective.
supplied with racores of suction and discharge for connection a filtration systems with pipes in diameter 63 mm Completaly whisper-quiet and of servicio continuous, with two plugs bleed valve, pre-filter of high capacity with clear lid and seal antibloqueo. versions single-phase with protector thermal included.
