BWT Mini Star Pool Pump, Single-Phase

Name: BWT Mini Star Pool Pump, Single-Phase
Brand: BWT
SKU: 000BP0113
Price: 305 EUR
Availability: InStock

BWT

Referencia: 000BP0113

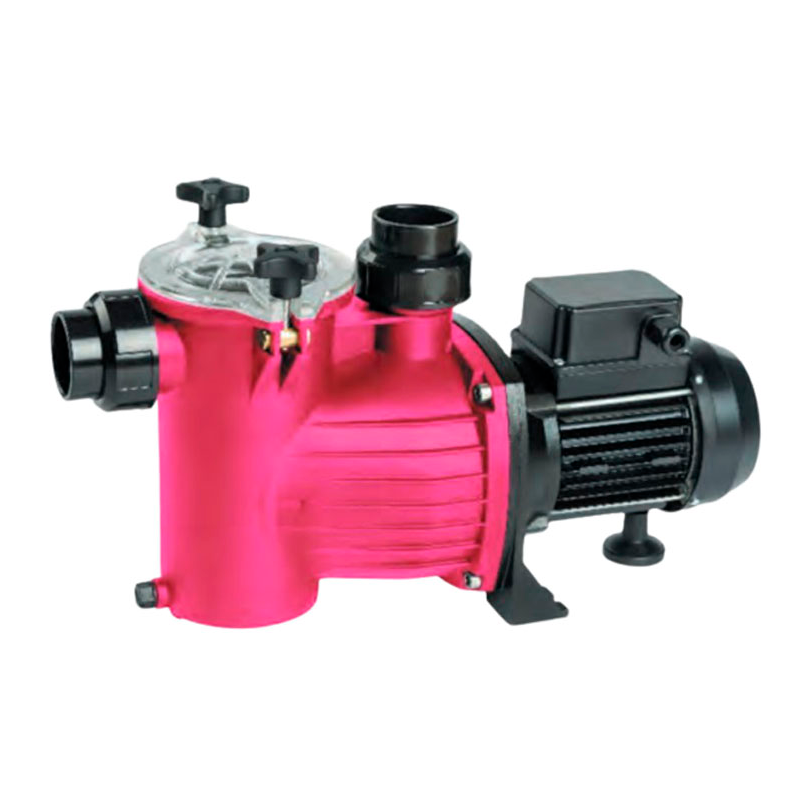

The self-priming pump BWT Mini Star is designed for filtration systems in domestic pools, offering an efficient performance and a long service life. Its powerful capacity of suction and resistant materials ensure an optimum operation and reliable. Manufactured for SACI, part of the Italian group Pedrollo, a brand with more of 20 years of experience in the sector.

pre-filter with lid of Polycarbonate transparent, allowing a inspection and simple cleaning.
Structure in polypropylene reforzed with fibreglass, resistant to corrosion and chemical agents.
Turbina manufactured in Noryl for a greater efficiency in the water flow.
Shaft in AISI-316 stainless steel, ideal for its use in pools with saltwater.
IP55 and insulation class F, ensuring a operation safe and whisper-quiet.
bearings selled and lubriced of for service life, Minimising the need of maintenance.
Base in aluminium reforzed that provides stability and robustness.
Dual option connection: thread female of 1 ½ or tube in PVC Ø 50 mm for solvent-weld.

€305.00 IVA incluido

Quantity

The Pump BWT Mini Star is a self-priming pump of high efficiency designed for the filtration of residential pools. Its combination of high capacity of suction and high-quality materials ensures an optimum filtration and durability excepcional. Manufactured for SACI, belonging to the Italian group Pedrollo, with more of two decades of Track record in the sector.

Features and benefits of the Pumps for pools Mini Star of BWT

pre-filter with clear lid of Polycarbonate for an easy maintenance and quick.
Pump body in polypropylene reforzed with fibreglass, resistant to chemical products.
Turbina in Noryl for a greater efficiency hydraulic.
Shaft in AISI-316 stainless steel, which makes it hace compatible with pools of saltwater.
IP55 and insulation class F, ensuring a operation safe and whisper-quiet.
bearings of motor lubriced of for service life, reducing the maintenance and increasing the durability.
Base in aluminium of high resistance, offering a robust structure and stable.
Dual system connection: thread female of 1 ½ or tube in PVC Ø 50 mm for solvent-weld.

Technical specifications of the Pumps for pools Mini Star of BWT

Model	Reference	Flow Rate (m³/h) a 10 m.c.a.	Power max. (A) II 230	kW	HP	Condensador (µF)	Connections
Mini Star 25	445101	4,0	2,6	0,16	0,25	18	1½ & Ø 50 mm
Mini Star 33	445102	5,5	2,9	0,25	0,33		1½ & Ø 50 mm
Mini Star 50	445103	7,0	3,3	0,37	0,5		1½ & Ø 50 mm
Mini Star 75	445104	10,0	3,8	0,55	0,75	20	1½ & Ø 50 mm
Mini Star 100	445105	13,0	4,2	0,75	1,0		1½ & Ø 50 mm
Mini Star 150	445106	14,5	7,3	1,10	1,5	30	1½ & Ø 50 mm

Note important of the Pumps for pools Mini Star of BWT

The pump BWT Mini Star not allows contact electrical with the water, ensuring total safety. Compatible with pumps Kripsol Ok and PSH Mini, facilitating its maintenance and replacement.

Frequently asked questions on the Pumps for pools Mini Star of BWT

Is compatible with pools of saltwater?

Yes, thanks to its shaft in AISI-316 stainless steel, this pump is perfectly compatible with pools trated with salt.

As realiza the installation?

The pump offers two types of connections: thread female of 1 ½ or PVC Ø 50 mm solvent-weld, adapting a distintos filtration systems.

How much ruido Generates?

The motor asynchronous with ventilation externa and the bearings lubriced of for service life guarantee a operation extremadaly whisper-quiet.

Is resistant to chemical products?

Yes, the body of the pump is manufactured in polypropylene reforzed with fibreglass, it that it da an excellent resistance to the chemicals of the pool.
