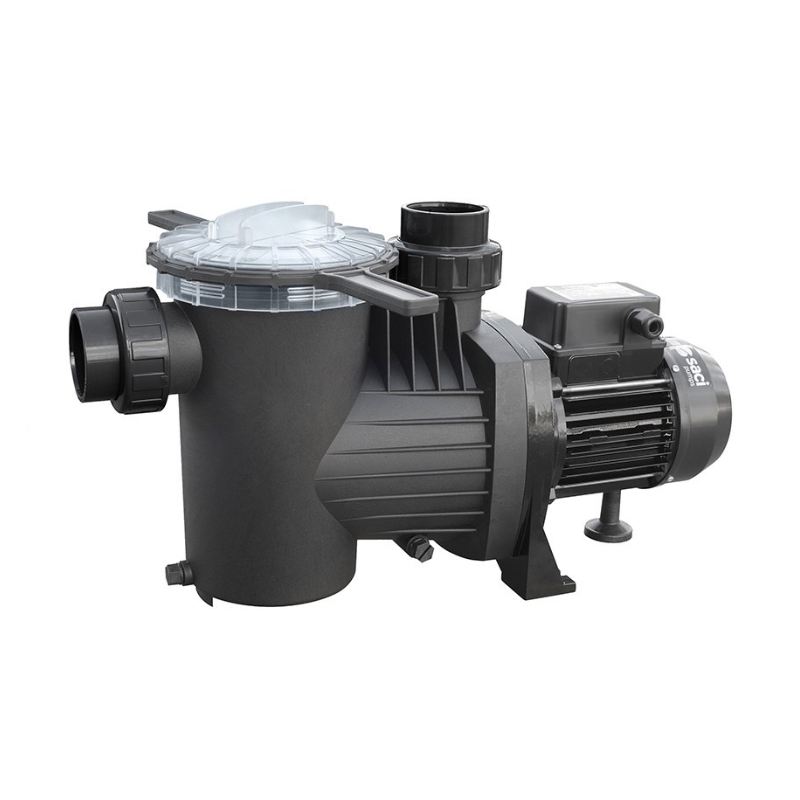

SACI Winner Pool Pump, Single-Phase
BOMBAS SACI
Referencia: 000BP0003
Power your pool without effort. Discover the Pump SACI Winner single-phase, the solution ideal to keep your crystal-clear water and enjoy to the maximum of your summer.
- The pump Saci, designed for residential pools, is synonym of efficiency and performance.
- Its capacity autoaspirant, sumada a pre-filter of high size, ensures an optimum filtration and a water flow constant.
- Available in a wide range of Power outputs and configurations, it suits any need.
Durability and performance in a single pump. The SACI Winner single-phase, designed for years of operation without problemas and ensuring always the mejor performance for your pool.
The self-priming pump Sacifor residential pools stands out for its excelentes performance hydraulic, ensuring an optimum flow rate and a height of elevation considerable. Its pre-filter of large dimensions retiene effectively the particles in suspension, extending the service life of the filter and improving the water quality. Available in a wide range of Power outputs and configurations electrical, adapts to the requirements of any installation.
Features of the Pump Winner single-phase of SACI
- With its clear lid of Polycarbonate , you can vigilar of cerca the condition of the pre-filter and limpiarlo without effort thanks to the Key Included.
- Manufactured with materials of first quality as AISI-316 stainless steel and polypropylene reforzed , this pump is synonym of durability and resistance.
- The design of this pump, with a motor perfectly aisled and high-quality materials, ensures a operation safe and efficient.
- With two types connection available (thread and solvent-weld ), this pump it suits any type installation.
- Its motor asynchronous, powerful and whisper-quiet , together with with the bearings lubriced of for service life, ensure an optimum operation during years. In addition, is compatible with systems of salt chlorination.
- The body of the pump, manufactured in polypropylene reforzed with fibreglass , ensures a resistance excepcional to the chemical products and to the agents weather.
Technical specifications of the Pump Winner single-phase of SACI
| A | Height manometric m.c.a. | Diameter | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | HP | kW | Cond. µF | I | II | III | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | DNA | DNI |
| 230 | 230 | 400 | Flow Rate m3/h | ||||||||||||||
| WINNER 50 M WINNER 50 T | 0.5 | 0.37 | 20 - | 4.2 - | - 3 | - 1.7 | 17,7 | 16 | 14 | 11,5 | 7,7 | - | - | - | - | 2 & Ø 63 PVC | |
| WINNER 75 M WINNER 75 T | 0.75 | 0.55 | 20 - | 5 - | - 3.5 | - 2 | 20 | 18.2 | 16.5 | 14 | 11 | 6 | - | - | - | 2 & Ø 63 PVC | |
| WINNER 100 M WINNER 100 T | 1 | 0.75 | 25 - | 5.5 - | - 3.8 | - 2.2 | 24 | 22 | 20 | 18 | 15 | 11 | 5 | - | - | 2 & Ø 63 PVC | |
| WINNER 150 M WINNER 150 T | 1.5 | 1.1 | 30 - | 7.3 - | - 5 | - 2.9 | 27.5 | 25.5 | 23.5 | 21.5 | 19 | 16 | 12 | 6 | - | 2 & Ø 63 PVC | |
| WINNER 200 M WINNER 200 T | 2 | 1.5 | 40 - | 9.2 - | - 6 | - 3.5 | - | 28.2 | 26.5 | 24.3 | 22 | 19 | 15.2 | 10.5 | 3 | 2 & Ø 63 PVC | |
| WINNER 300 M WINNER 300 T | 3 | 2.2 | 40 - | 12.2 - | - 8.6 | - 5 | - | 32.5 | 31 | 29 | 26 | 23 | 19.5 | 15.2 | 9.8 | 2 & Ø 63 PVC | |
Dimensions of the pump for pools Winner of SACI
| Type | A | B | C | D | E | F | G | H | I | J | K | L | DNA/DNI | Neto Kg. | Bruto Kg. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WINNER 50 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 2 | 11.7 | 12.7 |
| WINNER 75 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 2 | 11.5 | 12.5 |
| WINNER 100 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 550 | 2 | 12.9 | 13.9 |
| WINNER 150 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 580 | 2 | 13.9 | 14.9 |
| WINNER 200 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 580 | 2 | 14.9 | 15.9 |
| WINNER 300 | 216 | 109 | 277 | 370 | 325 | 206 | 325 | 400 | 220 | 205 | 160 | 630 | 2 | 17.4 | 18.4 |
Comparison Table of the models of the Pump Winner from the brand SACI
| Saci Winner ½ CV | Saci Winner ¾ CV | Saci Winner 1 CV | Saci Winner 1,5 CV | Saci Winner 2 CV | Saci Winner 3 CV | |
| Code | 36104002 | 36104012 | 36104022 | 36104032 | 36104042 | 36104052 |
| Alimentation | 230V single-phase | 230V single-phase | 230V single-phase | 230V single-phase | 230V single-phase | 230V single-phase |
| Motor | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Protection | IP-55 | IP-55 | IP-55 | IP-55 | IP-55 | IP-55 |
| Flow Rate | 11m3/h | 13,5m3/h | 18m3/h | 21m3/h | 24m3/h | 29m3/h |
| insulation | Class F | Class F | Class F | Class F | Class F | Class F |
Referencia:
36104002
SACI Winner Pool Pump, Single-Phase
€289.00
Referencia:
36104012
SACI Winner Pool Pump, Single-Phase
€299.00
Referencia:
36104022
SACI Winner Pool Pump, Single-Phase
€345.00
Referencia:
36104032
SACI Winner Pool Pump, Single-Phase
€379.00
Referencia:
36104042
SACI Winner Pool Pump, Single-Phase
€495.00
Referencia:
36104052
SACI Winner Pool Pump, Single-Phase
€579.00
