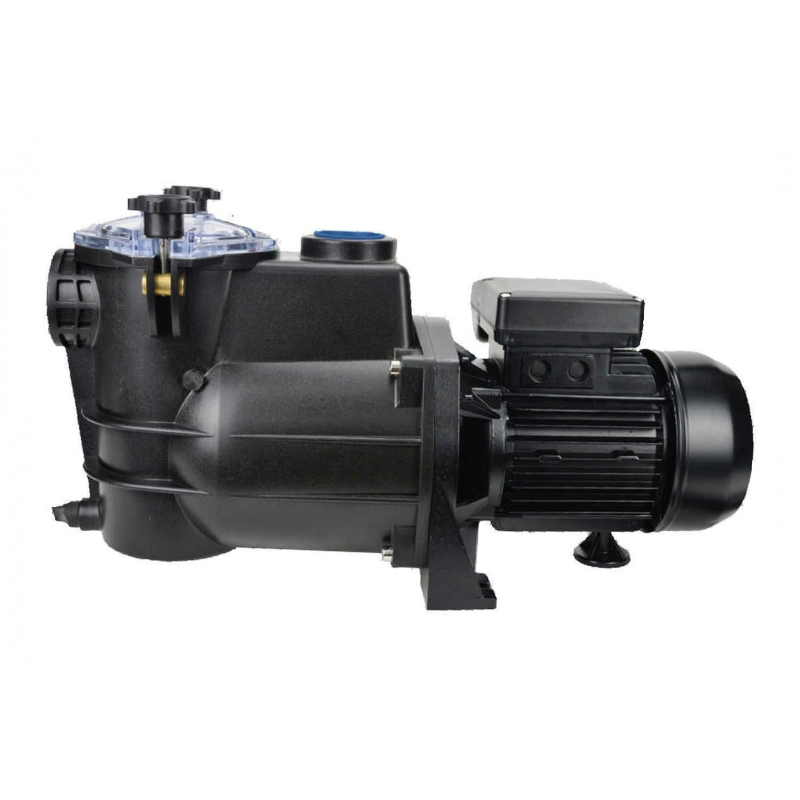

PSH Pool Pump Mini Single-phase
PSH
Referencia: 000BP0021
PSH Mini single-phase: Versatility and performance in a single pump. Perfect for a wide Variety for pools, the PSH Mini single-phase adapts a your requirements. Its compact design and its easy installation the making it the election ideal for any pool owner for pools. In addition, its pre-filter of easy access facilitates the maintenance and ensures an optimum performance.
- With Power outputs from 0,33CV up to 1,5CV.
- Protection IP55.
- Available in versions single-phase and three-phase.
- Apta for water salada and chlorinated.
PSH Mini single-phase: The power that do you need in a size compact. designed to optimise the space and the energy consumption, the PSH Mini single-phase is the solution ideal for residential pools. Its efficient motor single-phase ensures a flow constant of water, keeping your clean pool and crystal-clear with the minimum effort.
Features of the Pump Mini single-phase of PSH
- designed for residential pools, this pump offers an optimum performance thanks to its powerful autoaspiration (up to 4mca).
- Wide range of Power outputs (0,33CV a 1,5CV), both single-phase as three-phase.
- includes cable of 1,5 m with enchufe Schuko (in versions single-phase)
- Its powerful autoaspiration, resistance a environments corrosive and facility of maintenance the making it the election ideal for residential pools.
- Motor IE3 of 50Hz/2900 rpm of high efficiency and protection IP55, offers an exceptional performance.
- Ideal for equipment of filtration and pool cleaner.
- Materials of construction: Body in compound in polypropylene reforzed with fibreglass (30%), impeller and diffuser in Noryl reforzed with fibreglass (30%), shaft in stainless steel AISI 416, seal mechanical with components of carbono, resin and ceramic, lid of pre-filter in Polycarbonate and basket of pre-filter in polypropylene reforzed with fibreglass (5%).
Compara the distintos models of the Pump Mini single-phase of PSH
| Type | Power | Cond. µF | II 230V A | III 230V A | III 400V A | IE3 | Height manometric (m) | Inlets DN | Weight | |||||||||
| kW | HP | III 230V A | III 400V A | 4 | 6 | 8 | 10 | 12 | 14 | 16 | IN | OUT | Kg | |||||
| Flow Rate (m³/h) | ||||||||||||||||||
| MINI-33 | 0,25 | 0,33 | 16 | 2,6 | 12,5 | 10,8 | 9,0 | 6,5 | 3,3 | 1" 1/2 / Ø50 | 1" 1/2 / Ø50 | 9,6 | ||||||
| MINI-50 | 0,37 | 0,50 | 16 | 3,2 | 13,3 | 11,7 | 10,0 | 7,9 | 5,6 | 2,3 | 1" 1/2 /Ø50 | 1" 1/2 / Ø50 | 9,8 | |||||
| MINI-80 | 0,60 | 0,80 | 20 | 4,2 | 2,7 | 1,7 | 2,6 | 1,5 | 16,5 | 14,4 | 12,5 | 10,5 | 8,6 | 6,3 | 3,3 | 1" 1/2 / Ø50 | 1" 1/2 / Ø50 | 10,3 |
| MINI-100 | 0,75 | 1 | 25 | 4,6 | 3,1 | 1,9 | 3,0 | 1,7 | 18,4 | 16,4 | 14,4 | 12,5 | 10,4 | 7,8 | 4,0 | 1" 1/2 / Ø50 | 1" 1/2 / Ø50 | 12,2 |
| MINI-150 | 1,75 | 1,50 | 25 | 4,3 | 4,3 | 2,5 | 4,0 | 2,3 | 24,2 | 22,4 | 20,2 | 18,0 | 15,3 | 12,2 | 8,4 | 1" 1/2 / Ø50 | 1" 1/2 / Ø50 | 12,2 |
Referencia:
1001
PSH Pool Pump Mini Single-phase
€245.00
Referencia:
1001
PSH Pool Pump Mini Single-phase
€259.00
Referencia:
1001
PSH Pool Pump Mini Single-phase
€275.00
Referencia:
1001
PSH Pool Pump Mini Single-phase
€285.00
Referencia:
1001
PSH Pool Pump Mini Single-phase
€309.00
chat
Comments (0)
PSH Mini single-phase: Versatility and performance in a single pump. Perfect for a wide Variety for pools, the PSH Mini single-phase adapts a your requirements. Its compact design and its easy installation the making it the election ideal for any pool owner for pools. In addition, its pre-filter of easy access facilitates the maintenance and ensures an optimum performance.
- With Power outputs from 0,33CV up to 1,5CV.
- Protection IP55.
- Available in versions single-phase and three-phase.
- Apta for water salada and chlorinated.
