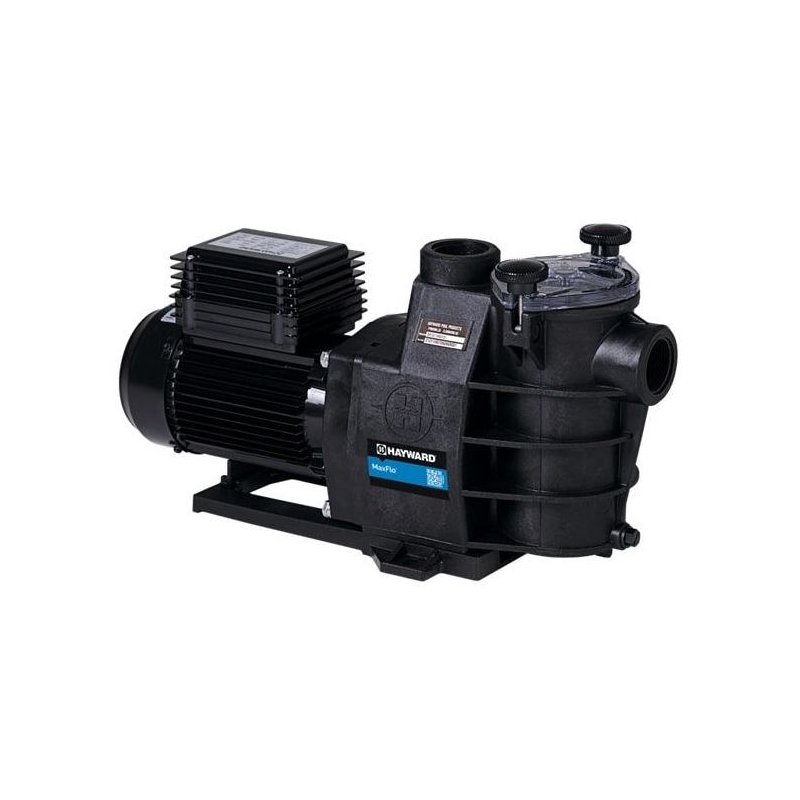

HAYWARD MaxFlo XL Pool Pump, Single-Phase
HAYWARD
Referencia: 000BP0078
The pump Max-Flo XL single-phase is ideal for small pools, of fibra, of timber or on ground, with Power outputs between 0,5 and 1,5 CV in models single-phase and three-phase. has connections of 50 mm and its pre-filter abre easily with a lid of cuarto of turn.
- Design e hydraulic improved for an optimum performance.
- System of seal of the pre-filter Twist-lock without the need for tools.
- High durability against to the corrosion chemical and salina.
- quiet operation with a level of ruido low.
- Energy efficiency: consumption electrical minimum.
- Motor robust and of high-performance.
The Pump Max Flo XL single-phase stands out for its design optimised that improves the performance hydraulic and ensures an efficient operation. Features with a system of seal for the pre-filter type Twist-lock, that not requires tools, it that facilitates the maintenance.
*This pump is ideal for pools of up to 80 m³
Key Features Pump Max Flo XL Hayward
- compact design: Perfect for locales technical with space low, facilitating the installation in different configurations.
- Relation quality-price: Offers an exceptional performance a costo competitive.
- Resistance and durability: Constructed in materials Thermoplastic of high resistance, ensures a long service life against to the constant exposure to chemicals and water salina.
- Motor of high-performance: Provides reliable operation and prolonged, complying with with the standards of energy efficiency IE3 in its versions single-phase and three-phase.
- quiet operation: designed to reduce the ruido, ideal for environments residential.
- Basket of pre-filter wide: includes a clear lid to facilitate the inspection and cleaning, in addition to a system of seal Twist-lock that not requires tools.
- Facility of maintenance: With a plug of drain that simplifica the invernaje and connections of thread female of 1½" for greater versatility.
| features | Detalle |
|---|---|
| Temperature maximum of water | 35°C |
| Seal mechanical | AISI 304, compatible with treatment salt water (salt chlorinator) |
| Features of the motor | Class F, IP55, 50 Hz, 2 poles |
| Body / impeller / basket / lid | PP+GF/Noryl® + GF/ABS/PC |
| Size of the pre-filter | 1.5 L |
That hace which Pump Hayward Max Flo XL whether the election ideal for your pool?
- Energy efficiency and low energy consumption electrical.
- Resistance comprobed to the corrosion chemical and salina, ideal for conditions exigentes.
- Compatibility with pools of up to 100 m³, adapting a various requirements.
- ergonomic design that facilitates the installation and the maintenance.
Table datos electrical e hydraulic Pump MaxFLO XL
| Model | Power (CV) | Diameter (mm) | Weight (kg) | Connection (mm) | Flow Rate (m³/h) a 8m | P1 Max. (W) | Power nominal P2 (W) | Amperios P1 (A) |
|---|---|---|---|---|---|---|---|---|
| MAXFLO® XL SINGLE-PHASE | 1/2 | 220 | 12.9 | 50 | 10.5 | 630 | 380 | 2.6 |
| 3/4 | 220 | 12.9 | 50 | 12 | 700 | 570 | 2.9 | |
| 1 | 247 | 13.9 | 50 | 14.5 | 810 | 720 | 4.3 | |
| 1.5 | 247 | 14.07 | 50 and 63 | 17 | 975 | 790 | 5 | |
| MAXFLO® XL THREE-PHASE | 3/4 | 216 | 11.4 | 50 | 12.8 | 650 | 570 | 2.1/1.2 |
| 1 | 216 | 12.02 | 50 | 14.5 | 700 | 690 | 3/1.7 | |
| 1.5 | 247 | 13.2 | 50 and 63 | 16.2 | 830 | 790 | 3.3/1.9 |
Conclusion
The model Max Flo XL combines advanced technology with durable materials that guarantee a resistance excepcional to the corrosion. Is an option reliable and whisper-quiet, with technical specifications sobresalientes which making it a election ideal for various applications
