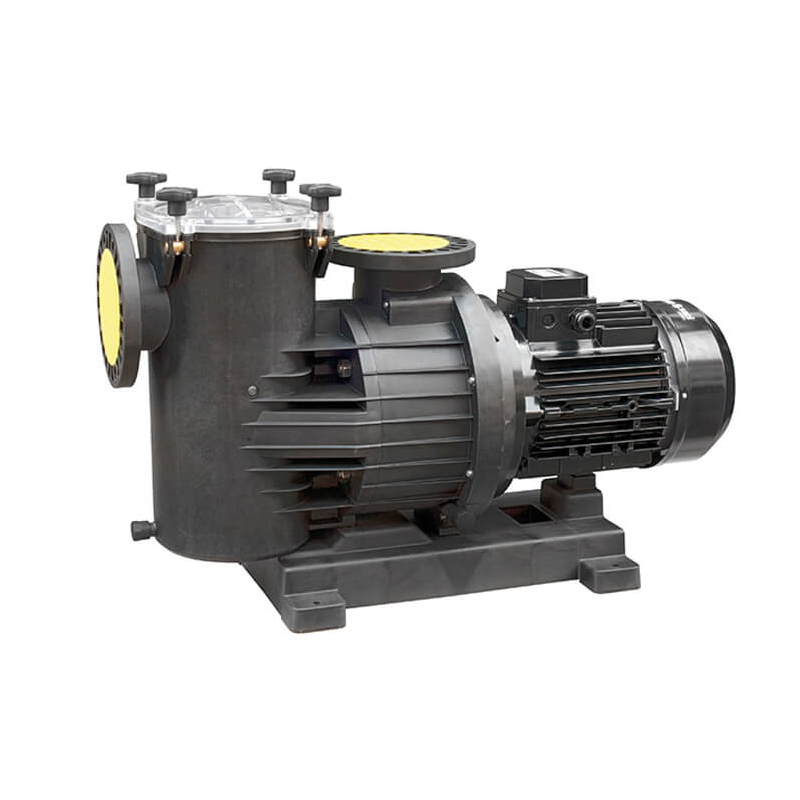

Pool pump Public Saci Magnus 4 Three-phase
SACI
Referencia: 000BP0023
Imagina a pool always crystal-clear, with a clean water and refreshing, without tener that preocuparte for ruidos molestos or a high energy consumption. The pumps Saci Magnus-4 make reality this vision. Thanks to its robust design and efficient, these pumps guarantee a optimum operation during years, reducing the costos of maintenance and extending the service life of your pool.
- Crystal-clear water and clean: Its high filtration capacity and its design resistant to corrosion ensure a water always clean and crystal-clear.
- Savings energetic: Reduces significantly your costos operative thanks to its high energy efficiency.
- Durability: Manufactured with high-quality materials for resistir the conditions more exigentes.
- Easy maintenance: The pre-filter of high capacity facilitates the cleaning tasks and maintenance.
"
Description general: The pumps Saci Magnus-4 are pumps self-priming of high-performance designed specifically for large installations of public pools, offering a maximum flow rate impresionant and a high filtration capacity. These pumps operan with a motor asynchronous a bajas revolutions, ensuring a quiet operation and efficient a it length of the time.
Description additional: Thanks to its components high-quality and its resistance to the chemical products and saltwater, the pumps Saci Magnus-4 are ideal for public pools of high volume, ensuring a extended service life and an optimum performance in all point.
features Generales of the Pumps Magnus-4 of Saci
- Motor asynchronous, closed with ventilation externa and IP55.
- Pump body and parts reforzed with fibreglass, resistant to chemical products.
- Pre-filter basket of high volume for high filtration capacity.
- Operation a 1.450 r.p.m. to reduce ruido and increase the efficiency.
- Seal mechanical in AISI-316 stainless steel to work with saltwater.
- Clear lid of Polycarbonate for an easy visualization of the condition of the pre-filter.
Benefits and Benefits of the Pumps Magnus-4 of Saci
- High efficiency: High flow rate and pressure manometric, ideal for pools of large dimensions.
- Durability: Components high-quality and resistance a conditions extremas, as the saltwater and the chemical products of the pools.
- Low maintenance: Thanks to the pre-filter of high volume, reduces the frequently of cleaning.
- Whisper-quiet: operate a bajas revolutions (1.450 r.p.m.), it that disminuye the ruido during its operation.
- Versatility: Aptas to work with water of mar due and its seal mechanical in AISI-316 stainless steel.
Comparison Table of Models of the Pumps Magnus-4 of Saci
| Model | Power | Maximum Flow Rate | Height manometric Maximum | Voltage | Consumption | Weight | Dimensions (L x H) |
|---|---|---|---|---|---|---|---|
| Saci Magnus-4 300 | 3,00 Hp | 62.000 l/h | 14 metres | 230-400 V (three-phase) | 5,3A (400V) / 9,4A (230V) | 42,5 kg | 840 mm x 420 mm |
| Saci Magnus-4 400 | 4,00 Hp | 74.000 l/h | 16 metres | 230-400 V (three-phase) | 6,9A (400V) / 12,5A (230V) | 44,5 kg | 840 mm x 420 mm |
| Saci Magnus-4 550 | 5,50 Hp | 123.000 l/h | 14 metres | 230-400 V (three-phase) | 8,8A (400V) / 15,3A (230V) | 53,4 kg | 865 mm x 420 mm |
| Saci Magnus-4 750 | 7,50 Hp | 143.000 l/h | 16 metres | 230-400 V (three-phase) | 12,0A | 66,0 kg | 888 mm x 420 mm |
| Saci Magnus-4 1000 | 10,00 Hp | 160.000 l/h | 18 metres | 230-400 V (three-phase) | 15,8A | 76,0 kg | 1.003 mm x 420 mm |
Instructions of Use of the Pumps Magnus-4 of Saci
To ensure an optimum performance and a long service life of the pumps Saci Magnus-4, siga the siguientes recomendations:
- Installation: Ensure of which pump this Correctly instaled, with the connections of suction and discharge well selled and alineed.
- Revision regular: Revise the condition of the pre-filter and límpielo regularly to keep the efficiency of the filtration.
- Protection electrical: Ensure of which pump this connected a fountain of energy electrical safe and In accordance to the parameters especificed in the especifications of the model.
- Avoid the operation in dry: never permita which pump funcione without water, as this can damagela irreparablely.
- Environment suitable: remains the pump in an environment dry and ventiled to prevent sobrecalentamientos and damage in the motor.
