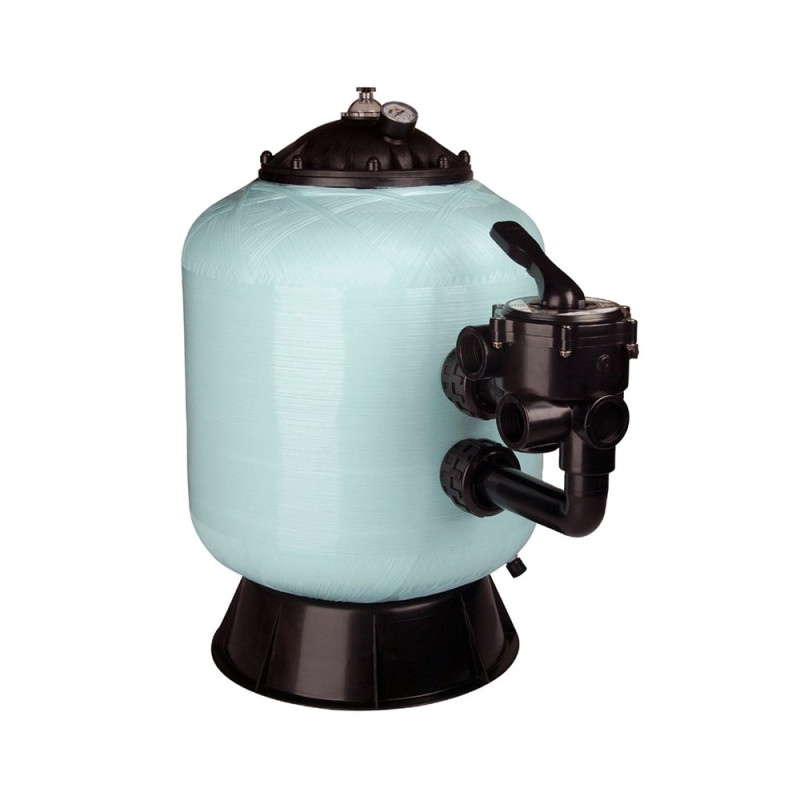

Berlin Filter AstralPool bobbin-wound with Side Outlet

Name: Berlin Filter AstralPool bobbin-wound with Side Outlet
Brand: ASTRALPOOL
SKU: 000AA0101
Price: 679 EUR
Availability: InStock

ASTRALPOOL

Referencia: 000AA0101

The Berlin filter of AstralPool, with side outlet and bobbin-wound structure, is a robust and efficient solution to keep your pool water always crystal-clear. Its advanced design ensures high-quality filtration, ideal for installations that require durability and optimum performance.

The Berlin filter of AstralPool has guaranteed during more of two decades an efficient filtration for all types of private and public pools a level mundial.
Available in diameters that ranging from 500 mm to 1200 mm.
Of high resistance thanks to its finished wound.
Acabed bright satined, with protection antypelvo for medio of a flash of barniz transparent in polyurethane.
Lid Ø 230 mm of seal for screws, injection-moulded.
Equipped with air bleed valve and water Manual and pressure gauge and multiport Side Valve.

€679.00 IVA incluido

Quantity

With the Berlin bobbin-bobbin-wound filter of AstralPool, you will enjoy a filtration reliable system and long-lasting, thanks to its resistant construction and side outlet that optimises the water flow. This filter is perfect for users seeking efficient maintenance and impeccable water quality in your pool.

Description wound Berlin filter

Maximum effectiveness and performance for the water filtration of large private pools. Available in different models that vary for its diameter and capacity of water filtration, from 500 mm up to 1200 mm. in diameter of the tank of sand.

Filter designed for large-volume pools of water manufactured as a single piece with dust-protection treatments, maximum quality of water filtration and excellent robustness and resistance of the tank.Is supplied with or without multiport Side Valve of 6-way allowing all functions to be carried out of water filtration for pools with a maximum filtration rate of 50 m3/h.

includes Manual water and air bleed, thus as pressure gauge indicating the working pressure, that it helps to control the equipment Correctly. upper lid of plastic injection-moulded with some dimensions of Ø 230 and Ø 400 mm The range of Filters wound BERLÍN of the fabricant Astral is without duda the election more acerted to keep the pool water in perfect condition, ensuring a cleaning optimum.

Features of the Wound Berlin filter of AstralPool


CODE		00541	00542	00543	00544	00545	00546
Ø D (mm)		500	600	750	900	1050	1200
H (mm)		805	910	1050	1145	1300	1450
M (mm)		450	505	610	685	810	870
N (mm)		325	380	380	415	500	560
Connections		1½"	1½"	2"	2½"	*D75	**D90
Flow Rate m³/h up to 50 m³/h/m²		9	14	21	30	43	56
Pool (volume) m³		50-75	75-115	115-170	170-240	240-350	350-450
Carga of sand (kg)		100	175	300	525	575	800
Carga of gravel (kg)		0	0	0	0	300	300
Carga of glass (kg)	grade 1 (57011)	70	122	209	366	448	565
	grade 2 (57012)	0	0	0	0	147	186
	grade 3 (57013)	17	51	51	89	145	183
Maximum pressure of working (kg/cm²)		2,5	2,5	2,5	2,5	2,5	2,5
Net weight (kg)		14,6	18,6	27,5	43,4	83	93
volume embalaje (m³)		0,23	0,36	0,26	0,99	1,92	2,75
