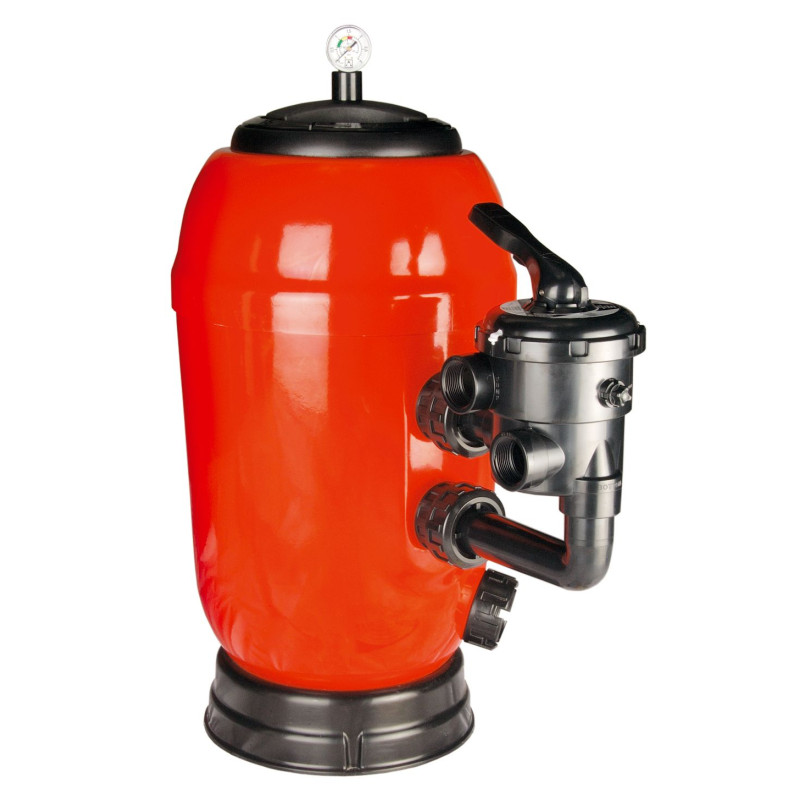

Filter RapidPool Side AstralPool Pool Filter with Side Valve

Description Filter of high-performance RapidPool

are supplied of a filter bed of greater capacity to achieve thus a water filtration of maximum quality using sand.

The models RapidPool have diameters from 400 mm to 800 mm and are ideal for pools of capacities of 24 m3 up to 96 m3 making 4h of filtration, or alternatively for pools of 48 m3 up to 192 m3 making 8h of filtration.

Equipped with a pressure gauge that enables the air bleed valve and water automatically or Manual. Also features of a multiport valve of six-way lateral that allows select between the different functions that realiza the filtration system: backwash, filtration, recirculation, rinse, closed and drain.

The range of filtration systems RapidPool are manufactured in fibra of glass and resin of polyester and features in colour red. Consulte the flow rates of filtration to choose from the more suitable for the installation of your pool. Available with valve top or lateral. The lid not has screws for hacer possible a opening and seal more quick and comfortable. The maximum pressure of working of the filter RapidPool is of 2,5 kg/cm2.

Technical specifications of the difierentes models of the filters RapidPool

Details and benefits of the filters RapidPool of AstralPool

• Filters of sand laminated manufactured with resin of polyester and fibreglass. Colour red.
• mounted with manifolds and diffuser in plastic non-degradable PVC and PP.
• Equipped with pressure gauge and air bleed valve in the lid.
• Incorporates a plug for drain of sand and water.
• multiport Side Valve six-way for filtration, backwash, rinse, recirculation, drain and closed.
• Polypropylene base.
• Lid without screws of opening and seal quick.
• Distribution of the arms manifolds, increasing to the maximum the height of filtration.
• Maximum filtration rate: 50 m³/h/m².
• Maximum pressure of working: 2,5 kg/cm².
• Height filter bed 0,6 m.
• filter bed. The greater filter bed and the distribution of the manifolds improve the water quality resulting after the filtration.
• Comfort. using the system patented of opening and seal of the lid, eliminate the tradicionales screws. Thanks a ello ejerce a pressure uniform in every the section of the gasket of watertightness and facilitates the operation of opening of the lid.
• Easy top-up. Dado that features of a plug for drain of sand, the Process of evacuation/top-up is more easy.
