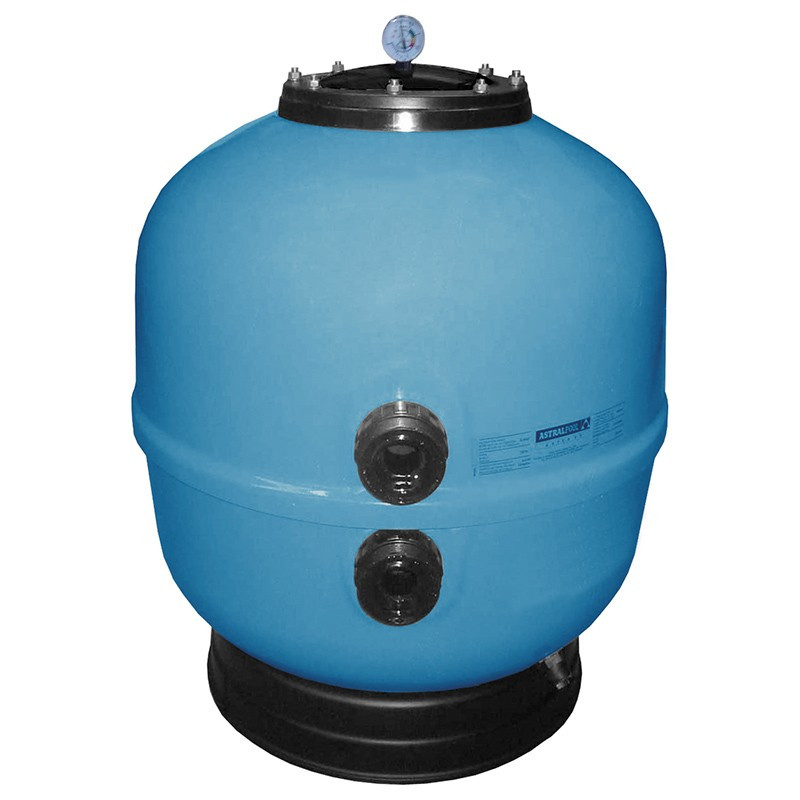

Filter Ice AstralPool Laminated Pool Filter with Side Valve
ASTRALPOOL
Referencia: 000AA1108
- Sand filter for pools with the warranty AstralPool.
- Body manufactured in resin of polyester reforzed with fibreglass and finished outdoor in gelcoat blue.
- upper lid of seal with screws with pressure gauge and air bleed valve.
- With plug lower of drainage of water.
- Maximum pressure of 2,5 kg/cm².
- Available without multiport valve, with valve of bayoneta or with valve of screws.
Features of the filter Ice of AstralPool
- Filter laminated with resin of polyester and fibreglass.
- excellent finished outdoor in gelcoat.
- Filter blue RAL 5024.
- water bleed valve and air of ¼".
- Connections for multiport valve of six-way with operations of filtration, backwash, rinse, recirculation, drain and closed.
- upper lid negra of seal with screws and pressure gauge.
- Equipped interiorly with cono diffuser and arms manifolds of 1".
- Probed In accordance a European standard IN 16713-1.
- Temperature maximum: 50ºC
- Maximum pressure of working: 2,5 bar
Dimensions and technical specifications of the filter of AstralPool Ice
| CODE | 73177 | 73178 | 73179 | 73180 | 73181 | 73182 | 73183 | |
|---|---|---|---|---|---|---|---|---|
| Ø D (mm) | 350 | 450 | 500 | 600 | 650 | 750 | 900 | |
| H (mm) | 755 | 760 | 855 | 850 | 890 | 930 | 1100 | |
| M (mm) | 393 | 434 | 417 | 442 | 479 | 555 | 659 | |
| N (mm) | 268 | 309 | 292 | 317 | 354 | 325 | 389 | |
| Connections | 1½" | 1½" | 1½" | 1½" | 1½" | 2" | 2" | |
| Flow Rate m³/h (up to 50 m³/h/m²) | 5 | 8 | 10 | 14 | 17 | 22 | 32 | |
| Pool (volume) m³ (8 h)* | 40 | 64 | 72 | 112 | 120 | 168 | 240 | |
| Carga of sand (kg) | 50 | 70 | 95 | 125 | 200 | 290 | 500 | |
| Carga of glass (kg) | grade 1 (57011) | 35 | 49 | 68 | 87 | 139 | 202 | 348 |
| grade 3 (57013) | 8 | 12 | 17 | 21 | 34 | 49 | 85 | |
| Pressure max of working (kg/cm²) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | |
| Net weight (kg) | 15 | 15 | 17 | 21 | 22 | 30 | 48 | |
| Dimensions embalaje (cm) | 39x39x76 | 52x52x76 | 56x56x85 | 65x65x86 | 70x70x89 | 80x80x93 | 96x96x110 |
Referencia:
73177-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€345.00
Referencia:
73177
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€445.00
Referencia:
73177CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€409.00
Referencia:
73178-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€349.00
Referencia:
73178
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€455.00
Referencia:
73178CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€409.00
Referencia:
73179-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€349.00
Referencia:
73179
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€535.00
Referencia:
73179CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€419.00
Referencia:
73180-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€508.50
Referencia:
73180
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€488.90
Referencia:
73180CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€439.00
Referencia:
73181-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€559.00
Referencia:
73181
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€649.00
Referencia:
73181CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€569.00
Referencia:
73182-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€729.00
Referencia:
73182
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€715.00
Referencia:
73182CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€739.00
Referencia:
73183-0100
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€895.00
Referencia:
73183
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€1,059.00
Referencia:
73183CP
Filter Ice AstralPool Laminated Pool Filter with Side Valve
€929.00
