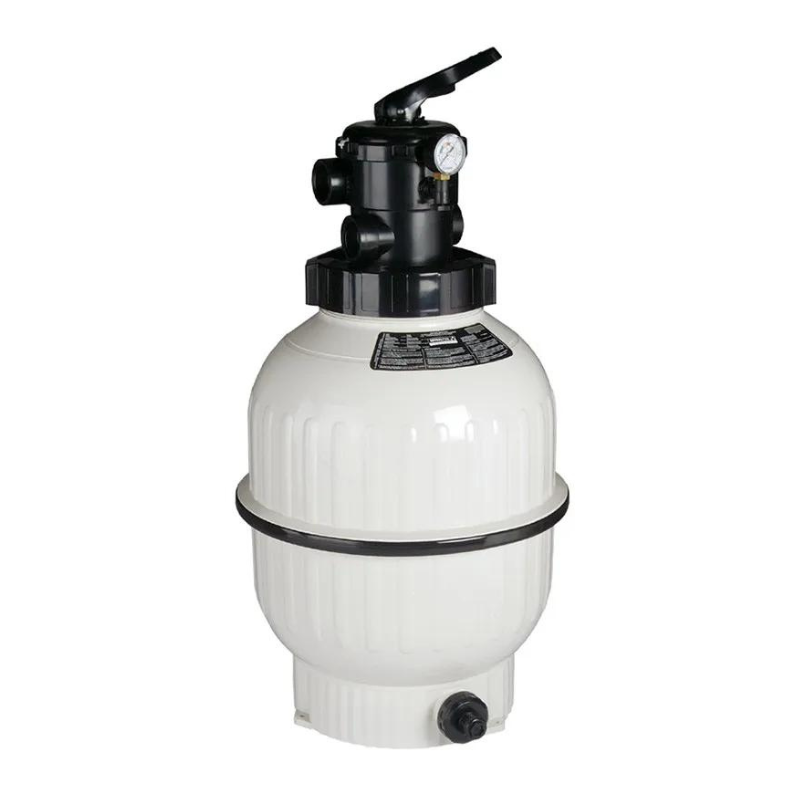

Filter Cantabric Superior AstralPool Top Valve with Outlets 1½"

Filter injection-moulded in plastic technical. ivory. coupling of the part upper e lower of the filter using heat-welded seams. Equipped with pressure gauge, bleed valves of water and air Manual. multiport valve with top outlet Included. Speed max. of filtration of 50 m3/h/m2. Maximum pressure of working: 2,5 kg/cm2. Lid of the filter threaded in plastic ABS.

Key Features of the Pool filter Cantabric of AstralPool

• Sand filter with top outlet (top). Also available with side outlet depending on its convenience and the space available for its ubication
• Body of the filter manufactured in plastic non-degradable and resistant to chemical agents and weather. Hechos to work in the intemperie.
• Equipped of series with multiport valve of 6+1 ways of AstralPool, for filtration, backwash, rinse, recirculation, drain, closed e invernaje (all the entred and salidas are comuniced).
• Clear lid to facilitate the visual inspection and the access to the interior of the filter in the case of Side Valve.
• Collector and diffuser for a performance continuous.
• manual air bleed valve for hacer salir the air of the interior of the filter if is necessary.
• Incorporates a manual water bleed valve of ¾" in the plug of the bleed valve of sand of the filter to facilitate its drainage without loss of sand.
• In its part lower, incorporates collector using arms to ensure a flow balanced and the backwash of the filter.
• Pressure Gauge for the control of backwash of the filter. Base integrated in the mitad lower of the filter, with holes for its correct sujetion to the ground.
• throat greater of 225 mm to facilitate the manipulation and the carga of sand in diameters of 900 mm For the resto of the range the throat upper is of 177 mm

Benefits of benefit from the filtration system AstralPool Cantabric for pools

• Easy drainage. Without loss of sand using a manual water bleed valve included in the plug of the bleed valve of sand
• Funcionality. The advanced technology desarrolled for the filters Cantabric provides a reliability of operation extraordinary with a minimum maintenance, reflejándose in a safety that allows optimise the filtration of the pool for muchos years. Also must tener in features that incorporates the multiport valve of 6+1 ways features of AstralPool for the filtration, backwash, rinse, recirculation, drain and closed
• innovative design. Mas allá of its functionality, AstralPool has concerned for create a new image for its filters Cantabric, obtaining as result a product with a design attractive and novedous both for its ivory and its formas, without olvidarnos of its adaptability to the requirements of ubication
• Wide range. The filters Cantabric provide the solution ideal for a wide diversity of sizes for pools, puesto that adapt to the requirements of filtration for capacities that ranging from 30 a 240 m3 with flow rates of 6.000 l/h up to 30.000 l/h, with a speed of filtration of 50 m3/h/m2

Dimensions of the models of the filter Cantabric AstralPool with top outlet
