Filter Millennium AstralPool with Top Valve for
ASTRALPOOL
Referencia: 000FP0047

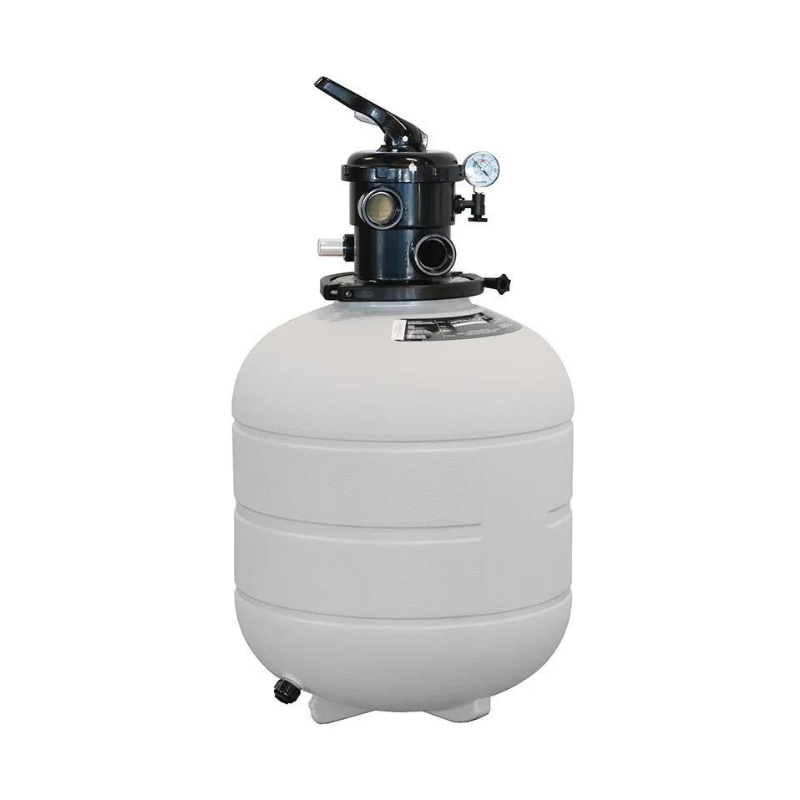

Optimises the filtration of your pool with the Filter Millennium AstralPool. Its valve upper and its high filtration capacity guarantee an exceptional performance and a long service life.
- Sand filter of AstralPool with top outlet (top).
- Manufactured in plastic as a single piece without joints.
- multiport valve upper Included.
- opening of the lid of the filter using system of clamp.
- Equipped with pressure gauge and bleed valves of air and water Manual integrated.
- Maximum pressure of working: 2,5 kg/cm² (Ø380, Ø430, Ø480), and 2 kg/cm² (Ø560 and Ø660).
Discover the Filter Millennium AstralPool: the solution perfect to keep your pool crystal-clear and clean. With its innovative design and its easy maintenance, you will enjoy a water purificed without effort.
features Filter Millennium Lateral AstralPool
- Sand filter with top outlet (top) . Also available with side outlet depending on its convenience and the space available for its ubication.
- Body of the filter manufactured in plastic non-degradable and resistant to chemical agents and weather. Hechos to work in the intemperie.
- Equipped of series with multiport valve of 6+1 ways of AstralPool of new generation with seal of bayoneta for filtration, backwash, rinse, recirculation, drain, closed e invernaje (all the entred and salidas are comuniced).
- Clear lid to facilitate the visual inspection and the access to the interior of the filter in the case of Side Valve.
- diffuser upper indoor to ensure a buena water distribution encima of the filter bed.
- fittings indoor of 1½" for a performance continuous.
- manual air bleed valve for hacer salir the air of the interior of the filter if is necessary.
- Integra a manual water bleed valve in the body of the filter for an easy drainage of the filter without loss of sand.
- In its part lower, incorporates a collector using arms to ensure a flow balanced and the backwash of the filter.
- Pressure Gauge for the control of backwash of the filter.
Dimensions and technical specifications Filter Millennium of AstralPool
| CODE | 33814 | 33815 | 33816 | 33817 | 33818 | |
|---|---|---|---|---|---|---|
| Ø D (mm) | 350 | 450 | 500 | 600 | 650 | |
| H (mm) | 755 | 760 | 855 | 850 | 890 | |
| M (mm) | 393 | 434 | 417 | 442 | 479 | |
| N (mm) | 268 | 309 | 292 | 317 | 354 | |
| Connections | 1½" | 1½" | 1½" | 1½" | 1½" | |
| Flow Rate m³/h (up to 50 m³/h/m²) | 5,5 | 7 | 9 | 12 | 17 | |
| Pool (volume) m³ (8 h)* | up to 40 | 40-50 | 50-75 | 75-100 | 140 | |
| Carga of sand (kg) | 40 | 60 | 80 | 110 | 180 | |
| Carga of glass (kg) | grade 1 (57011) | 35 | 50 | 70 | 90 | 150 |
| grade 3 (57013) | 0 | 0 | 0 | 0 | 25 | |
| Pressure max of working (kg/cm²) | 2,5 | 2,5 | 2,5 | 2,0 | 2,0 | |
| Net weight (kg) | 12 | 13,5 | 15 | 16,5 | 24 |
Referencia:
33814
Filter Millennium AstralPool with Top Valve for
€285.00
Referencia:
33815
Filter Millennium AstralPool with Top Valve for
€309.00
Referencia:
33816
Filter Millennium AstralPool with Top Valve for
€329.00
Referencia:
33817
Filter Millennium AstralPool with Top Valve for
€419.00
Referencia:
33818
Filter Millennium AstralPool with Top Valve for
€469.00
chat
Comments (0)
Optimises the filtration of your pool with the Filter Millennium AstralPool. Its valve upper and its high filtration capacity guarantee an exceptional performance and a long service life.
- Sand filter of AstralPool with top outlet (top).
- Manufactured in plastic as a single piece without joints.
- multiport valve upper Included.
- opening of the lid of the filter using system of clamp.
- Equipped with pressure gauge and bleed valves of air and water Manual integrated.
- Maximum pressure of working: 2,5 kg/cm² (Ø380, Ø430, Ø480), and 2 kg/cm² (Ø560 and Ø660).
