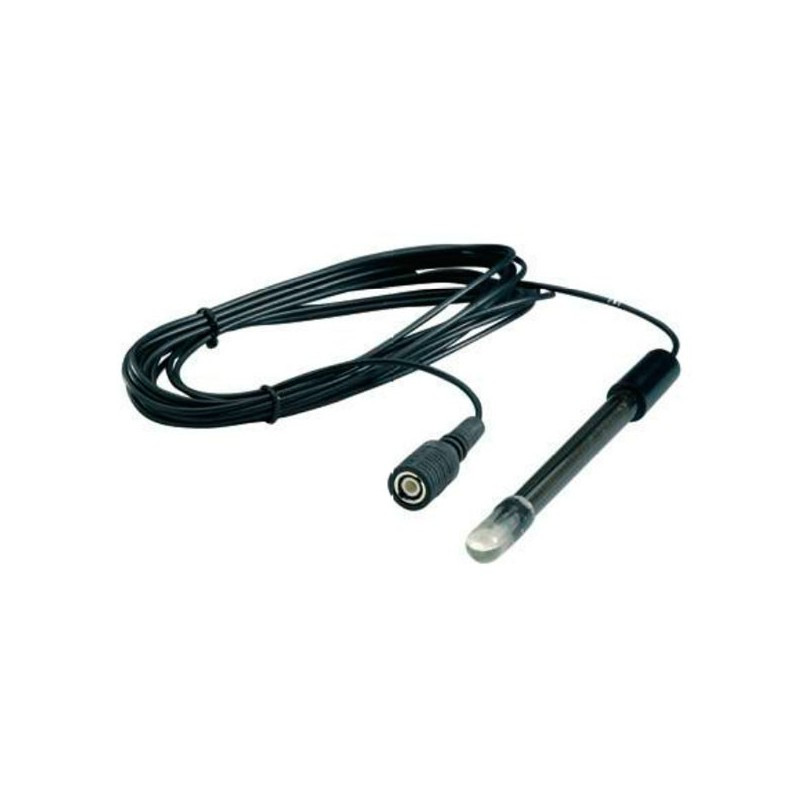

Electrode PH Dosing Pump Mypool Probe Sensor

The electrode of pH 5Ml BNC Plastic is a sensor of high Precision designed for measure the value of the pH and the ORP (potencial RedOx) in the water. This electrode uses especially in dosing pumps from the brand MyPool of CTX Certikin, and encarga of measure and transmitir the value of the pH to the system of dosing to keep the pool water or spa in conditions ideal.

The electrode sumerge in the pool water and measures continualy the pH level. The signal electrical genered for the electrode is envied to the dosing pump, that adjusts automaticaly the quantity of product chemical necessary to keep the pH in the level deseed.

Key Features of the electrode pH 5Ml BNC of AstralPool

•

• measurement precisa: measures and transmite the value of the pH with high Precision, ensuring a control effective on the water quality.

• Connection BNC: Comes with a connection BNC standard for an easy integration with systems of control and dosing.

• Cable of 5 metres: The electrode includes a cable of 5 metres, allowing a installation flexible and suitable a various configurations.

• Compatibility: Is compatible with dosing pumps MyPool of CTX Certikin, providing a measurement constant and reliable of the pH in pools and spas.


Instructions installation and Use of the electrode pH 5Ml BNC of AstralPool

1.

2. Installation of the electrode:

   •

   • Ensure of which electrode of pH this Correctly connected to the system of dosing of the pump MyPool.

   • Coloque the electrode in the line of water flow, Ensuring of that this instaled in the direction correct.

   • The electrode must ir in the line of flow before of the connection of injection-moulded of the product chemical, to ensure which meditions sean precisas.

   • Evite which electrode between in contact with air, as this can afectar its Precision.




3. Verification of the connection:

   •

   • Revise which connection BNC this firmly asegured to ensure a measurement stable.




4. Use during the operation:

   •

   • The electrode medirá of way continuous the pH of water and transmitirá the value to the system of dosing, ajustando automaticaly the quantity of product chemical necessary.

   • Is important carry out a maintenance regular and verificar the calibration of the electrode to ensure its operation suitable.





Recomendations of Maintenance of the electrode pH 5Ml BNC of AstralPool

•

• Cleaning: remains the electrode clean and free of debris to ensure Readings precisas. It is recommended use a solution of cleaning specialised for electrodos of pH.

• Avoid the Exposure to the air: The electrode must estar sumergido in water to prevent which measurement vea altered for the contact with the air.

• Calibration: Realice the calibration regular of the electrode usando the solutions of calibration adecued to keep the Precision of the meditions.


Applications of the electrode pH 5Ml BNC of AstralPool

•

• Ideal for systems of dosing of pH in pools and spas domestic.

• Compatible with the dosing pumps MyPool of CTX Certikin, ensuring a control automatic and preciso of the levels of pH.
