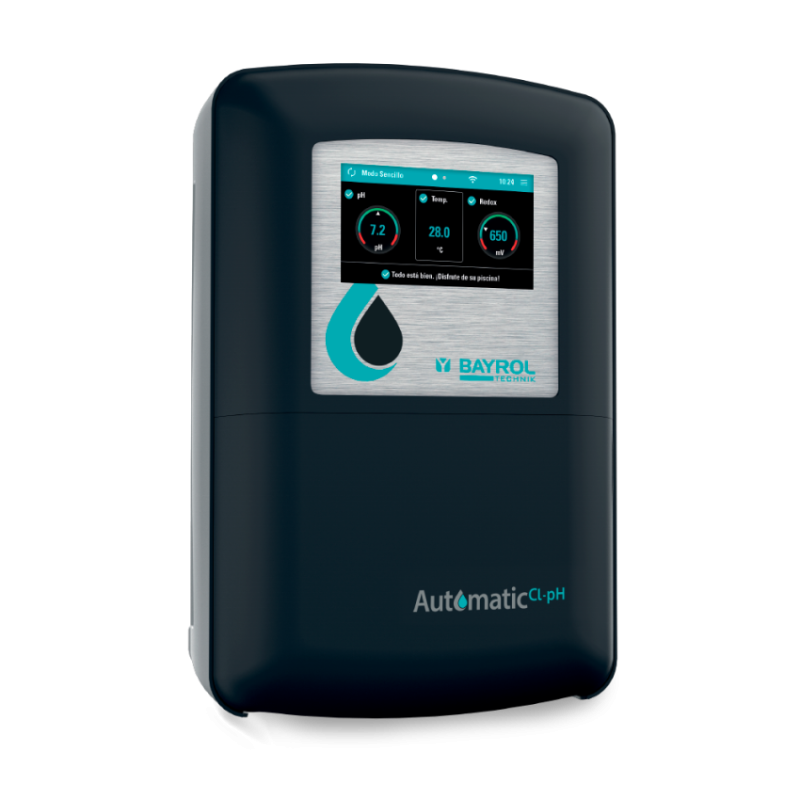

Dosing Pump Bayrol Automatic Cl-pH with Pump Peristaltic 6 Litres and WiFi

The Automatic Cl-pH is a product innovative desarrolled for Bayrol Technik in Alemania, that measures and regula the pH and the chlorine inyectando continualy products of water treatment depending on whether necessary. Ensures a treatment more eco-friendly of the pool, a water of optimum quality without risk of sobreconsumo.

technology Smart&Easy

easy to use, both for principiantes and expertos

Configuration very simple and reliable operation with avisos visuales and sonoros.

Interfaz of usuario very easy to use e intuitive, high display screen touch of 4,3".

Functions of software inteligentes, as asistent for the first puesta in operation e instructions flow a flow in case of mensajes of advertence.

Module WiFi integrated

Gestione the Automatic Cl-pH a distance

Equipped of series with a module WiFi integrated that allows control the aparato a distance using Smartphones or PC.

Access complete to the ajustes and control total of your pool, even when usted is ausente.

Analysis and dosing precise

Ensures a dosing precisa of the cantities necesary in all point

test and dosifica with Precision the pH and the chlorine (using measurement redox).

Ensures a balance stable of water and allows a disinfection safe with a content optimum of desinfectant.

The injection-moulded of chlorine and pH-Minus liquid realiza using dosing pumps whisper-quiet and potentes.

Compact

Thanks to its compact design, the installation e integration in the local technical is very simple and ahorra time, even in small espacios.

Simple and safe

The technology Smart&Easy ensures a puesta in operation easy and a reliable operation. Also includes avisos visuales and sonidos.

Quality probed

designed and manufactured for Bayrol Technik in Alemania, the Automatic Cl-pH beneficia of rigurous controles of quality in every the cadena of production, from its components mechanical and electrical up to its montaje.

Technical Data - Bayrol CL-pH

Kits opcionales:

Kit Smart&Easy Connector Flow Control of the flow (Ref 150060)

The Kit Smart&Easy Connector Flow, available Optionally, allows install the sondas of pH, redox and losinyectores of pH-Minus Liquid Domestic (pH-Plus Liquide) and Chloriliquide in a place especially comfortable and fácilde keep.The Smart&Easy Connector also includes a interruptor deflujo of Ladle integrated, that connects to the AutomaticCL-pH using a simple connection enchufable.

Kit Level Automatic (Ref. 150070)

The Kit Level Automatic Dual, available Optionally, allows control directaly the level of llened of the containers for pH-Minus Liquid Domestic or pH-Plus Liquide and Chloriliquide using two cañas of suction of easy handling. When the container is vacuum, muestra a mensaje in the display screen. The Kit replace to the filters of pie supplied, for it that can conectarse easily to the connection prevista of Level pH and Level Cl and montarse in the envases of liquid correspondinges with the helps of a plug of thread.

Kit Temperature Automatic Control of the temperature (Ref. 150090)

With the Kit Temperature Automatic, available Optionally, is possible measure the temperature of pool water. The sensor of temperature can instalarse in the circuit of filtration, in a point suitable for the measurement of the temperature, using its collar supplied.

Content:

• AutomaticCl-pH
• Hose of descarga, x 2
• Hose of suction, x 2
• Plug for the garrafa with Port for the hose of suction, x 2
• Collar Ø 50 mm, x 4
• Assembly of montaje in wall
• Filter of suction, x 2
• Prensaestopas for the Probe, x 2
• Inyector, x 2
• Probe of pH
• Probe of Redox
• Solution limpiadora for the Probe
• Solution buffer pH 7
• Solution buffer Redox 465 mV
• Cinta of PTFE

Flow Rate of the dosing pump

• Flow maximum: 2,4 l/h
• Pressure of descarga maximum: 1.5 bar

Interfaz

• Display screen touch of 4.3 with colour

Safety

• Alarmas of measurement high and low
• Alarma of time of dosing
• Opcional: flow sensor rate
• Inlet for the connection of filters with sensores of level low (filters opcionales)

measurement

• pH. Valor that indicates the grade of acidez or alkalinity of water. A buen pH (between 7,0 and 7,4) is essential for the effectiveness of the products of treatment.
• Redox
• Opcional: Temperature of water

Medidas

• Housing: Height 320 x length 210 x depth 93.5mm
• Denomination of protection: IP 65
• Weight: 1,9 kg

Advertencias: To prevent riesgos for the salud, hay that ensure a installation and a operation correctos of the system of dosing of and chlorine.

For it both, the installation and the puesta in operation of the Automatic Cl-pH must ser realized for a installer specialised!

Read atentaly the Manual of instructions of the equipment for familiarizarse with its operation and preste special atention to the standards e instructions of safety proporcioned.

If has any pregunta, for favour contacte its installer specialised.
