Ventilador and Lid Pump Victoria Plus and Sena 0,75 Cv - 1 Cv AstralPool 4405010147
ASTRALPOOL
Referencia: 4405010147

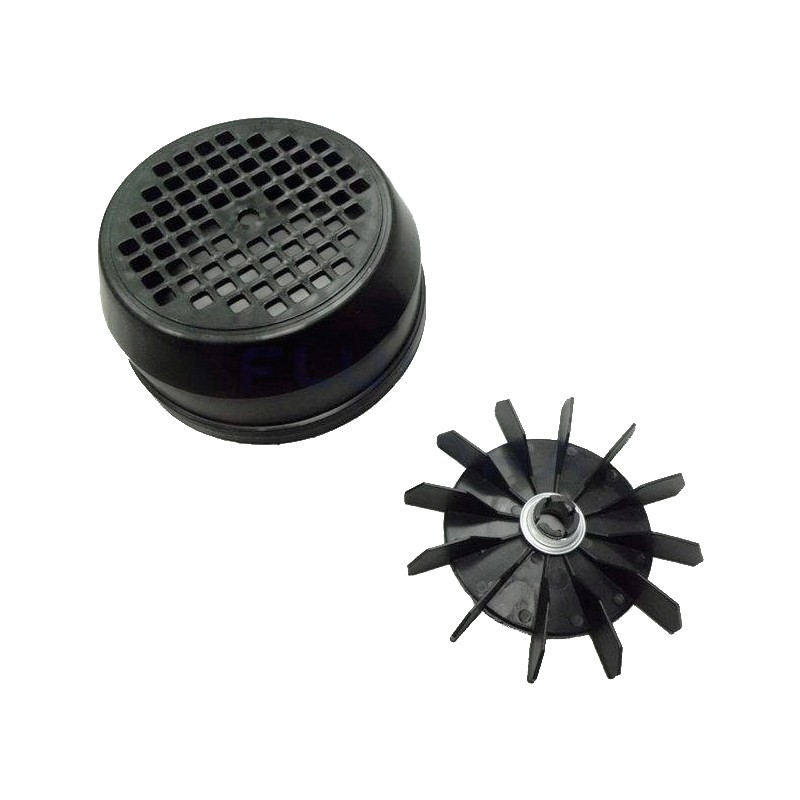

The Assembly Fan-Lid of AstralPool, with reference 4405010147, is a genuine spare part designed to optimise the operation of the pumps of filtration from the brand. This assembly includes the fan and the lid of protection, that are essential for the refrigeration and protection of the motor in pumps of filtration. To The improve the ventilation, ensures the disipation of heat and prolonga the service life of the components internos of the pump. Compatible with models as Victoria Plus and Sena of Power outputs between 0,75 and 1 CV, this kit allows keep the optimum performance and the durability of the system of bombeo.
- Genuine spare part.
- Wide Compatibility: Compatible with a wide range of models of pumps AstralPool, including Sena, Vitoria, Columbia, Nautilus and Filter Millennium, between other.
The Assembly Fan-Lid (0,75-1 CV) of AstralPool is a complete solution to keep the efficiency and durability of pumps of filtration. Thanks to its design resistant and compatibility with a wide range of models, this assembly is an option reliable for users seeking an optimum performance and an easy installation in its equipment of filtration for pools.
Technical specifications and functionality of the Assembly Fan-Lid for pumps of AstralPool
- material: This assembly is manufactured with high-quality materials and resistance, providing a protection reliable against wear and the agents externos that afectan the motor of the pump.
- Dimensions: 0,15 x 0,07 m
- Gross weight and neto: 0,135 kg.
- Improves the ventilation and the disipation of heat in the motor of the pump.
- Protects the motor of debris and particles, Extending its durability and reducing the need of maintenance frecuent.
- Optimum Performance of the Motor: To The permitir a ventilation efficient, this assembly of fan and lid prevents the overheating of the motor and ensures that funcione and its maximum capacity, extending its service life.
- Facility installation: Its installation is simple and not requires tools complejas, it that allows to the pool owner carry out the reemplazo without the need for asistence technical specialised, Minimising tiempos of inactivity.
- Compatibility and Models Compatible: This assembly is compatible with a wide range of models of pumps of AstralPool, as:
- Pump Sena: Models 25463, 25464, 25465, 25466, 25467, 25468.
- Monobloc Filter Millennium: Models 25463.
- Pumps Nautilus: Model 25483, 25484, 25485, 25486.
- Pump Victoria Plus: Models 38771, 38773, 38772, 38774.
- Pump Glass Plus: Models 15238 a 15243.
- Pump VICTORIA DUAL-SPEED: Model 45861.
- Pump SPRINT: Models 05092 and 05086.
- Pump COLUMBIA: Models 32768 and 32769.
- Pump Ontario: Model 34396.
- Pump VICTORIA: Models 20599, 20602, 20600.
- Pump Aquamar: Models 24580, 24586, 24585, 24579.
- Pump ASTRAMAX: Models 15746, 15747, 15748.
- Pump EUROPA: Models 19930, 19931, 19929.
Procedimiento installation of the Assembly Fan-Lid of AstralPool
- Desconecta the pump of the fountain of energy to ensure the safety.
- Retira the lid and the fan antiguos of the motor.
- Clean the area of montaje to remove any residuo that pudiera afectar the installation of the new assembly.
- Coloca the new fan and its lid Ensuring of that are Correctly alineed.
- Adjusts the screws if is necessary and check which fan gire librely without blockages.
