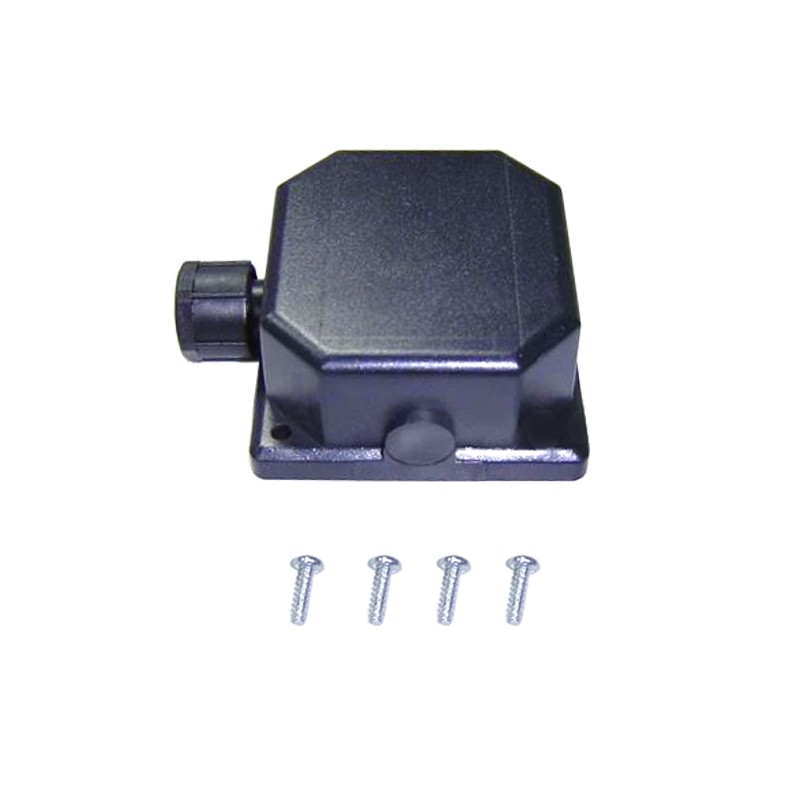

Assembly Box Bornes Pumps 63-71 Tri AstralPool 4405010156

The Box Bornes 1/2-3/4-1 CV III of AstralPool (reference 4405010156) is a official spare part designed for various pumps three-phase from the brand AstralPool, utilized in filtration pool systems. This component is essential to ensure the correct connection of the bornes of the motor of the pumps, keeping the connections electrical selled and protegidas, it that contribuye to the durability and the efficient operation of the pump.

Technical specifications and functionality of the Box of Bornes 1/2-3/4-1 CV III for pumps of AstralPool

The box of bornes has the function of protect and seal the connections electrical of the motor, ensuring that not haya contact with water or moisture, it which could causar cortocircuitos or fallos in the system electrical of the pump. To The keep the connections seguras and protegidas, prolonga the service life of the motor and ensures an optimum operation of the pump of filtration.

• material: Manufactured with resistant materials, this box ensures a protection suitable for the connections electrical of the motor and a sealing efective to prevent the inlet of water or moisture.
• Dimensions: 0,08 x 0,095 x 0,03 m.
• Gross weight and neto: 0,05 kg.
• Protection electrical Safe: Its principal ventaja is offer a protection complete to the connections electrical of the motor of the pump, it that prevents possible damage and ensures a performance safe and reliable.
• ease installation: The component is easy to install and reemplazar, it that facilitates the maintenance of the filtration system without the need of compliced modifications.
• Compatibility and Models Compatible: The Box Bornes 1/2-3/4-1 CV III is compatible with a Variety of pumps AstralPool, that includes the siguientes models:
  • Pump Sena: Models 25464, 25466, 25468.
  • Pump Alaska Plus: Model 51868, 51863, 51858.
  • Pump Victoria Plus: Models 3877, 38772, 38774.
  • Pump Nautilus: Models 25482, 25484, 25486.
  • Pump Victoria Plus Silent: Model 65558, 65561, 65563, 65565, 65567, 65570, 67547 and 67548.
  • Malawi SP: Model M00594, M00596, M00592, M00592.
  • Pump GLASS PLUS: Model 15239, 15241, 15243.
  • Pump VICTORIA: Model 20604, 24337, 20597, 20598, 20599, 20602, 20603, 20605, 20607, 20606 and 20600.
  • Pump Erie: Model M00876.
  • Pump ADAPT PRO UT: Model M00573.
  • Pump Sprint: Model 05086.
  • Pump Aquamar:Model 24584, 24585, 24586.
  • Pump Malawi SP: M00594 and M00592.

Procedimiento installation of the Box of Bornes 1/2-3/4-1 CV III of AstralPool

The installation of the Box Bornes 1/2-3/4-1 CV III is a Process simple that can ser realized for a technical or for the pool owner of the pump, always and when sigan the instructions adecued to ensure a safe installation and correct. Here you dejamos a flow a flow for realizarlo:

1. Before of empezar with the installation, make sure of desconectar completaly the pump of the fountain of alimentation electrical to prevent any risk of descarga.
2. Retira the lid of the compartimiento where are the bornes of the motor of the pump. This can implicar aflojar any screws or nuts that maintain the lid in its place.
3. If these reemplazando a box of bornes damaged or desgasted, retira cuidadosaly the component viejo. For hacerlo, desconecta the cables of the connections electrical, Ensuring of recordar or marcar the connections of each cable to facilitate the Process installation of the new box of bornes.
4. Coloca the new Box Bornes 1/2-3/4-1 CV III in the same place which previous, Ensuring of which connections electrical coincidan with the correspondinges. Make sure of which box this well posicioned and alineed.
5. connects the cables of alimentation of the motor to the new box of bornes, siguiendo the esquema genuine or the indications of the fabricant to prevent possible errores connection.
6. A vez that hayas connected all the connections electrical, make sure of which box of bornes this well asegured in its place and cierra the compartimiento of the motor, volviendo a atornillar the lid Correctly.
7. Before of encender the pump, revisa all the connections to ensure of that are well fijas and that not haya no cable suelto. Luego, reconecta the pump to the flow electrical.
8. Enciende the pump and check its operation. Make sure of which box of bornes this well selled and not haya leaks of electricity ni ruidos anormales. If all operates Correctly, the reemplazo will be completed.
