Assembly Ventilador Lid Victoria Plus Silent 0,5 a 1 Cv

The Assembly Fan Lid Victoria Plus Silent 0,5 a 1 CV is a genuine spare part of AstralPool designed specifically for the pumps Victoria Plus Silent with Power outputs of up to 1,5 CV. This assembly includes both the fan as the lid and the fixings necesary for fijarlo Correctly, providing a complete solution and efficient for your filtration system.

This component is essential to keep the motor of the pump in operation suitable, preventing the overheating to the ensure a suitable circulation of the air. The lid protects the fan and the motor, ensuring its durability, while which screws included allow a quick installation and safe. Keep this assembly in buen condition is crucial to extend the service life and effectiveness of your pump of filtration.

Technical Specifications of the Assembly Fan Lid Victoria Plus Silent of AstralPool

• Reference of the Product: 4405010635

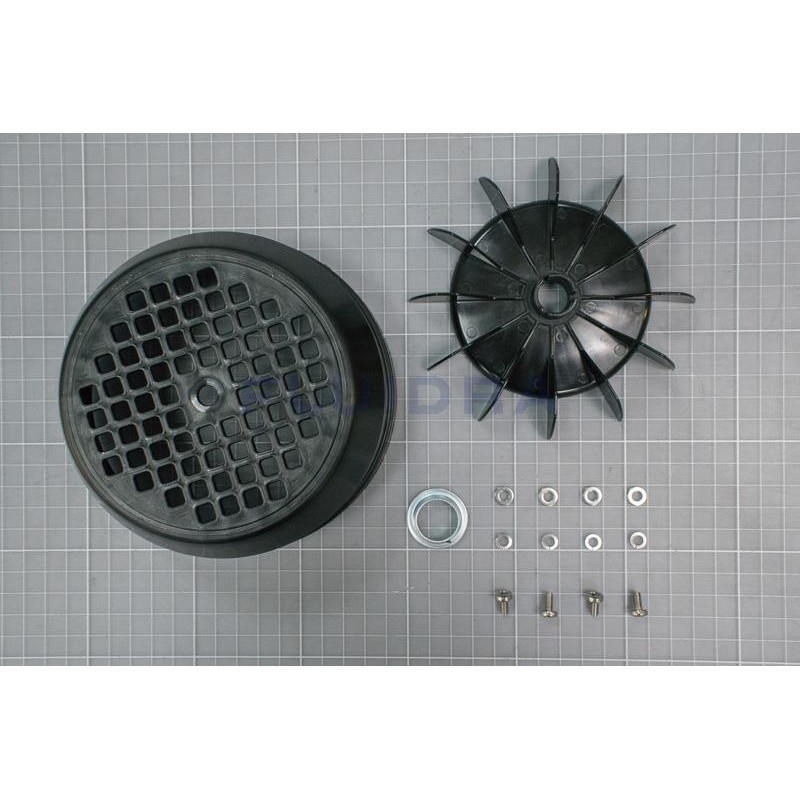

• Components Included: Fan, lid and fixings for fixing.
• Power Compatible: Up To 1 CV (model single-phase).
• Function Principal: Avoid the overheating and ensure an efficient performance of the motor of the pump.
• material: Manufactured with high-quality materials for a greater durability and resistance to the wear.
• Dimensions:
  • Width: 0.145 m
  • Length: 0.145 m
  • Height: 0.065 m
• Gross Weight: 0.24 kg
• Net Weight: 0.24 kg

Compatibility of the Assembly Fan Lid Victoria Plus Silent of AstralPool

This spare part is completaly compatible with the siguientes pumps of AstralPool:

• Pump Victoria Plus Silent: Models 65557, 65558, 65560, 65561, 65562, 65563
• Pump Nautilus Silent: Models 72554, 72549, 72551, 72553, 72550, 72552
• Malawi SP: Models M00591, M00593, M00594, M00592
• ADAPT PRO UT: Models M00573
• Pump Erie: Models M00876, M00874
• Pump Hydrosud HSX: Models M00873, M00875

Operation and Benefits of the Assembly Fan Lid Victoria Plus Silent of AstralPool

The assembly of fan and lid performs a papel crucial in the system of refrigeration and protection of the pumps Victoria Plus Silent. A continuation, stands outn its main benefits:

• Prevention of the overheating: The fan ensures a circulation of air suitable, it that allows keep the temperature of the motor inside of the levels optimum of operation.
• Protection of the Motor: The lid acts as a barrera against possible damage externos, protecting both the fan as the motor of the pump.
• Fixing Solid: The screws included ensure that both the fan as the lid are Correctly instaled and sujetos, it that minimises the risk of desajustes during the operation of the pump.
• Improves of the Performance: Keep this assembly in perfect condition helps to keep the motor of the pump working efficiently and whisper-quiet, it that traduce in a performance more stable and less ruido during the operation.
• Durability: To The ser a genuine spare part, ensures the maximum compatibility and durability, ensuring a operation prolonged without problemas.

Instructions of Use e Installation of the Assembly Fan Lid Victoria Plus Silent of AstralPool

The assembly fan and lid is a part crítica to keep the motor of the pump in conditions optimum. If the fan damages or bloquea, the motor can sobrecalentarse, it that can reduce the service life of the pump e even causar fallos irreparables. Reemplazar the assembly of fan and lid of way oportuna ensures constant performance and prolonged of the pump of filtration.

1. Desconectar the pump: Make sure of which pump this apaged and desconected of the fountain of energy before of proceder with the installation.
2. Retirar the lid antigua: If these reemplazando a lid or fan viejo, comienza for retirar the screws that sujetan the lid vieja. Ten careful of not damage other parts to the desmontar.
3. install the fan and the lid nuevos: Coloca the fan and the lid in its position corresponding, Ensuring of that queden Correctly alineed and well fijados.
4. Ensure the fixing: Uses the screws proporcioned to ensure the fan and the lid of way firme, preventing that muevan or aflojen with the time.
5. Verificar the montaje: Make sure of that all this Correctly instaled and ajusted before of proceder with the reconnection of the pump.
6. Probar the pump: connects the pump and check which fan funcione Correctly and that not haya ruidos ni vibrations anormales.

tips of Maintenance of the Assembly Fan Lid Victoria Plus Silent of AstralPool

• Revisa periodicaly the condition of the fan and the lid to ensure of that not are obstruidos ni Damaged.
• Make sure of which screws are well ajusted to prevent vibrations or movimientos that puedan afectar the operation of the pump.
• If the fan damages or pierde effectiveness, reemplázalo of inmediato to prevent the overheating of the motor.
