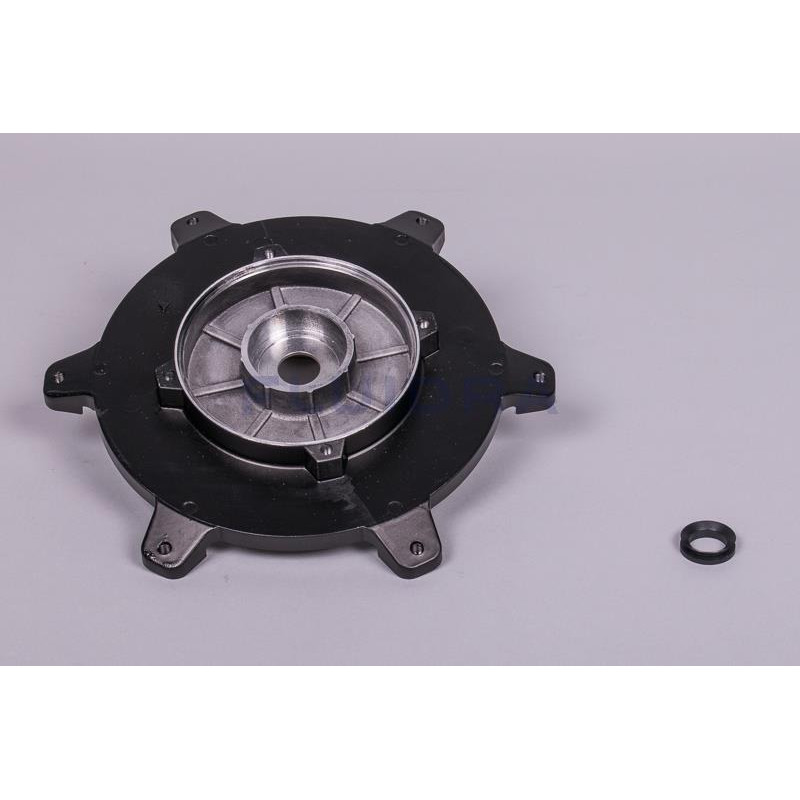

Flange Motor Delantera Victoria Plus 0,5 a 1 Cv

The flange Motor Delantera for the pumps Victoria Plus Silent of AstralPool is an essential component to keep the optimum performance of the pumps of filtration. This official spare part is specifically designed for models with power of up to 1 CV, offering an effective solution for reemplazar a flange desgasted or damaged, ayudando a restore the operation correct of the motor of the pump.

The correct operation of this part is vital to ensure the stability and durability of the motor, preventing possible fallos or desgastes prematuros that puedan afectar the performance general of the filtration system. With the installation of this flange genuine, ensures which motor this Correctly alineed and working and its maximum capacity.

Technical Specifications of the flange Motor Delantera Victoria Plus 0,5 a 1 CV of AstralPool

• Reference of the Product: 4405010604
• Applications: Pumps Victoria Plus Silent, up to 1 CV of power
• material: Thermoplastic of high resistance, ensuring a long service life and resistance to the conditions of working exigentes.
• Dimensions:
  • Width: 0.25 m
  • Length: 0.25 m
  • Height: 0.035 m
• Gross Weight: 0.85 kg
• Net Weight: 0.85 kg
• includes: 1 flange motor delantera

Compatibility of the flange Motor Delantera Victoria Plus 0,5 a 1 CV of AstralPool

This spare part is compatible with the siguientes pumps from the brand AstralPool:

• Pump Victoria Plus Silent: Models 65557, 65558, 65560, 65561, 65562, 65563
• Victoria Plus Silent Variable Speed: Models 67547, 67548
• Pump Nautilus Silent: Models 72554, 72549, 72551, 72553, 72550, 72552
• Pump Erie: Models M00876, M00874
• Pump Hydrosud HSX: Models M00873, M00875

Operation and Benefits of the flange Motor Delantera Victoria Plus 0,5 a 1 CV of AstralPool

The flange Motor Delantera is responsable of ensure the stability of the motor of the pump. Its installation suitable ensures which motor remains alineed and safe inside of the structure of the pump, it that allows which filtration system opere without problemas. any of the benefits key of this spare part are:

• Stability: Prevents the movement and vibrations innecesary that could afectar the operation of the motor.
• Durability: To The estar manufactured in material Thermoplastic of high resistance, soporta conditions of working exigentes, increasing the service life of the motor and of the pump.
• efficient performance: Keeps the motor working efficiently, it that optimises the performance general of the filtration system.
• ease installation: To The ser a official spare part of AstralPool, its installation is quick and simple, without the need for ajustes additional.

Instructions of Use e Installation of the flange Motor Delantera Victoria Plus 0,5 a 1 CV of AstralPool

The reemplazo of the flange motor delantera is crucial to ensure the stability and the performance of the motor of the pump. A flange deteriored or damaged can Generate vibrations excesive, wear prematuro of other components and a loss of efficiency in the filtration system. To The use this genuine spare part, ensures a installation suitable and a greater durability of the pump, it that allows a maintenance more simple and reduces the posibility of reparations costous long-term.

1. Desconectar the pump: Apaga and desconecta the pump of the fountain of alimentation before of carry out any working.
2. Acceder to the motor: Retira the covers or components that bloqueen the access to the flange motor delantera.
3. Retirar the flange antigua: If the flange previous is damaged or desgasted, remove it with careful to prevent damage other parts of the motor.
4. Colocar the new flange: Coloca the new flange motor delantera in its place, Ensuring of that this well alineed and encaje Correctly.
5. Ensure the part: Reinstala any component that haya retired and make sure of that all the screws are well ajusted to ensure which flange this firmly sujeta.
6. Verificar operation: A vez which flange this instaled, connects the pump and realiza a prueba to ensure of that all funcione Correctly, without ruidos ni vibrations anormales.

tips of Maintenance of the flange Motor Delantera Victoria Plus 0,5 a 1 CV of AstralPool

• Revisa periodicaly the flange motor delantera to ensure of that not haya signos of wear or damage that puedan comprometer its performance.
• Keep the area alrededor of the motor clean of dust and escombros to prevent the acumulation that could afectar the performance.
• If experimentas vibrations or ruidos inusuales, check which flange this Correctly instaled and alineed.
