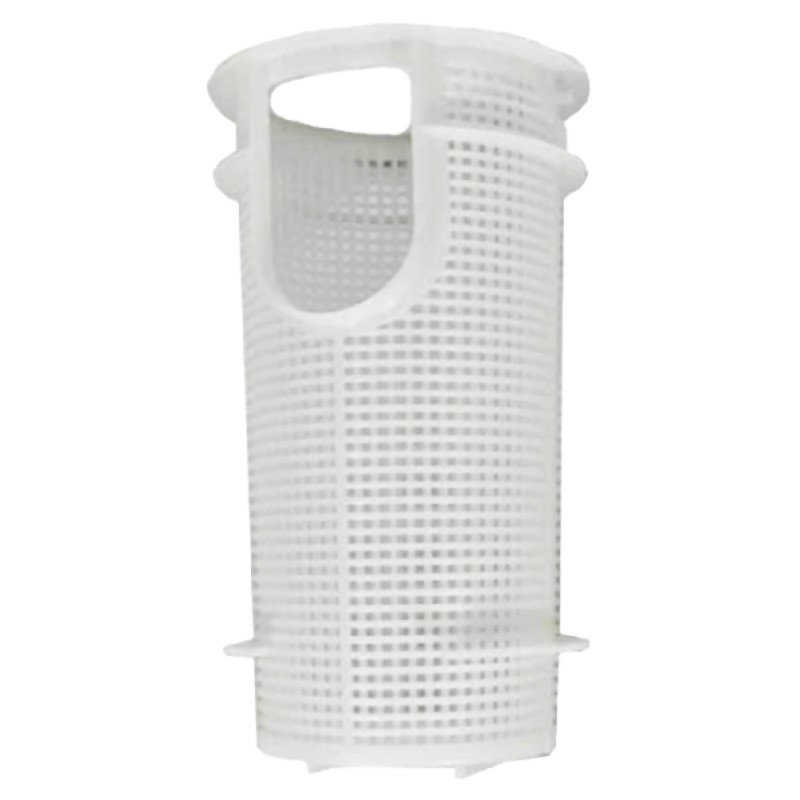

Cesto Pre-filter Pump Victoria Plus AstralPool 4405010105

The pre-filter Basket for Pump Victoria Plus of AstralPool (reference 4405010105) is an essential component in the filtration system, designed for retain leaves, dirt and other debris large before of that ingresen to the parts hydraulic of the pump. This new model of pre-filter reforzed is compatible with the pumps Victoria Plus and other models of AstralPool, offering a greater resistance and durability to withstand the flow constant of water in the pool.

Technical specifications and functionality of the pre-filter Basket for pumps of AstralPool

• material: Thermoplastic reforzed, resistant to chemical products and presiones of the filtration system for pools.
• Dimensions: 0,139 x 0,208 x 0,118 m.
• Net weight: 0,232 kg.
• Protection of the hydraulic system: The pre-filter basket acts as a barrera inicial, atrapando the debris large that, of other way, could damage or desgastar the parts internas of the pump, as the impeller and the gaskets.
• Reduction of Maintenance of the System: To The atrapar debris of high size, the basket helps to reduce the carga of working of the filter principal, alongndo its intervalos of cleaning and increasing its service life.
• Efficiency Operative: A pre-filter basket in buen condition allows a flow continuous of water, it that improves the energy efficiency and ensures a operation stable of the filtration system.
• ease installation and Cleaning: The design of the basket facilitates its installation and extraction, allowing a maintenance quick and effective without tools additional.
• Compatibility: The pre-filter basket is compatible with a wide range of pumps AstralPool, it that it makes in a spare part versatile and very solicited for the maintenance for pools. The models compatible includes:
  • Pump Victoria Plus: Models 38771, 38777, 38773, 38775, 38770, 38780, 38772, 38776, 38769, 38774, 38778, 38779, 53675, 41224
  • Pump Victoria Plus Silent: Models: 65557, 65558, 65560, 65561, 65562, 65563, 65564, 65565, 65566, 65567, 65569, 65570
  • Pump Nautilus: Models:25480, 25481, 25482, 25483, 25484, 25485, 25486, 25487, 25488, 25489, 25490, 25491, 25492
  • Victoria Plus Silent Variable Speed: Models: 67547, 67548
  • Pump Verdon IS: Models: 73676, 73678, 73681, 73682, 73683, 73680, 73686, 73685, 73684, 73687
  • Pump GLASS PLUS: Models: 15238, 15239, 15240, 15241, 15242, 15243, 15244, 15245, 15246, 15247, 15248
  • Pump Nautilus Silent: Models: 72554, 72549, 72551, 72553, 72558, 72556, 72560, 72559, 72555, 72550, 72557, 72552
  • Pump Victoria Dual-Speed: Models: 45708, 45861, 45658, 45657
  • Pump Malawi SP: Models: M00580, M00591, M00593, M00594, M00596, M00592, M00595
  • ADAPT PRO UT: Models: M00578, M00573
  • Pump Aquamar: Models: 24589, 24582, 24584, 24580, 24586, 24587, 24581, 24583, 24578, 24585, 24579, 24588
  • Pump Sprint:Model 05092, 23043, 05086, 23024.
  • Pump Victoria: Models: 20604, 24337, 20597, 20598, 20599, 20602, 20603, 20605, 20607, 20606, 20600
  • Pump Erie: Models: M00878, M00876, M00874, M00877, M00879, M00880
  • Pump Hydrosud HSX: Models: M00873, M00875
  • Pumps Ultraplus / Superplus / Starplus: Model: M00540

Procedimiento installation of the pre-filter Basket for pumps of AstralPool

1. Apaga the filtration system and desconecta the pump of the fountain of alimentation for greater safety.
2. Abre the lid of the pre-filter and coloca the basket in the position corresponding, Ensuring of that encaje well in the space designed.
3. Empty the pre-filter basket with frequently, on all after of pasar the pool cleaner Manual. For this, retira the basket, deshazte of the debris and enjuágalo with clean water before of volver a colocarlo.
4. During each cleaning, inspecciona the basket for detectar possible signos of wear or damage. In case of fisuras, considera reemplazar the basket to ensure a operation safe and efective of the system.
