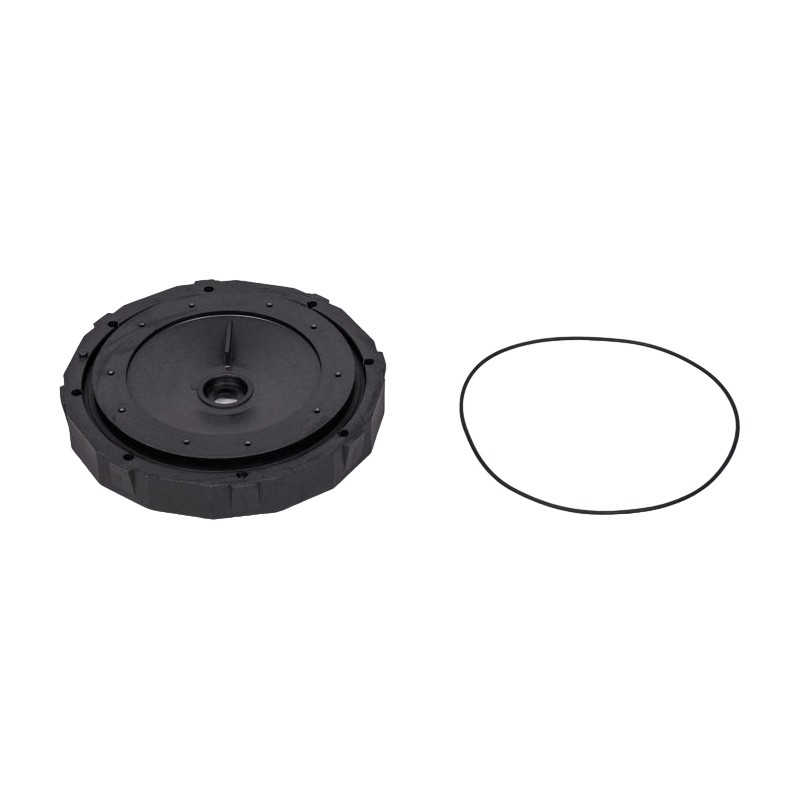

Flange Seal Mechanical Victoria Plus AstralPool 4405010132

The flange Seal Mechanical is an essential component for the correct operation of the pumps AstralPool, specifically designed for the models of the range Victoria Plus. This genuine spare part, with reference 4405010132, ensures which seal mechanical remains in its place, preventing leaks of water and ensuring an efficient operation of the pump.

Is a part crítica of the system of sealing, that, to the estar in perfect condition, contribuye an optimum performance and prolonga the service life of the pump of filtration. The flange includes a O-ring of watertightness, that ensures that not haya filtrations of water during the operation of the pump, a appearance Essential to keep the efficiency and safety of the system.

Technical specifications of the flange Seal Mechanical for pumps of AstralPool

• Dimensions: Width: 0.12 m, Length: 0.12 m, Height: 0.045 m
• Gross weight: 0.518 kg
• Net weight: 0.518 kg
• Ensures the correct colocation of the seal mechanical to prevent leaks.
• includes O-ring to ensure the watertightness of the system.
• Compatible with various pumps AstralPool of the ranges Victoria Plus, Sprint, Astral Victoria and Victoria Dual Speed.
• Design robust and durable, ensuring an efficient performance and prolonged.
• Not compatible with models Victoria Plus Silent.

Process installation of the flange Seal Mechanical for pumps of AstralPool

1. Desconectar the pump: Before of carry out any action, desconecta the pump of the red electrical to prevent any accident.
2. Retirar the flange previous: Uses the tools adecued for quitar the flange of the alojamiento of the seal mechanical deteriored, Ensuring of not damage other parts during the Process.
3. check the condition of the seal mechanical: check which seal mechanical this in buen condition. If also needs ser reemplazed, hazlo before of install the new flange.
4. install the new flange: Coloca the flange of way correct in its alojamiento, alineando the holes for that encaje perfectly.
5. Colocar the O-ring: Make sure of colocar the O-ring Included in its place to ensure the watertightness of the system.
6. Adjust Correctly: Aprieta the screws uniformly, Ensuring of which flange sits well fija and the seal mechanical in its sitio.
7. Revisar leaks: A vez instaled the flange, connects nuevaly the pump and revisa that not haya leaks of water. If all is in orden, the pump will work Correctly.

Compatibility of the flange Seal Mechanical for pumps of AstralPool

This spare part is compatible with the siguientes models of pumps:

• Pump Nautilus: 25480, 25481, 25482, 25483, 25484, 25485, 25486, 25487, 25488, 25489, 25490, 25491, 25492
• Pump Victoria Plus: 38771, 38777, 38773, 38775, 38770, 38780, 38772, 38776, 38769, 38774, 38778, 38779, 53675, 41224
• Pump Victoria Dual-Speed: 45708, 45861, 45658, 45657
• Pump Aquamar: 24589, 24582, 24584, 24580, 24586, 24587, 24581, 24583, 24578, 24585, 24579, 24588
• Pump Sprint: 05092, 23043, 05086, 23024
• Pump Victoria: 20604, 24337, 20597, 20598, 20599, 20602, 20603, 20605, 20607, 20606, 20600
