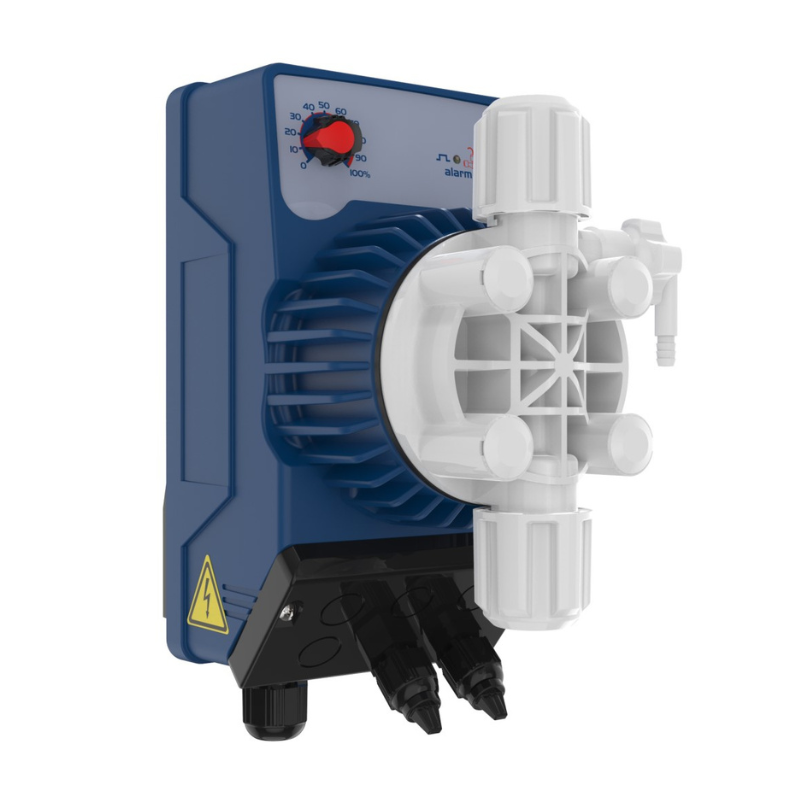

Dosing Pump Electromagnetic Seko Kompact Ams 200
SEKO
Referencia: AMS200AHH0000
The dosing pump electomagnetic SEKO Kompact AMS 200 controls of way analogue and operates with dosing constant. Dosing of product chemical (chlorine and pH) for the pool.
The pumps SEKO offer solutions for inyectar liquid in conductos and pipes from pools small a large installations aquatic. In environments of indoor and outdoor, depending on the model, can measure parameters as pH, ORP, conductivity, chlorine, oxygen, turbidez, ozono, bromo, etc.
Dosing pump SEKO Kompact ASM 200 for dosing of chemical products
The series Kompact is a range of dosing pumps driven for solenoids, features of flow rates constantes that controlan via a dial adjustable manually in the panel frontal. These dosing pumps ensure high performance for the chosen applications chosen and provide high reliability ensuring the compatibility chemical in the parts wet. Depending On the Scope of aplication you can escoger between the Kompact AMS in gasket Viton or EPDM.
features stands outbles of the dosing pump ASM200 for pools of SEKO
- Pump with fit Manual of the frequently of discharge of 0 to the 100% using potentiometer analogue
- The alimentation standard of the pump is of 230Vca 50-60Hz, with option low pedido of 24Vca.
- Membrane in material PTFE.
- Comes with valve to carry out bleed valve Manual.
- The housing is formed for plastic PP, Reinforcement in fibreglass and protection IP65.
- Panel of control: The LED green fixed apaga with each golpe which pump efectúa. LED green parpadeant with the potentiometer in 0.
- Depending On the chemical a dosificar, the mejores gaskets are: - Reductor of pH: gaskets Viton or EPDM. Incrementador of pH: gaskets EPDM. Chlorine liquid: gaskets Viton.
Technical specifications of the series ASM of dosing pumps SEKO
| Model | Pressure | Flow Rate | cc/golpe | Inyections/minuto | Connections (mm) | |
| bar | l/h | Suction | Discharge | |||
| 200 | 10 | 3,0 | 160 | 0,31 | 4/6 | 4/6 |
| 8 | 5,0 | 0,52 | ||||
That includes the pump ASM200 of SEKO for dosing of quñimicos in pools?
- Pump complete
- Filter of bottom
- Adaptor of injection-moulded
- 4 metres of tube in PVC (transparent and flexible), for the suction and for the connection of the valve of bleed valve for the cebadura Manual
- 2 metres of tube of PE (opaco and rigid), for the connection of the outlet of the pump with the point of injection-moulded
- Wall Plugs for a fixing of the pump
- Support for the montaje of the wall
- Manual of instructions
- Cable of alimentation (2m)
