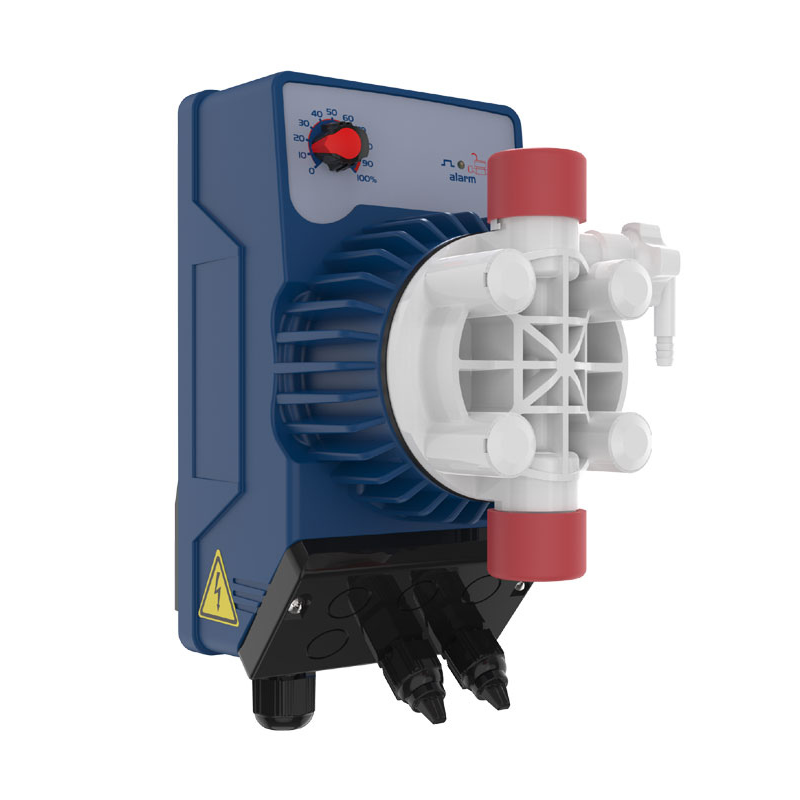

Dosing Pump Electromagnetic Seko Kompact Aml 200
SEKO
Referencia: AML200NHH0000
Dosing pump with fit Manual of flow rate, dual regulation (0÷20% - 0÷100%), with inlet of level.
The pumps SEKO offer solutions for inyectar liquid in conductos and pipes from pools small a large installations aquatic. In environments of indoor and outdoor, depending on the model, can measure parameters as pH, ORP, conductivity, chlorine, oxygen, turbidez, ozono, bromo, etc.
Dosing pump SEKO Kompact ASM 200 for dosing of chemical products
The series Kompact Represents a line of dosing pumps impulsed for solenoids, designed to offer flow rates constantes that regulan using a dial adjustable located in the panel frontal. These pumps guarantee an optimum performance for a Variety of applications and provide a confiability excepcional to the ensure the compatibility chemical in the areas expuestas a liquid. Dependiendo of the environment of aplication, can optar between the Kompact AML with gaskets of Viton or EPDM.
features stands outbles of the dosing pump ASM200 for pools of SEKO
- Alimentation standard of the pump of 100-240 Vca 50-60Hz, with option low pedido of 24Vca.
- The Kit installation comes with valve of pie, valve of injection-moulded, screws and support to fix to the wall.
- Tube of suction in material PVC (4 metres).
- Tube of discharge in material PE (2 metres).
- Membrane in material PTFE.
- Comes with valve to carry out bleed valve Manual.
- The housing is formed for plastic PP, Reinforcement in fibreglass and protection IP65.
- Depending On the chemical a dosificar, the mejores gaskets are: - Reductor of pH: gaskets Viton or EPDM. Incrementador of pH: gaskets EPDM. Chlorine liquid: gaskets Viton
Technical specifications of the series ASM of dosing pumps SEKO
| Model | Pressure | Flow Rate | cc/golpe | Inyections/minuto | Connections (mm) | |
| bar | l/h | Suction | Discharge | |||
| 200 | 10 | 3,0 | 160 | 0,31 | 4/6 | 4/6 |
| 8 | 5,0 | 0,52 | ||||
That includes the pump AML200 of SEKO for dosing of quñimicos in pools?
- Pump complete
- Filter of bottom
- Adaptor of injection-moulded
- Kit connections pipes
- 4 metres of tube in PVC (transparent and flexible), for the suction and for the connection of the valve of bleed valve for the cebadura Manual
- 2 metres of tube of PE (opaco and rigid), for the connection of the outlet of the pump with the point of injection-moulded
- Support for the montaje of the wall
- Wall Plugs for a fixing of the pump
- Plugs protection screws
- Manual of instructions
