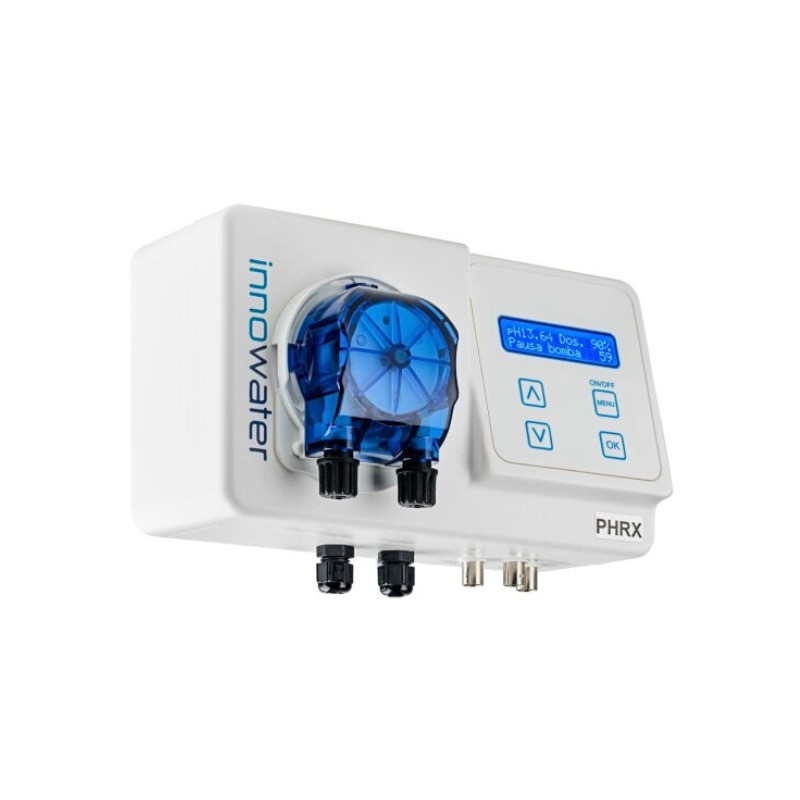

Dosing Pump PH and Redox Innowater
INNOWATER
Referencia: C1206
The feeder Innowater pH-Redox allows a regulation precisa of the pH and of the potencial of oxidation-reduction (ORP) in your pool. Controls automaticaly the dosing of acid and regula the salt chlorinator to ensure a water optimum quality. Ideal for a monitorization continuous.
- Regulation automatic of the pH and Redox for a monitorization and fit continuos of the pH and of the potencial of oxidation-reduction.
- Outlet proportional to control the salt chlorinator depending on the parameter Redox.
- Kit complete with dosing pump peristaltic, inyector, filter of pie and solutions of calibration.
- grade of IP rating 65 for a use reliable in various conditions.
The feeder Innowater pH-Redox offers an efficient solution for the monitorization and regulation continuas of the pH and of the potencial of oxidation-reduction (ORP) in your pool. Allows a control preciso of the dosing of the pH and optimises the operation of its salt chlorinator.
That can hacer the feeder Innowater pH-Redox for your pool?
The feeder Innowater pH-Redox combines the regulation of the pH with the control of the salt chlorinator to keep the water quality of your pool a high level. measures continualy the pH and the ORP to adjust of way ideal the dosing of acid and chlorine.
- Regulation automatic of the pH and Redox for a water quality constant without intervention Manual.
- Control proportional of the salt chlorinator basado in the parameter ORP, to optimise the concentration of chlorine in the water.
- includes dosing pump peristaltic for a dosing precisa and controled of the pH.
- Easy connection e installation thanks a kit complete and a calibration simple.
As operates the feeder Innowater pH-Redox?
The dispositive monitorea continualy the pH and the ORP using two sensores integrated in the circuit of circulation. The sensor of pH controls the dosing of the acid, while which sensor Redox regula the dosing of chlorine in the salt chlorinator.
Technical specifications of the feeder Innowater pH-Redox
The feeder Innowater pH-Redox it offers all the functions that needs for a careful preciso and efficient of your pool. Here are the technical specifications more key:
| features | Valor | Description |
|---|---|---|
| Rango of pH | 0 a 14 pH | Rango complete of measurement of the pH for a control preciso |
| Rango Redox (ORP) | 0 a 999 mV | measures the potencial of oxidation-reduction to control the salt chlorinator |
| grade of protection | IP 65 | Protection against dust and water for a long service life |
| Calibration | Manual | Easy fit and configuration |
| Kit connection | Included | all it necessary for a quick installation |
| Rango of measurement of the electrode of pH | 0 a 14 pH | measurement exacta of the pH for the dosing |
| Rango of measurement of the electrode Redox | 0 a 999 mV | measurement of the ORP to control the production of chlorine |
| Pressure | 1,5 bar | Pressure optimum for the dosing |
| Alimentation | 100-220 VAC ± 10% | Wide range of voltage for different connections |
| Consumption of energy | 5 W | Very efficient energeticaly |
| Dimensions | 218 x 125 x 95 mm | Size compact for an easy integration in its system for pools |
