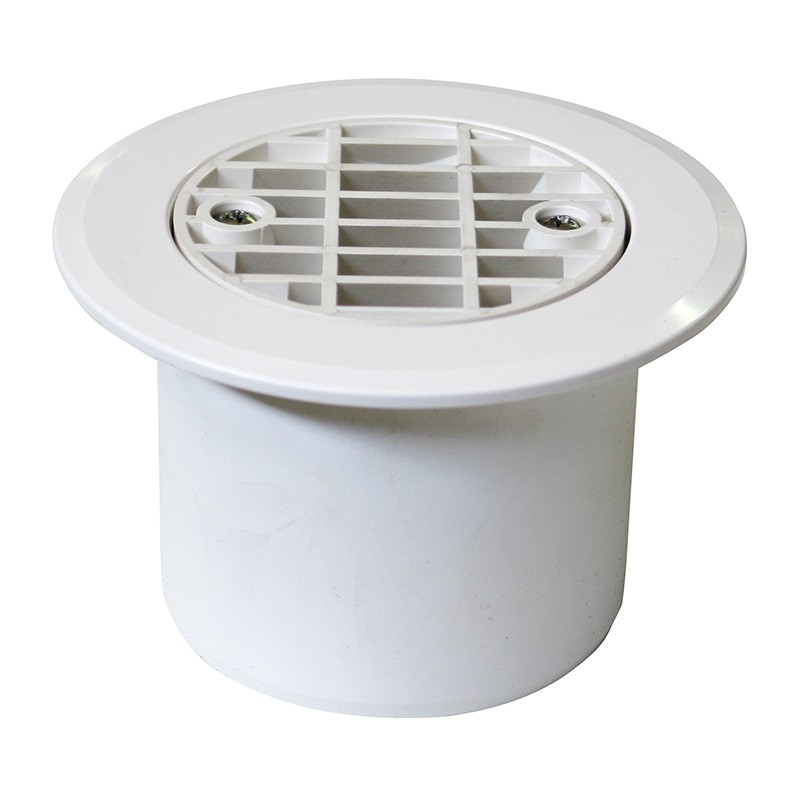

Nozzle Return/suction High Flow Rate Concrete Pools AstralPool
ASTRALPOOL
Referencia: 41520
Return inlet for large flow rates. Also can be used as suction inlet.
- The body in PVC, grille in ABS, flange of PA and the screws AISI 304.
- The holes of the grille not superan the 8 mm depending on norma IN 13451-1.
- Maximum flow rate discharge 30m3/h for a speed of flow maximum of 4 m/s depending on norma IN 13451-1.
- Maximum flow rate suction 5m3/h for a speed of flow maximum of 0.5 m/s depending on norma IN 13451-1.
- jet inclined a 30º orientables the 360º.
- Connection for tube Ø75 or Ø90.
- It is recommended install with tube wall bushing code 43590.
chat
Comments (0)
Return inlet for large flow rates. Also can be used as suction inlet.
