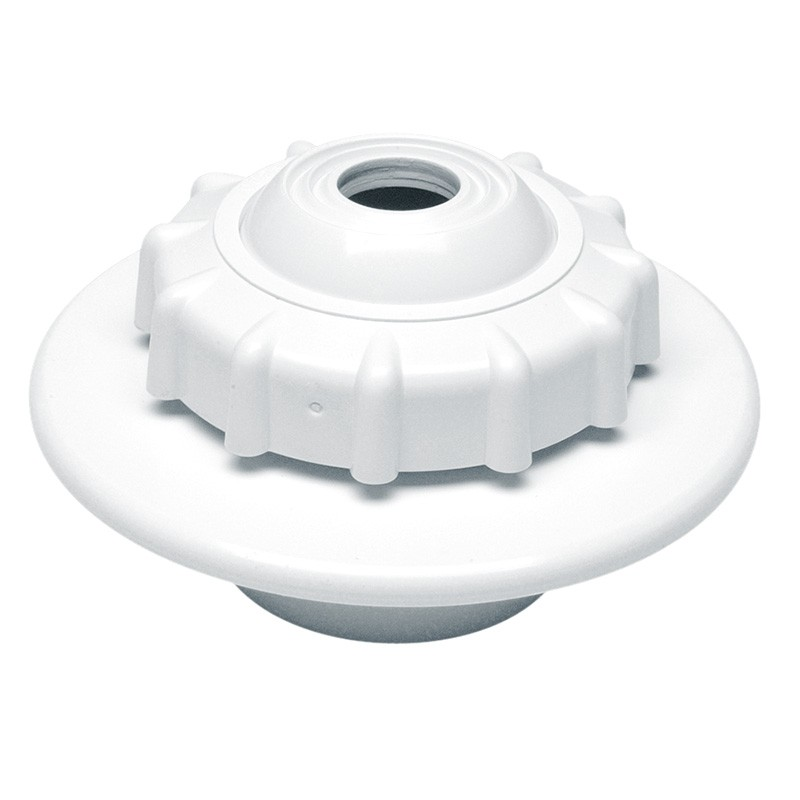

Return Inlet Multiflow for Solvent-weld AstralPool White

The return inlet Multiflow of AstralPool is a part key to ensure a correct water circulation in concrete pools, the which is an option efficient and flexible designed both for new installations and renovations. In addition, its estetic careful allows integrarla with facility in distintos styles for pools.

performance destaced

manufacture in ABS of high resistance: the body of the inlet is constructed in a material robust and durable, capaz of resistir the chemical agents and the conditions habituales of the environment aquatic.

Multiflow system: incorporates a bola premarced with different diameters (14, 20 and 25 mm), it that allows select the opening suitable during the installation. This selection realiza simply using punzoned, adapting the flow rate depending on the requirements of the hydraulic system.

Capacity of flow rate recommended for a speed maximum of water flow of 4 m/s:

1. Ø 14 mm: up to 2,2 m³/h
2. Ø 20 mm: up to 4,5 m³/h
3. Ø 25 mm: up to 7 m³/h

Conformity standard: Complies with the exigencias of quality and safety establecidas for the standard europeas IN 16582-1 and IN 16713-2.

Aplication and benefits

This inlet is ideal for concrete pools and allows optimise the water distribution trated, improving thus the efficiency of the filtration system and preventing areas dead. The Multiflow system facilitates the configuration of the flow without the need for elementos additional, it that simplifica the installation and reduces the time of montaje.

Thanks to its finished estetic and the posibility of elegir the colour more acorde with the environment, this inlet not only complies a function technical essential, but also aporta value decorative.

Detalle dimensions
