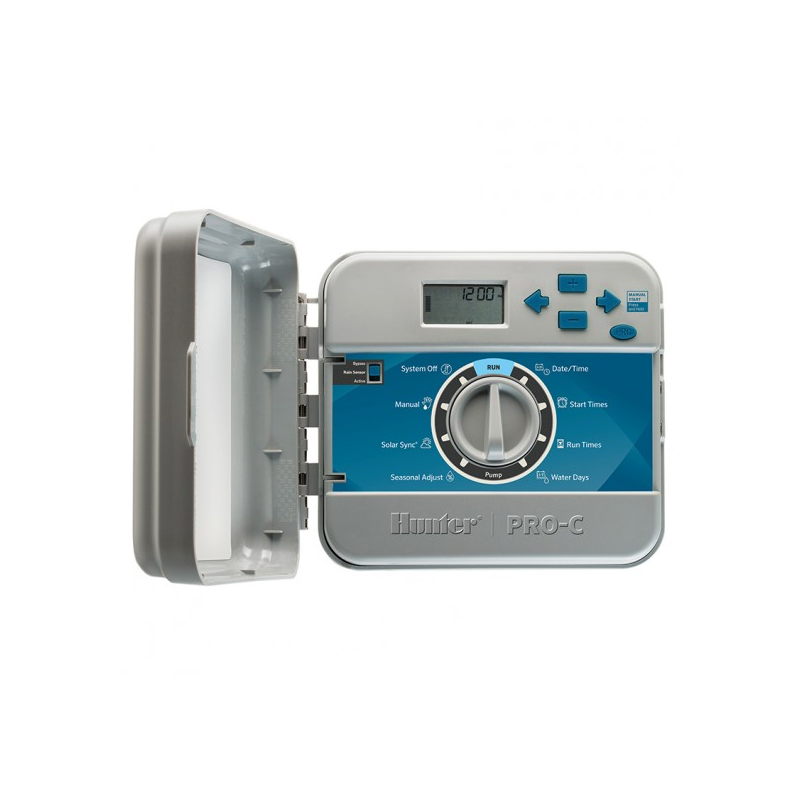

Controller Profesional Hunter Pro-c pc-401i-e 4 Stations Ampliable a 16

The Hunter Pro-C PC-401i-E is a programmer modular professional for the management efficient of riego in areas residential or commercial. designed for installation in interiores, this model features with a configuration basic of 4 estations, ampliable up to 16 estations using modules of 3 and 9 estations. In addition, features of a version for outdoor (not Included in this reference specific).

Its compatibility with tools advanced as the sensor Solar Sync, systems of control remote and the system IMMS, it making it a solution versatile and technological to optimise the use of water and facilitate its handling.

Key Features of the programmer Pro-C PC-401i-E of Hunter

•

• Modularity: Configuration basic of 4 estations, ampliable up to 16 using modules of expansion (PCM-300 and PCM-900).

• Programation advanced: 3 programas of riego independent, each one with 4 hours of inicio and up to 6 hours of riego for estation.

• Compatibility: operates with sensores Solar Sync and Clik, thus as systems of control remote ROAM and ROAM XL.

• Diagnostic easy: technology QuickCheck for identificar problemas in the cableed of campo.

• Memoria not volátil: Guarda configurations and programation to ensure continuity even ante fallos of energy.

• Interfaz practic: Display screen retroilumined for programation simple, even in conditions of poca Light.

• Flexibility of control: Modos adjustable of time of riego, retrasos between estations and options of days of not riego.

• robust design: Armario of montaje in wall with certification IP44 for use in outdoor.


Benefits of the programmer Pro-C PC-401i-E of Hunter

•

• extension flexible: Suitable both for proyectos small as large, thanks to its modularity.

• Savings of water: With the sensor Solar Sync, adjusts the tiempos of riego depending on the conditions climatic.

• Facility of use: Programation intuitive and compatibility with dispositive of control remote for greater comfort.

• High durability: Materials of quality and certifications internacionales guarantee a reliable operation.


Technical Specifications of the programmer Pro-C PC-401i-E of Hunter

•

• Inlet of the transformador: 230 V CA.

• Outlet of the transformador: 24 V CA, 1 A.

• Outlet of the estation: 24 V CA, 0,56 A.

• Estations: 4 ampliables a 16 using modules (PCM-300 and PCM-900).

• Programas: 3 independent with 4 hours of inicio each one.

• Compatibility with sensores: 2 entred available for sensores as Solar Sync.

• material: Armario of plastic IP44 for outdoor.

• Certifications: UL, cUL, FCC, CE, RCM, ISED.


Instructions installation of the programmer Pro-C PC-401i-E of Hunter

Preparation

1.

2. Seleccione a place suitable in interiores for the montaje of the armario, preferiblely cerca of a toma electrical.

3. Ensure of benefit from the modules of expansion necesary for cubrir the number of estations requeridas.


Connection of the System

1.

2. Conecte the transformador to the fountain of alimentation and to the programmer.

3. Instale the modules of expansion in the ranuras correspondinges.

4. Conecte the estations of riego to the Connectors siguiendo the esquema of the Manual.

5. If uses sensores, conéctelos to the entred designed.


Configuration Inicial

1.

2. Configure the fecha and hour actuales from the panel of control.

3. Programe the horarios of riego depending on the requirements of the estations.

4. Realice a prueba of operation for verificar that all the estations operen Correctly.
