Sensor moisture Hunter Soil-clik

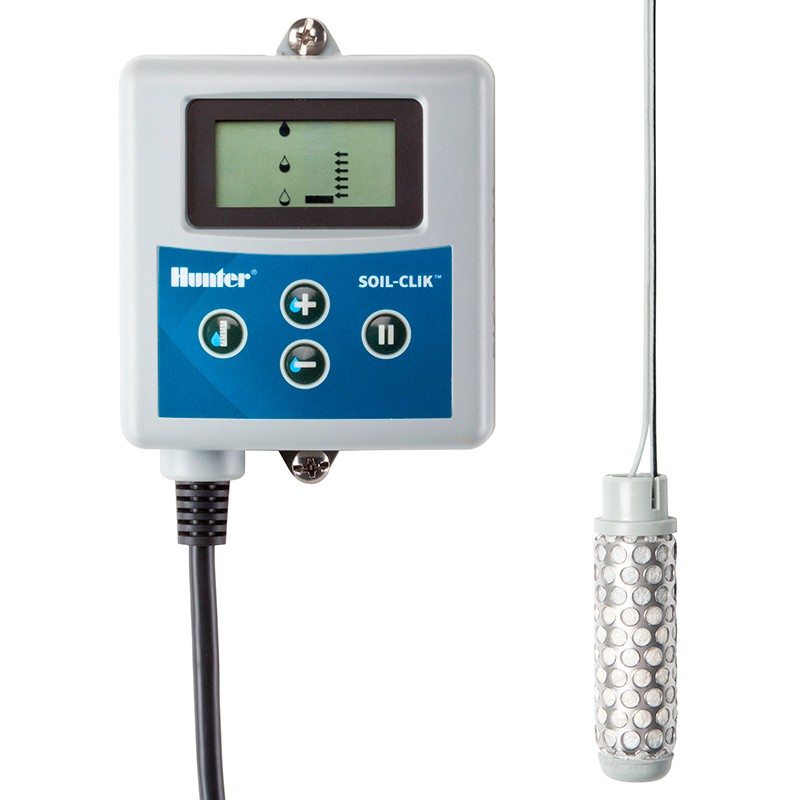

The Sensor of moisture Hunter Soil-Clik is a dispositive innovative that measures the moisture of the ground, preventing the exceso of riego and promoviendo the savings of water. This sensor, compatible with programadores Hunter and of other marcas, is easy to install and manejar, siendo ideal for systems of riego automatic.

Key Features of the Sensor of moisture Soil-Clik of Hunter

•

• measurement precisa: Uses advanced technology for detectar the moisture in the area radicular.

• Control efficient: Cierra the system of riego automaticaly when the levels of moisture alcanzan the value deseed.

• Compatibility universal: operates with programadores Hunter and other systems alimented for flow alterna (24 VCA).

• Installation flexible: The Probe can colocarse up to a 300 m of the programmer.

• Easy handling: includes a button for anular the sensor in situations Special.

• Durability: Armario resistant for installation in interiores or outdoor, with clasification NEMA 3R.

• Complement ideal: Compatible with Solar Sync® to adjust tiempos of riego depending on conditions climatic.


Benefits of the Sensor of moisture Soil-Clik of Hunter

•

• Savings of water: Prevents the riego innecesary, optimising the use of recursos hídricos.

• Protection of the ground: Prevents the damage for exceso of riego in jardines and areas verdes.

• Efficiency: Complementa other sensores as Solar Sync for a system of riego totally optimised.


Technical Specifications of the Sensor of moisture Soil-Clik of Hunter

•

• Distance maximum:

  •

  • Of The module of control to the programmer: 2 m.

  • Of The module of control to the Probe: 300 m.




• flow of inlet: 24 VCA, 100 mA max.

• Outlet: Normally closed.

• Box: NEMA 3R, apta for interiores and outdoor.

• Warranty: 5 years.


Instructions installation Sensor of moisture Soil-Clik of Hunter

Preparation

1.

2. Seleccione a ubication suitable for the Probe, ideally in the area radicular of the plantas.

3. Reúna the tools necesary, as a destornillador and the elementos of montaje included.


Installation

1.

2. Monte the module of control in a ubication protected, cerca of the programmer of riego.

3. Coloque the Probe in the ground to the depth deseed and conéctela to the module of control.

4. Conecte the module of control to the programmer of riego siguiendo the instructions specific of the fabricant.


Prueba

1.

2. Active the system of riego and verifique which sensor detenga the riego when the ground alcance the level of moisture programed.

3. Pruebe the button of anulation for situations Special and ensure of which system funcione Correctly.
