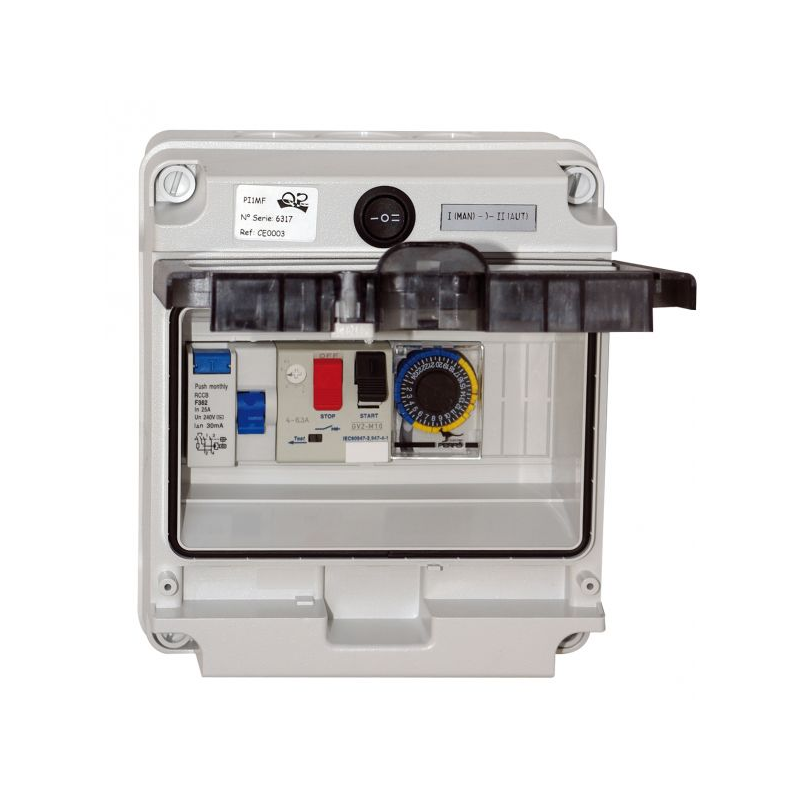

Cuadro Electrical QP for Filtration up to 2 Cv Without Transformer

The Cuadro electrical QP for Filtration up to 2 CV without Transformer is designed for gestionar efficiently and safe the pump of filtration for pools with Power outputs of up to 2 CV. To The not incluir transformador, is enfoced exclusivaly in the control of the pump of filtration, without connection direct for accessories of low voltage as lighting.

Technical specifications of the Cuadro electrical QP for Filtration up to 2 CV without Transformer (Ref. CE0004)

•

• Encapsuled in cajaS of plastic IP55, ensuring protection against dust and the water.

• Equipped with a disyuntor thermal circuit breaker for salvaguardar the pump ante sobrecargas.

• Features with a programmer electromecánico diario, with a resolution of 30 minutos, for a control preciso of the cycles of filtration.

• Control of the pump: Incorporates a contactor electromecánico for the encendido and apaged of the pump.

• Equipped with a timer mechanical with a reserva of operation of 160 hours, ensuring the continuity of the operation in case of cuts of energy.

• Not includes transformador.


Components main of the Cuadro electrical QP for Filtration up to 2 CV without Transformer

•

• Interruptor thermal circuit breaker IP+N for cuadro lighting:Protects the installation of sobrecargas and cortocircuitos.

• Contactor in cuadros three-phase.:Controls the encendido and apaged of the pump.

• Diferencial general.

• Selector of 3 positions MAN - 0 - AUT.
