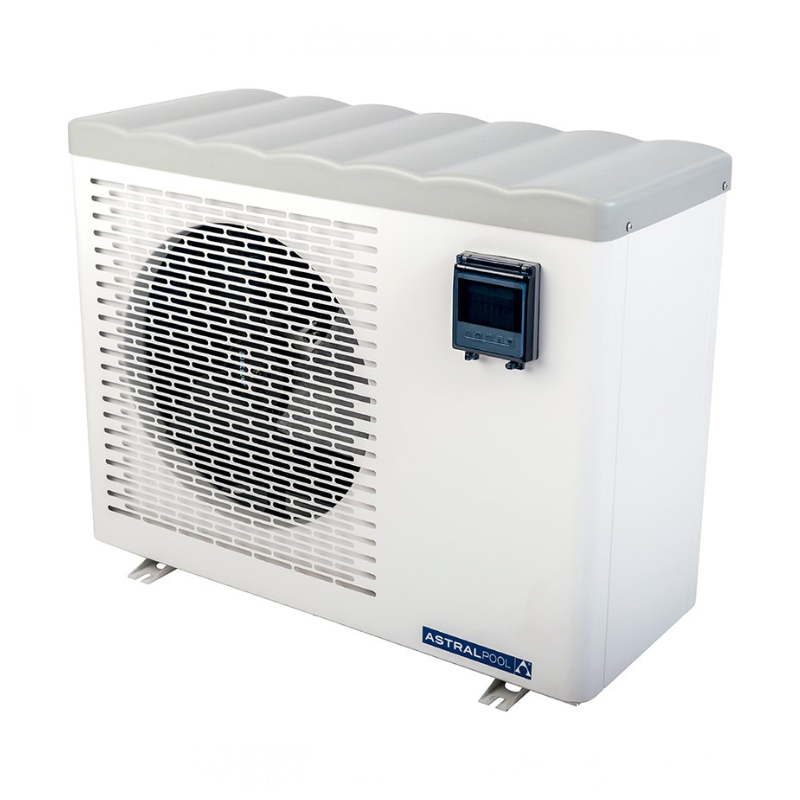

AstralPool ECO ELYO Full Inverter Heat Pump with Wi-Fi

Name: AstralPool ECO ELYO Full Inverter Heat Pump with Wi-Fi
Brand: ASTRALPOOL
SKU: 000BC0006
Price: 915 EUR
Availability: InStock

ASTRALPOOL

Referencia: 000BC0006

Eco Elyo Full Inverter of AstralPool is the heat pump for pools of high-performance with conectivity Bluetooth and Wi-Fi for that puedan gestionar of way optimum, as you can control all the parameters a distance and the 24 hours of the day.

Heat pump Equipped with technology Full Inverter. features of 3 modos of operation:

Boost: Aumenta quickly the temperature, ideal for the inicio of season.
Smart: Fit automatic basado in the temperature.
Ecosilence: Modo of savings energetic and operation ultra whisper-quiet.

€915.00 IVA incluido

Quantity

The pumps of heat ECO ELYO stands outn for its sencillez, efficiency and high-performance. These units are designed to provide a heating effective with a enfoque easy to use. Its energy efficiency and its capacity for offer an optimum performance making it an option destaced for those looking for a solution of Heating efficient and amigable with the the environment. With advanced technology, the pumps of heat ECO ELYO offer a way efective and sostenible of keep a temperature comfortable in the home.

The technology Full Inverter of Eco Elyo adjusts automatically the speed of its Compressor and fan of accordance with the requisitos of Heating, Achieving thus a reduction significative of the consumption of energy and ensuring a operation more whisper-quiet.

Key Features of the heat pump ECO ELYO Full Inverter

technology Full inverter for a quiet operation and with the maximum energy efficiency, with 3 modos of operation:
- Boost: maximum power for a heating quick to the principio of season.
- Smart: fit automatic of power between Ecosilence and Boost.
- Ecosilence: greater savings of energy and level of ruido more low.
Conectivity Wi-Fi integrated: aplication mobile Fluidra Pool gratis.
Temperature of operation minimum for its operation: -5°C
Housing in plastic ABS with new grille of fan for injection-moulded. grille of protection of steel galvanized alrededor of the evaporador.
Fluid refrigerant R32 respectful with the the environment.
Function priority of heating (control of the pump of filtration).
System of deshielo automatic.
Heat Exchanger of water of titanium compatible with pools of salt chlorination.
Display screen LCD.
Compressor rotative of paletas.
Accessories included:
- Cover of protection for the winter.
- Conectores hydraulic PVC of Ø 50 mm.
- Kit drainage of the condensation.
- Soportes antivibration (4).

Comparison table of the models of heat pump for pools ECO ELYO of AstralPool

Model	ECO ELYO-05	ECO ELYO-07	ECO ELYO-09	ECO ELYO-13	ECO ELYO-15	ECO ELYO-20
Code	76657	76658	76659	76660	76661	76662
Calification Norma IN 17645	A	A	A	A	A	A
SCOP Norma IN 17645	7,5	7,5	8	9,6	7,7	8,5
Water flow rate recommended (m³/h)	3	3	4	5	6	7
Alimentation electrical	220-240 V / 1 / 50-60 Hz
Power absorbida nominal (A)	4,9	4,9	6,3	8	10,2	13,6
Power absorbida maximum (A)	8	8	9	13	16	19
Cable of alimentation (mm²) *	3 x 2,5	3 x 2,5	3 x 2,5	3 x 2,5	3 x 4	3 x 4
Fluid frigorígeno	R32	R32	R32	R32	R32	R32
quantity fluid frigorígeno (kg)	0,3	0,3	0,45	0,6	0,7	1,0
Power acustic (max-mín) (dBA) **	59 - 47	59 - 47	64 - 51	64 - 51	67 - 55	70 - 57
Pressure acustic a 10m (max-mín) (dBA) **	28 - 16	28 - 16	33 - 20	33 - 20	36 - 24	39 - 26
PERFORMANCE OF Heating
air 26°C / Water 26°C / moisture 80%
Power aported (max-mín) (kW)	5,5 - 1,5	7 - 2	9,5 - 2,3	13 - 2,4	15 - 2,5	20 - 2,8
Power consumida (max-mín) (kW)	0,9 - 0,1	1,1 - 0,15	1,4 - 0,2	2 - 0,1	2,5 - 0,15	3,3 - 0,2
COP (coeficient of performance)	6,1 - 14,4	6,5 - 13,4	6,7 - 13,5	6,5 - 16,4	6 - 16,3	6,2 - 16,5
air 15°C / Water 26°C / moisture 70%
Power aported (max-mín) (kW)	3,9 - 1,1	5,5 - 1,4	7 - 1,5	9 - 1,7	11 - 1,9	15 - 2,2
Power consumida (max-mín) (kW)	0,8 - 0,1	1,1 - 0,2	1,3 - 0,2	1,9 - 0,2	2,3 - 0,25	3 - 0,3
COP (coeficient of performance)	5,2 - 8	5,2 - 6,4	5,3 - 6,6	4,8 - 7,8	4,8 - 7,7	5 - 7,3
DIMENSIONS AND WEIGHT
Dimensions (Length x high x bottom) (mm)	831 x 654 x 393	831 x 654 x 393	831 x 654 x 393	831 x 654 x 393	914 x 654 x 393	1111 x 754 x 413
Weight (kg)	38,5	38,5	41,5	46	52,5	66

Along the season of swimming with the pumps of heat of AstralPool Full Inverter ECO ELYO

The heat pump Eco Elyo opera eficientely a temperature tan low as -5°C, corresponding to the temperature of the air outdoor, it that contribuye a extender significantly the season of swimming. This capacity of operation a low temperature not only allows you to enjoy the pool during the meses more warm, but rather also in primavera and autumn.

Adicionally, with its 5 levels of power, Eco Elyo of AstralPool offers a versatility excepcional to the heat both small pools as large quickly and effectively. This ensures a control preciso of the temperature of water, allowing to the users enjoy its pool in conditions optimum in any point of the year.
