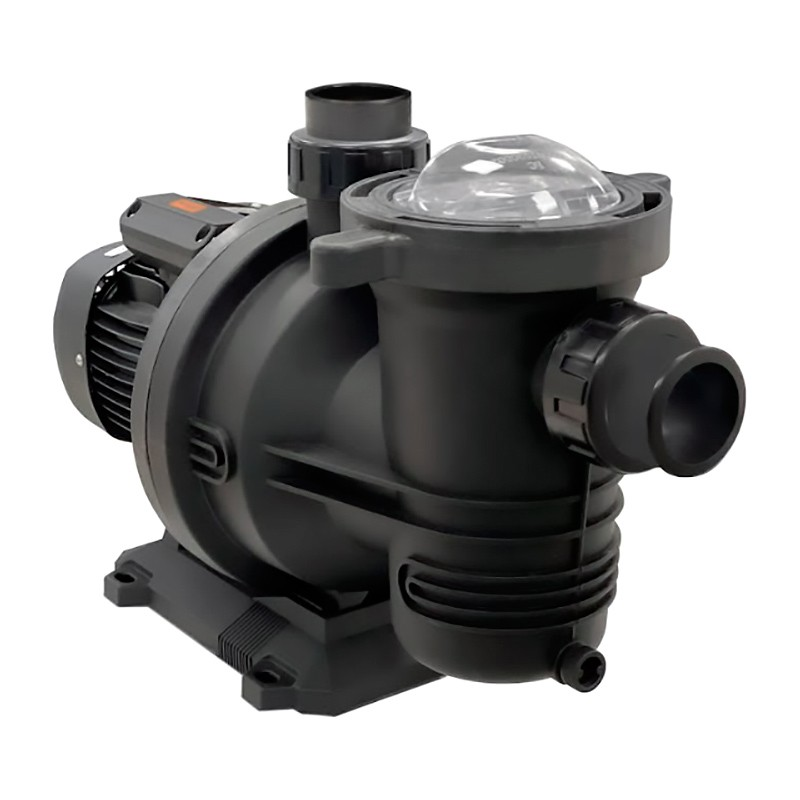

Pump AstralPool Aquasphere Ssp 150m 1,5 Cv Single-phase
ASTRALPOOL
Referencia: 75941
- Self-priming pump for residential pools.
- Power: 1,5 CV single-phase.
- Compatible with saltwater.
- With pre-filter integrated of 1,6 litres capacity.
- Connections Ø suction and discharge: rácord Ø 50 mm.
- Range of pumps self-priming for residential pools.
- includes a pre-filter of 1,6 litres and the connexions of D50mm.
- Motors single-phase, IP rating-X5 and aislamineto class F.
- Range of flow rates from 12,5 a 19,5 m3 /h a 10 m.c.a.
Comparte dimensions with the siguientes models:
- ESPA Silen (model antiguo)
- ESPA NOX 75 15M - NOX 100 18M - NOX 150 22M
- Prinze Ocean
- Baico Etna 2
| Model | SSP 75 | SSP 100 | SSP 150 |
| Reference | 75939 | 75940 | 75941 |
| Alimentation | 230 VAC-50Hz-1 ~ | 230 VAC-50Hz-1 ~ | 230 VAC-50Hz-1 ~ |
| P1 Max (kW) | 0,9 | 1,2 | 1,4 |
| l1 Max (A) | 3,9 | 5,2 | 6,2 |
| H Max (m) | 14,7 | 17,1 | 17,3 |
| Q Max (m³/h) H=4m | 18,5 | 21,7 | 26,3 |
| HN (m) | 10 | 10 | 10 |
| QN (m³/h) H=10m | 12,5 | 16 | 19,5 |
| P2N (kW) | 0,55 | 0,75 | 1,1 |
| Ruido (dBA) | 61 | 65 | 67 |
| Ø (mm) | D50 | D50 | D50 |
| Net weight (kg) | 9,3 | 10,4 | 11,8 |
| Ref. | Dimensions | |||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | |
| 75939 | 514 | 238 | 160 | 307 | 226 | 223 | 170 | 330 | Ø50 | Ø50 | 4- Ø10 | 209 |
| 75940 | 514 | 238 | 160 | 307 | 226 | 223 | 170 | 330 | Ø50 | Ø50 | 4- Ø10 | 209 |
| 75941 | 532 | 238 | 160 | 307 | 226 | 223 | 170 | 330 | Ø50 | Ø50 | 4- Ø10 | 209 |
