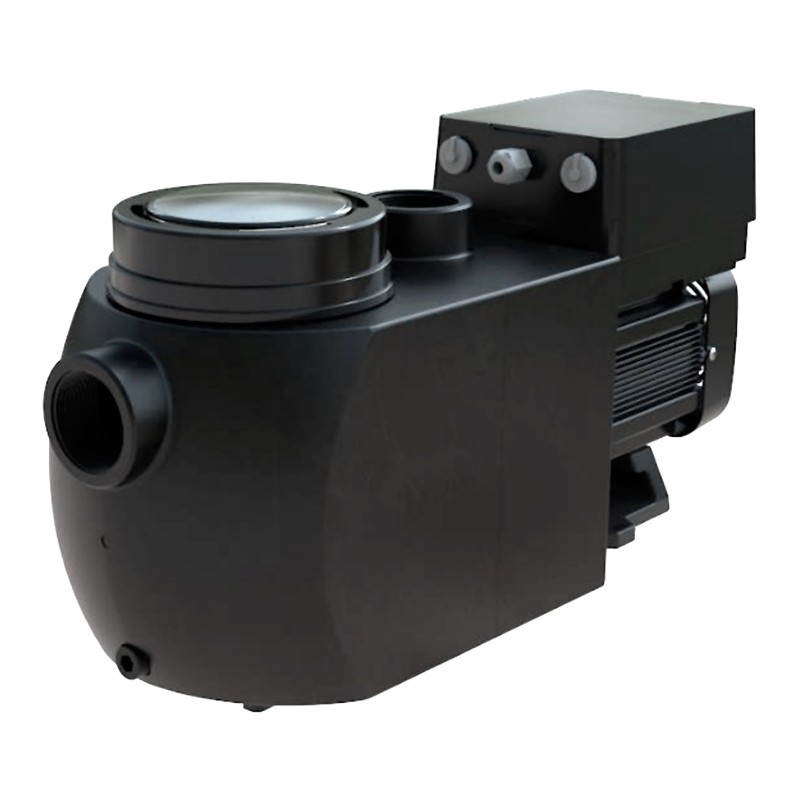

Pump AstralPool Aquasphere Vsp 150 Variable-Speed 1,5 Cv
ASTRALPOOL
Referencia: 75946
- Self-priming pump of speed variable for filtration systems in residential pools.
- technology of speed variable with variador for a maximum energy efficiency, the speed is adaptable to reduce the consumption.
- Apta for the use in pools trated using electrolysis salina.
- Display screen with botones touches e interfaz of usuario intuitive
- includes a pre-filter capacity of 1,4 L.
- Available in two versions with or without contactos secos to be controled externaly.
Aquasphere VSP
Is a range of pumps self-priming of speed variable designed for the recirculation of water in filtration systems of residential pools with the minimum energy consumption.
technology of speed variable of latest generation with inversor integrated.
In the part upper incorporates a panel of control with display screen with botones touches e interfaz of usuario intuitive.
pre-filter with capacity of 1,4 L with upper lid transparent.
Compatible with pools trated with salt chlorination or with chlorine tradicional.
Diameters of connections (Ø) suction and discharge: rácord Ø 63 mm.
Motor single-phase of 1,5 CV.
IP rating-X5 and insulation class F.
The model VSP 150C features of contactos secos that allow which pump whether controled externaly (includes kit of entred digitales with cable of 2,5 metres).
| Model | VSP 150 | VSP 150C |
| Ref. | 75946 | 75948 |
| fountain of Alimentation | 220-240 VAC- 50/60Hz-1 ~ | 220-240 VAC- 50/60Hz-1 ~ |
| P1 Max. (kW) | 1,05 | 1,05 |
| I1 Max. (A) | 4,5 | 4,5 |
| H Max. (m) | 14,2 | 14,2 |
| Q Max. (m3/h) H=4m | 30,5 | 30,5 |
| HN (m) | 10 | 10 |
| QN (m3/h) H=10m | 19,3 | 19,3 |
| P2N (kW) | 0,75 | 0,75 |
| Level of ruido (dBA) | 61 | 61 |
