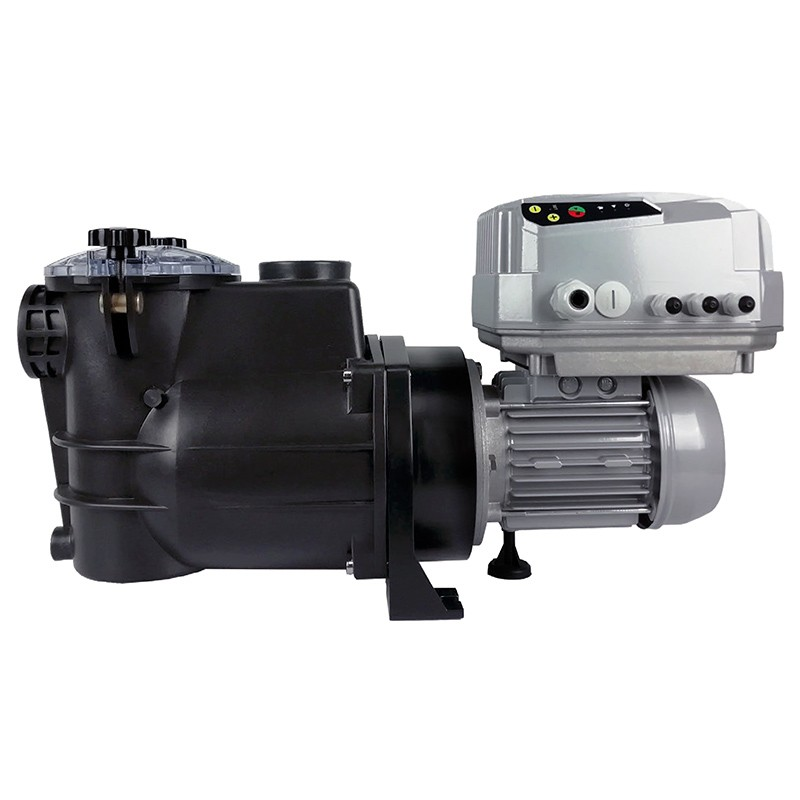

Pump Water for PSH Mini Solar for Connection a Paneles Solares

Features of the pump for pools Mini Solar from the brand PSH

• High energy efficiency thanks to the motor of imanes permanentes
• Speed variable autoajustable depending on the radiation solar
• Control electronic for the optimization of the point of working
• Savings energetic thanks to the alimentation for paneles solares
• IP55 for environments wet and polvorientos
• Alimentation using paneles solares or via red electrical
• Entred for signal of activation externa
• Controlador integrated: manufactured in aluminium and with ventilation independent to ensure a buen performance thermal
• Motor three-phase Synchronous: motor of imanes permanentes of high efficiency
• Aplication for mobile ANDROID e iOS, with conectivity Bluetooth for the configuration of the parameters of operation of the pump
• Temperature maximum: 40ºC

Materials of the pump PSH Mini Solar

• Pump body: Polypropylene + 30% FV
• impeller and diffuser: Noryl + 30% FV
• Shaft: Stainless steel AISI 316L
• mechanical seal: Carbono + resin - Ceramic
• Pre-filter lid: Polycarbonate
• Pre-filter basket: Polypropylene + 5% FV

Caracrteristic electrical of the pump Mini Solar of PSH

• Frequently Nominal: 48 62 Hz.
• Intensity maximum: 11A P.F.: 1.
• Voltage alimentation: 90-400 VDC,1x90-265 VAC
• Protection IP55 (NEMA-4).
• insulation Motor: class F.
• two signals of outlet available:N.OR. or N.C.
• four signals of entradadisponible (10 or 15 VCC).
• Connection RS485, ProtocoloMODBUS RTU
