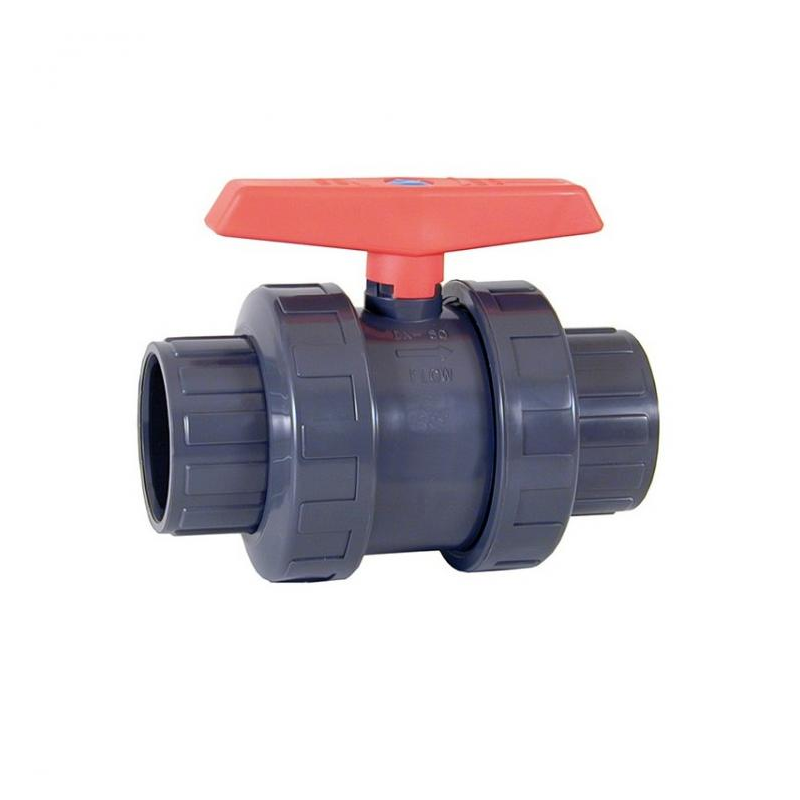

Valve Bola PVC-u Serie pn10. Antiblock d-50 mm
CEPEX
Referencia: 02502
The Ball valve in PVC-OR series PN10 Antiblock D-50 mm is a robust solution and reliable for the control of flow in installations for pools and hydraulic systems. Manufactured in PVC-OR of high resistance, is ideal to withstand presiones of up to 10 bar, ensuring a performance durable and safe. Its system Antiblock prevents the blockage of the mechanism, ensuring a handling smooth and without blockages, even in conditions exigentes.
Cepex offers the maximum warranty in its valves for the conduction of liquid a pressure as demuestran the certifications of that features (AENOR, AFNOR, Kiwa, etc.).
- Ball valve in PVC-OR PN10 Cepex for the control on the flow of the fluid (abrir / cerrar) in systems of pipes.
- gaskets Seat bola in HDPE (polyethylene).
- Anillos tóricos in EPDM.
- Pressure of working:PN 10
- Connections for solvent-weld (also available with connections for threaded female).
With the Ball valve in PVC-OR series PN10 Antiblock D-50 mm, You will obtain a control preciso of the water flow in your hydraulic system. This valve is designed for resistir conditions adversas, thanks to its construction in PVC-OR, that is resistant to corrosion and a chemical products. In addition, its technology Antiblock prevents the atascamiento, providing a reliable operation and long-lasting, ideal for installations for pools or redes of water a high pressure.
Features of the Ball valve in PVC-OR series of Cepex
- The system Antiblock impide which bola of the valve bloquee, ensuring a operation smooth and continuous.
- The valve minimises the loss of carga, improving the efficiency in the water circulation.
- Offers a low par of opening and seal, it that facilitates its handling without effort.
- Is altaly resistant a wide range of chemical products inorgánicos, ideal for environments exigentes.
- The installation realiza easily using nuts, without the need for tools specialised, thanks to its design true coupling.
- Manufactured with PVC-OR of high durability, this valve offers a resistance upper to the standard of the market, siendo apta for water potable and applications that require a greater robustness mechanical.
Observe the table for saber more the dimensions of the Ball valve in PVC-OR of Cepex
| D | Reference | DN | PN | L | H | E |
| 50 | 2502 | 40 | 10 | 31 | 162 | 94 |
| 63 | 2503 | 50 | 10 | 38 | 192 | 117 |
