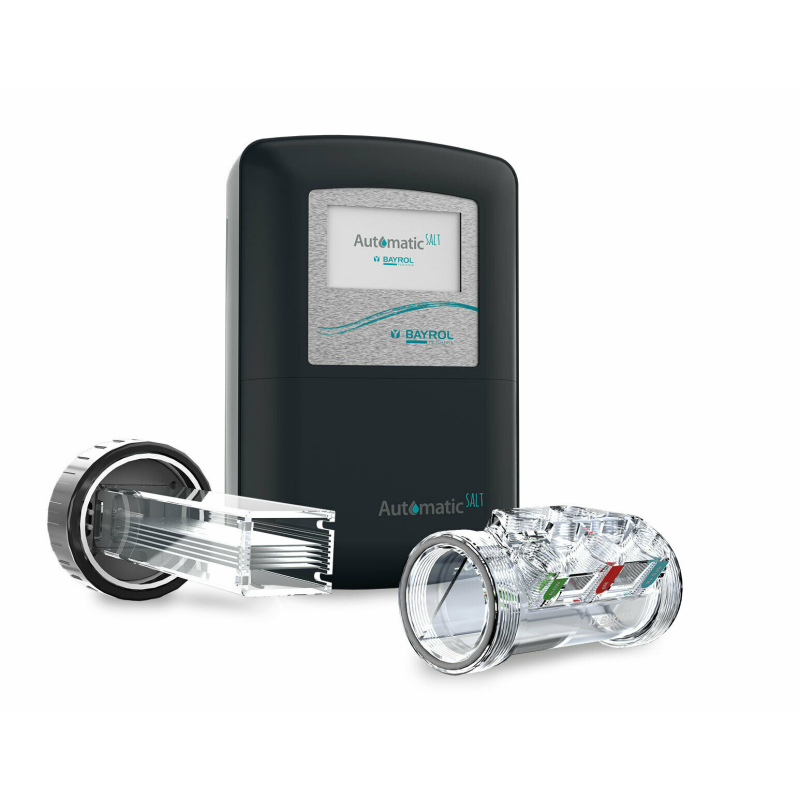

Salt Water Chlorinator Bayrol Automatic Salt as7 23 G/h with WiFi
BAYROL
Referencia: 191700
Keep your pool water in perfect condition with the Salt Chlorinator Bayrol Automatic Salt AS7, capaz of Generate 23 g/h of chlorine and ofrecerte the control via its connection WiFi, all in a only dispositive.
- Salt Chlorinator Bayrol AS7 is Equipped of series with dosing of the pH and measurement of the potencial Redox.
- Is Equipped with a module WiFi.
- operates with 1,5 g/l of salt. For both, is a salt chlorinator Low Salt.
- includes Smart & Easy Connector, chamber of analysis and dosing in line.
- Display screen touch of 4,3", interfaz simple e intuitive.
- measurement continuous of temperature and level of salt.
- Installation of celda of cell vertical or horizontal.
Optimises the quality of your pool with the Salt Chlorinator Bayrol Automatic Salt AS7, that produce 23 g/h of chlorine for pools of up to 140 m³ and features with conectivity WiFi for a control remote without complications.
The systems of treatment for salt water electrolysis Automatic Salt WiFi of Bayrol are some of the mas high quality of the market aunando efficiency, intuition of use and durability.
Features of the Salt Chlorinator Automatic Salt AS7 of Bayrol
- The installation of the Salt Chlorinator Bayrol in pools of saltwater ensures a water quality excepcional. Its innovative design and the system Smart&Easy Connector make which installation whether very simple, allowing that any usuario can realizarla for yes same. In addition, adhiere to the estrictos standards of quality of Bayrol Technik, siendo manufactured integraly in Alemania and complying with with the standard europeas.
- The configuration realiza via a interfaz amigable, designed to be easy to use for any persona. Its display screen touch of 4,3" offers a interfaz gráfica that facilitates all the operations.
- This equipment not only produce chlorine utilizando the salt present in the pool water, but also measures the potencial of oxidation (Redox) to keep a level constant of desinfectant. In addition, supervisa and regula continualy the levels of pH.
- The control of the dispositive can hacer of way remote thanks to its module WiFi integrated, that allows conectarse from a smartphone, tablet or other dispositive with internet. Thus, you can supervisar and adjust the parameters of water in any point, even if not these in home.
- The equipment comes Equipped with racores connection in the cell to facilitate its installation, and its connections electrical feature with Connectors codificed for colours for a quick identification.
- includes all the accessories necesary for the montaje.
Elementos that componen the Corador salt water Automatic Salt AS7 of Bayrol
- Automatic Salt
- Manquera of descarga
- Hose of suction
- Sensor of temperature
- Valve of injection-moulded
- Support of the electrode, 2pcs
- Filter of suction
- uego of montaje of wall
- Lid of the container with Port for hose
- electrode pH
- Electro Redox
- Cell of electrolysis
- Smart&Easy Connector
- Interruptor of flow
- Solution of cleaning of electrodos
- Solution buffer pH7
- Solution buffer Redox 465 mV
Watch the video before of carry out the installation of the Salt Chlorinator Automatic Salt AS7 of Bayrol
Vea this comparison table for more information about of the Salt Chlorinator Automatic Salt AS7 of Bayrol
| Model | Automatic Salt AS5 WiFi | Automatic Salt AS7 WiFi |
| Reference | 191500 | 191700 |
| Production of chlorine | 15 g/h | 23 g/h |
| volume maximum for pools | 80 m³ | 140 m³ |
| Display screen | touch-screen 4,3" TFT | |
| Electronics | Microprocesador of 32 bits, aceleration of gráficos advanced | |
| Level of salt | 1,5 - 40 g/l (compatible with water of mar) | |
| Modos of production | Auto, Auro Plus+, Production constant, Safe, Pause, Boost | |
| Cleaning automatic of cell | Investment of polarity adjustable, cycles of 1 a 24 hours | |
| Flow Rate admisible cell | 4,5 m³/h - 30 m³/h. | |
| Control of flow rate | flow sensor rate type Ladle, detector of gas in the cell | |
| Dimensions cell | 350 x 115 mm | |
| length cable cell | 2,0 m. | |
| Maximum pressure working | 3,5 bar | |
| length cables of sondas | 2,5 m. | |
| material of the cell | Titanium, lining rutenio/iridio | |
| Temperature of water admisible | 1 ºC - 45 ºC | |
| measurement of pH | pH Probe combined, BNC | |
| measurement of Redox | Probe Redox combined, BNC | |
| measurement level of salt | Electrodos of titanium to measure the conductivity (Precision of the 5% aprox.) | |
| measurement of temperature | Probe PT1000, PVC, BNC | |
| Alimentation electrical | 240 V - 50/60 Hz | |
| Consumption electrical | 160 W | |
| Conectivity | WiFi | |
| Indice protection armario | IP 65 | |
| Weight armario | 4,3 kg aprox. | |
| Dimensions armario | 325 x 210 x 120 mm (width x high x thorough) | |
