POOLEX
Referencia: JL-P11358FR

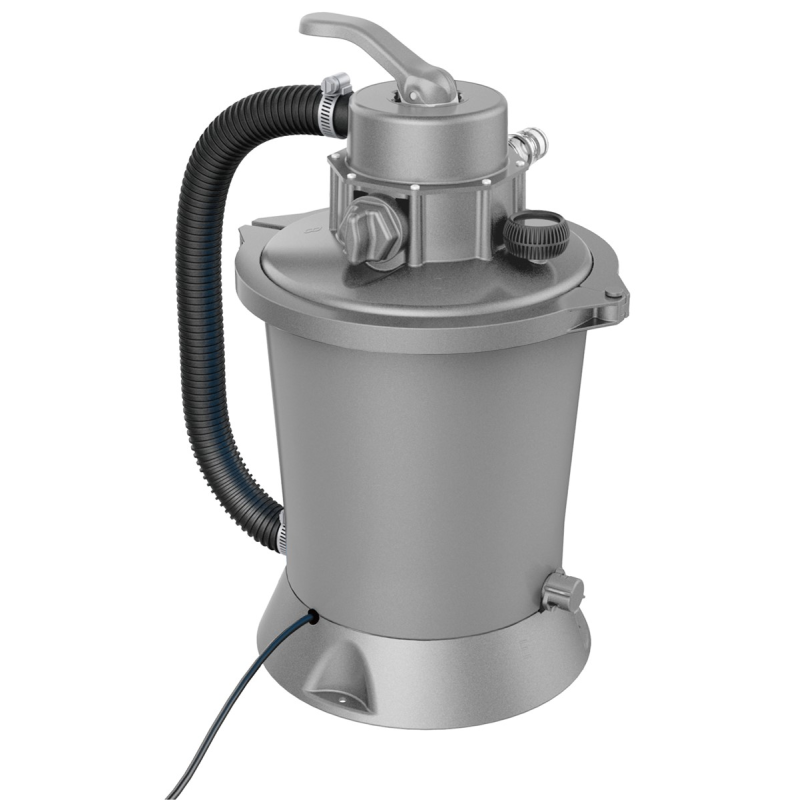

Keep your pool always clean and with crystal-clear water never was tan simple. The filtration unit Poolex Blue Silk 3m³/h combines in a only equipment the functions of filtration and bombeo, offering a solution practical and compact for elevated pools of up to 20 m³.
Keep the water of its clean pool and crystal-clear never has been tan easy. The filtration unit Poolex Blue Silk 3m³/h combines the functions of bombeo and filtration in a compact design and efficient, ideal for elevated pools of up to 20 m³.
The unit combines a pump of 60W and a tank of filtration compact that uses the medio filtering of its election. The Impurities retienen inside of the tanque, while which pre-filter integrated atrapa the particles large, ensuring an optimum performance and extending the service life of the pump.
| features | Detalle |
|---|---|
| Voltage | 220-240V |
| Power | 60W |
| Maximum flow rate | 3,03 m³/h |
| Dimensions of the paquete | 37x37x47 cm |
| Dimensions of the equipment | 37x34x58 cm |
| Weight neto/bruto | 5.5 / 6.7 kg |
| Maximum pressure | < 0.2 bar / 3 psi |
| Area of filtration efective | 0.058 m² / 0.62 ft² |
| Temperature maximum of water | 35°C |
| material filtering recommended | Sand of cuarzo or glass Not. 20 |
| quantity of sand recommended | 10 kg |
| Coeficient of grano homogéneo | > 1.75 |
| Certification | CE |
The Poolex Blue Silk is designed principally for elevated pools of up to 20 m³. For pools more large or buried, can ser necessary a system of greater capacity.
Can use sand of cuarzo, glass or Pureflow depending on its requirements. The glass offers a greater durability and mejor filtration capacity, while which sand is an option economical and efective.
Abra the compartimiento of the pre-filter, retire the particles large acumuled and rinse with clean water.
The Poolex Blue Silk can operar with water of up to 35°C without afectar its performance.
*Note: Read atentaly the Manual before of the installation to ensure a operation suitable and safe.
