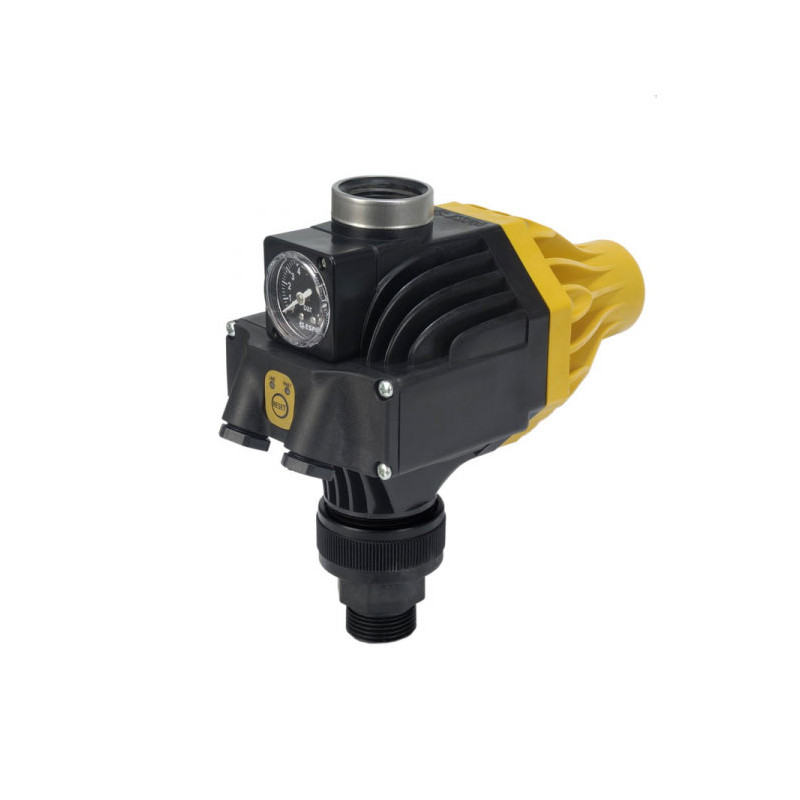

Pressdrive ESPA Pds 05 1x230v 50/hz

Non-return valve, pressure gauge, Pressure Switch and circuit electronic of control. With push-button control of rearme included. Pressure of arranque variable between 1,5-2,5 bar. Ejecution in-line for reduction of losses of carga. Maximum pressure 10 bar. Intensity maximum 12 A. Dispositive of protection contrafuncionamiento in dry included, the system incorporates a system that realiza up to three intentos of rearme automatic espacied temporally.

designed for the supply automatic of water in viviendas. Also prepared to operate with aguas slightly carged of sand. The body principal, support upper and pasacables are manufactured in technopolymer. The Membrane indoor is manufactured in caucho natural. The fixings is in AISI-304 stainless steel. Supplied with Adaptor 3 parts incluído in the body.

TECHNICAL DATA

• Prescontrol single-phase in that inlet and outlet are in range.
• Inlet 1"M. Outlet 1" H.
• Supplied with cable electrical and enchufe schuko.
• incorporate Adaptor 3 parts.
• Maximum pressure 10 bar.
• Voltage: 1x 230V 50/60 Hz.
• Intensity maximum 12 A.
• Pressure of arranque between 1,5-2,5 bar adjustable.
• Pressure diferencial between arranque/paro: upper a 1 bar.
• Non-return valve included
• push-button control of rearme automatic. Autoreset 1', 5', 15' i 1h.
• Dispositive of protection against operation in dry included.
• Incorporates pressure gauge.
